ENGINE OVERHAUL GASKET KIT

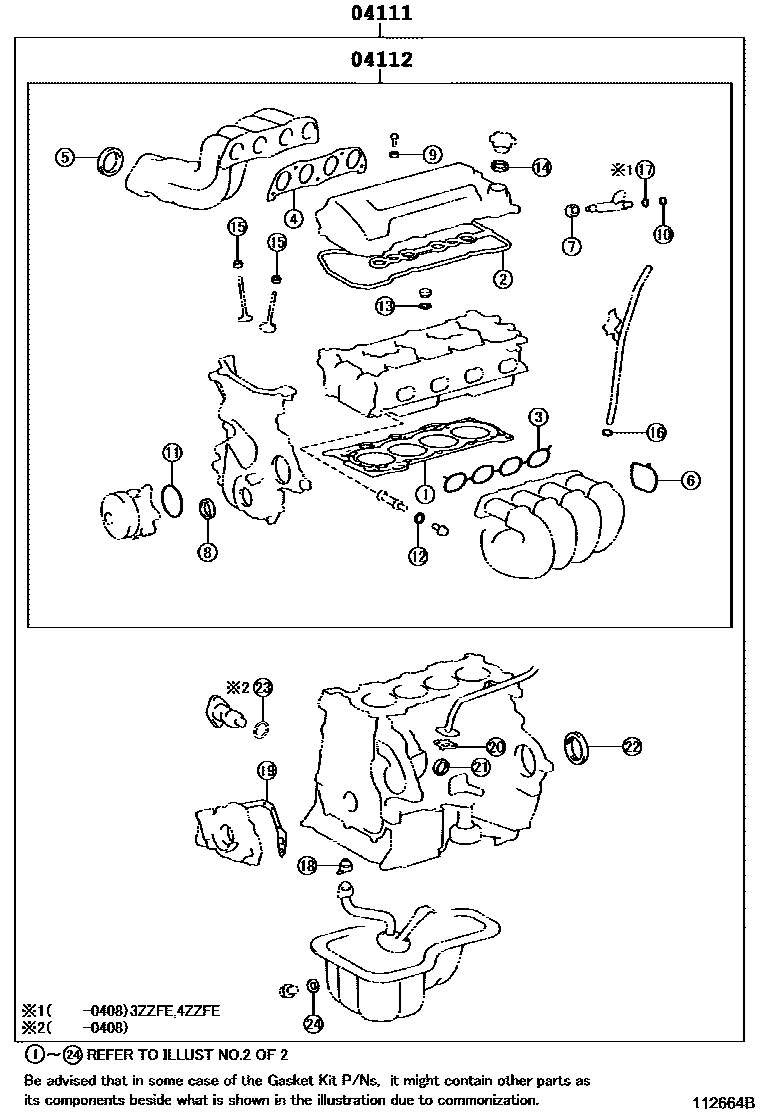

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0D190i200208-200302

main04111-0D191i200302-200408

main04111-0D200i200208-200302

main04111-0D201i200302-200408

main04111-22140i200210-200302

main04111-22141i200302-200408

main04111-22530i200408-200707

main04111-22560i200408-200707

main04111-88010i200408-200707

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0D190i200208-200302

main04112-0D191i200302-200408

main04112-0D200i200208-200302

main04112-0D201i200302-200408

main04112-22140i200210-200302

main04112-22141i200302-200408

main04112-22500i200408-200707

main04112-22530i200408-200707

main04112-88010i200408-200707

2 parts on this diagram · 4 diagrams in section
