HEATING & AIR CONDITIONING - COMPRESSOR

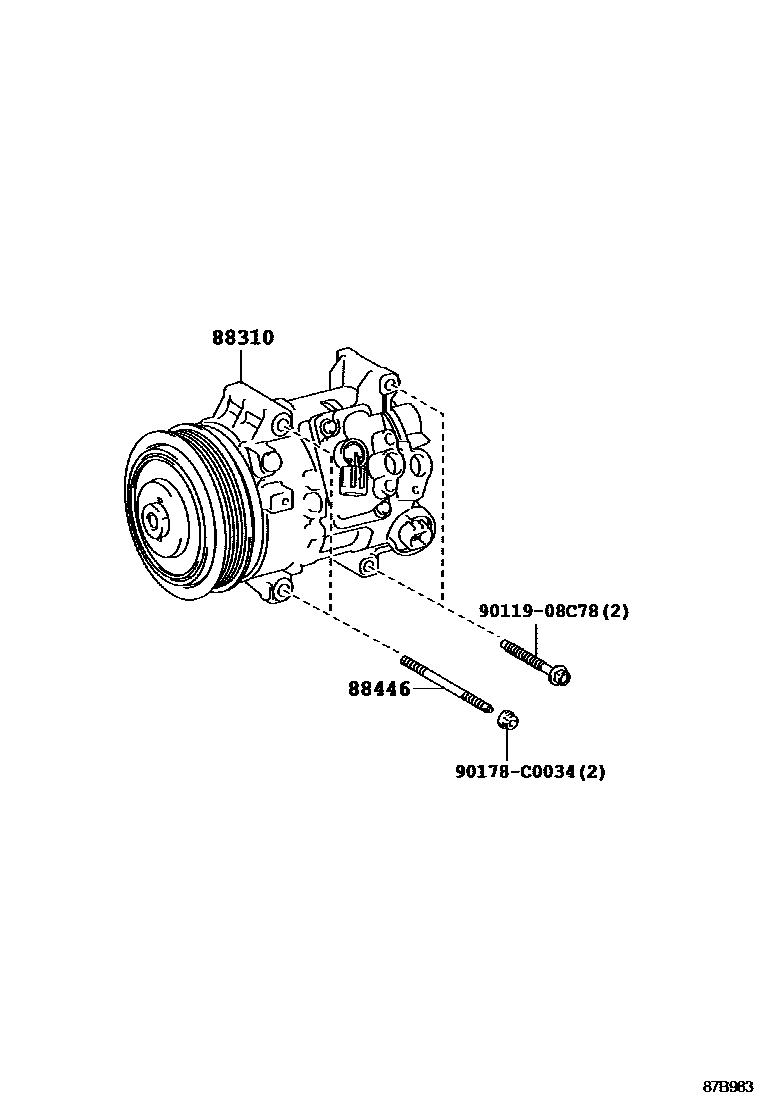

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-0F040i201106-201302

main88310-0F041i201303

88446BOLT, IDLE PULLEY

main88446-60050×2i201106

9011908C78

main90119-08C78

90178C0034

main90178-C0034

4 parts on this diagram · 1 diagram in section
