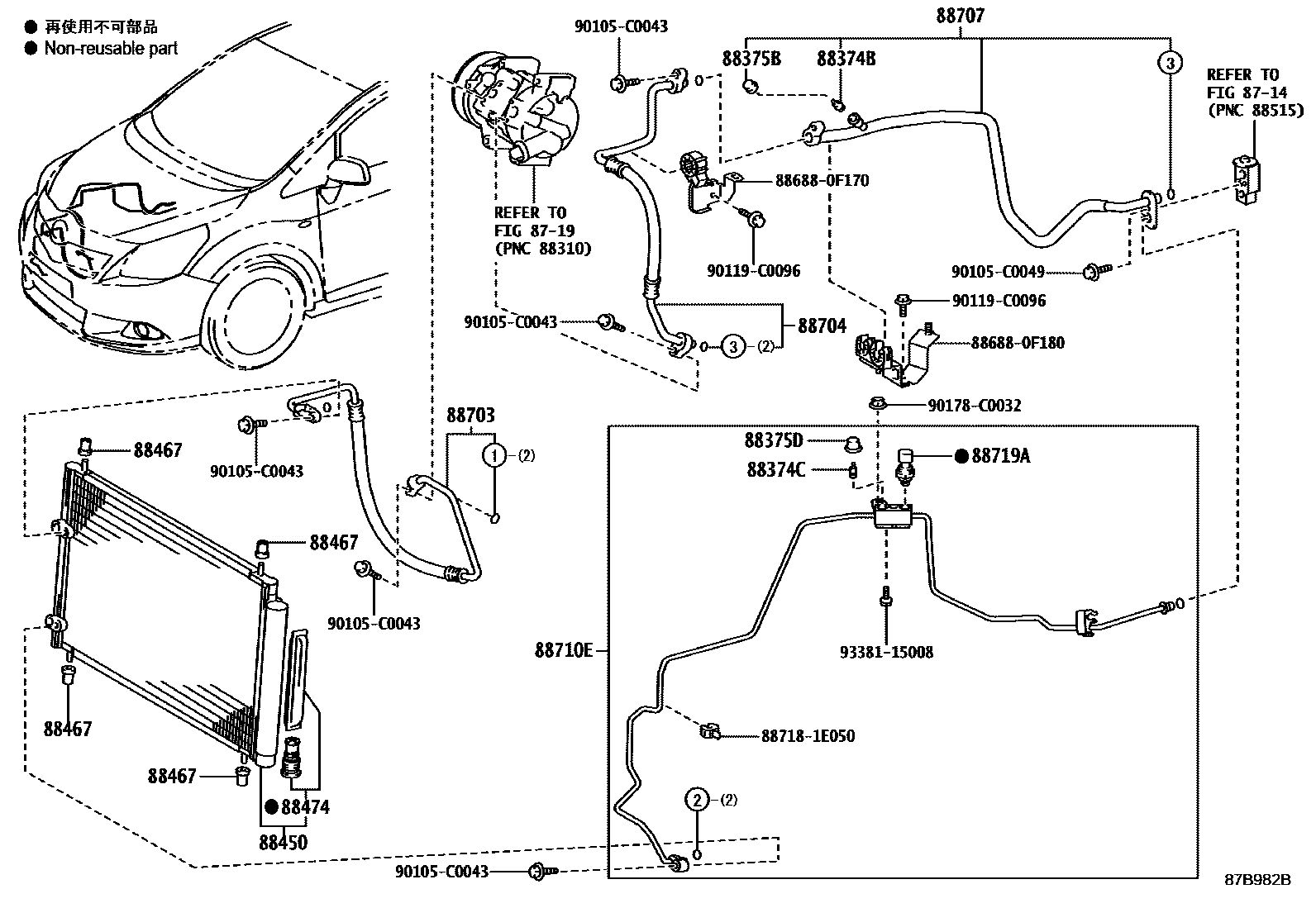

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZGR2#201106

88374CVALVE, SERVICE, NO.2

main88374-30010iZGR2#201106

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZGR2#201106

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZGR2#201106

88450CONDENSER ASSY, W/RECEIVER

main88450-0F160iZGR2#201106-201612

88467CUSHION, COOLER CONDENSER, NO.1

main88467-0F020×4iZGR2#201106-201612

88474DRYER, COOLER

main88474-17010iZGR2#201106

88703HOSE SUB-ASSY, DISCHARGE

main88703-0F080iZGR2#201106

88704HOSE SUB-ASSY, SUCTION

main88704-0F080iZGR2#201106

88707PIPE SUB-ASSY, SUCTION

main88707-0F040iZGR2#201106

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0F070iZGR2#201106

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZGR2#201106

886880F170BRACKET, COOLER DIAPHRAGM

main88688-0F170

886880F180BRACKET, COOLER DIAPHRAGM

main88688-0F180

887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E050

90105C0043

main90105-C0043

90105C0049

main90105-C0049

90119C0096

main90119-C0096

90178C0032

main90178-C0032

9338115008

main93381-15008

22 parts on this diagram · 2 diagrams in section
