HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTORL PANEL---MANUAL 0002 1CONTROL PANEL---AUTO 0003 1AIR DUCT 0004 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

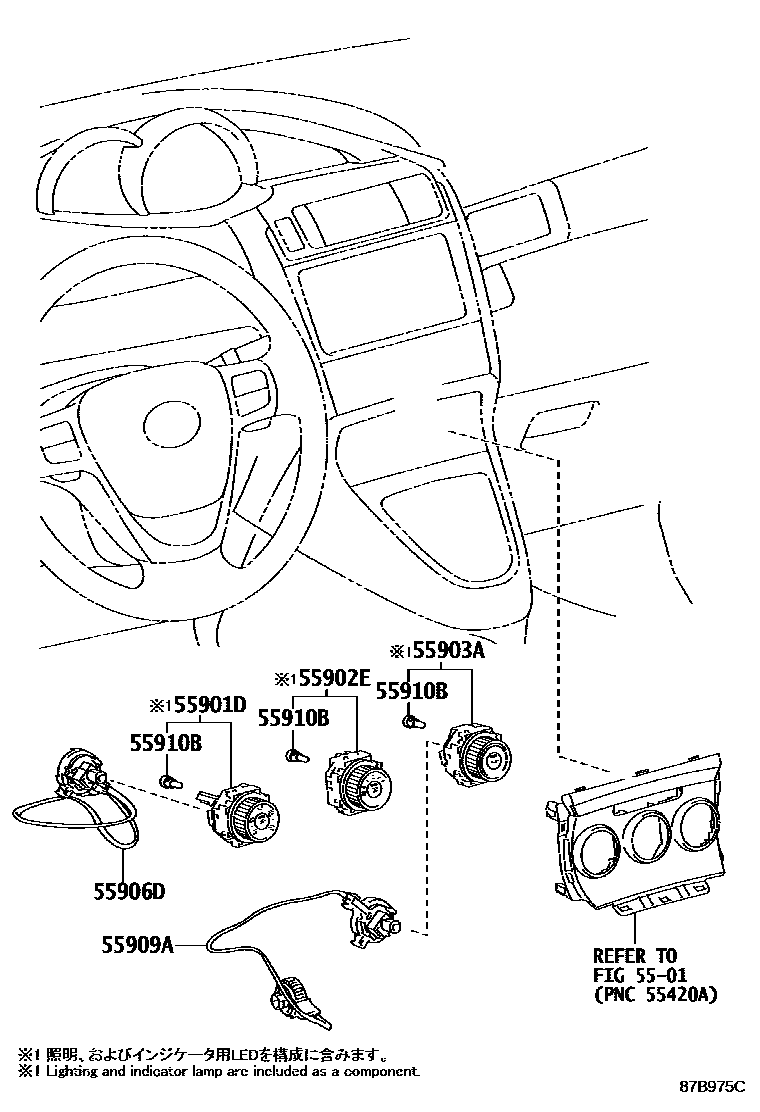

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-02041iZGR20,21..E201106

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-02050iZGR20,21..E201106

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-02091supersedes 55903-0F050iZGR20,21..E201106-201309

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010iZGR20,21..E201106-201612

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iZGR20,21..E201106-201612

55910BBULB, HEATER CONTROL

main90010-01122iZGR20,21..E201106

7 parts on this diagram · 4 diagrams in section
