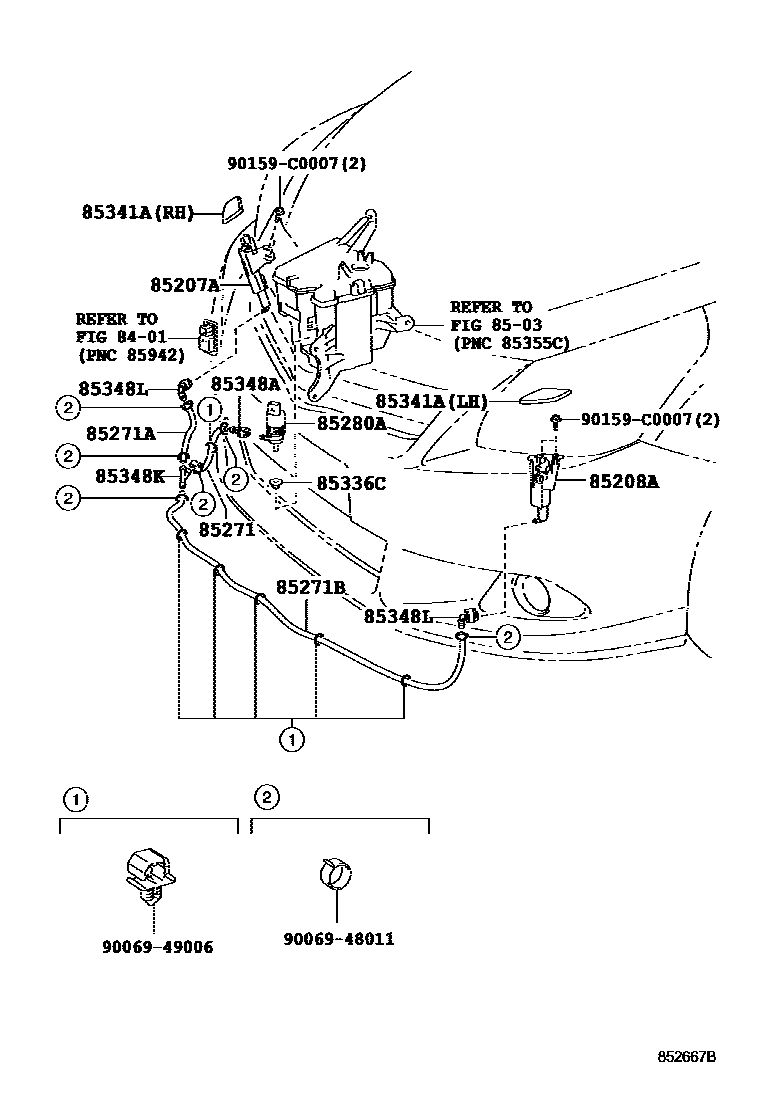

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
8503WINDSHIELD WASHER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=256
85271AHOSE, HEADLAMP CLEANER, NO.2
L=170
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1473
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336CPACKING, HEADLAMP CLEANER MOTOR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE PEARL CS.,070,RH
SILVER ME.,1D4,RH
GRAY ME.,1G3,RH
BLACK,202,RH
ATTITUDE BLACK MC.,218,RH
RED M.M.,3R3,RH
BEIGE ME.,4T8,RH
DK.BLUE MC.,8S6,RH
WHITE PEARL CS.,070,LH
SILVER ME.,1D4,LH
GRAY ME.,1G3,LH
BLACK,202,LH
ATTITUDE BLACK MC.,218,LH
RED M.M.,3R3,LH
BEIGE ME.,4T8,LH
DK.BLUE MC.,8S6,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
9006948011
main90069-48011
9006949006
main90069-49006
90159C0007
main90159-C0007
16 parts on this diagram · 1 diagram in section
