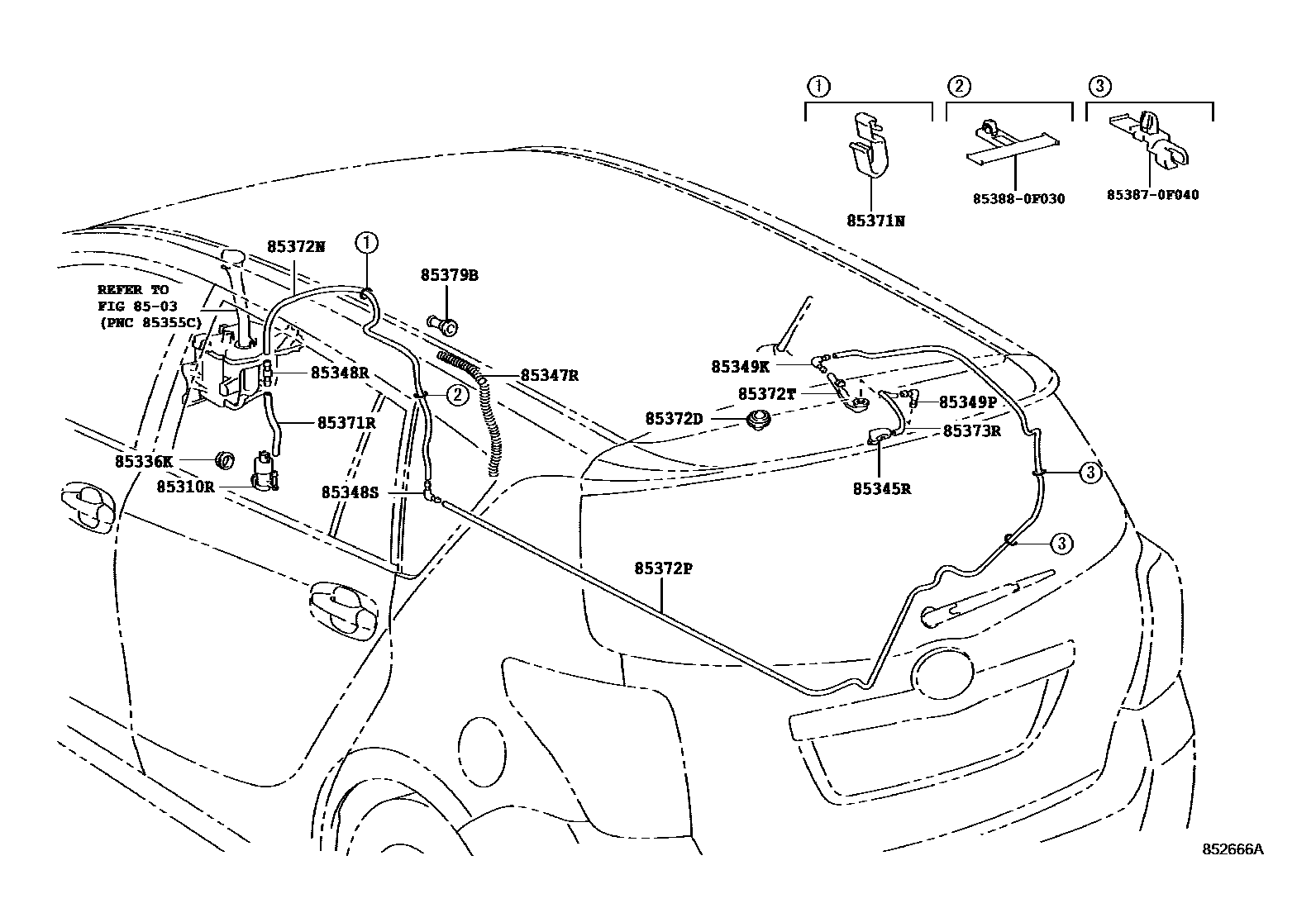

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85310RMOTOR ASSY, REAR WASHER

main85330-0F020iZGR2#201106-201611

85336KPROTECTOR, WASHER JAR

main85365-0F020iZGR21,22..V201106-201205

85345RNOZZLE, REAR WASHER

main85391-64010iZGR2#201106

85347RSPRING

main90069-51008iZGR2#201106

85348RJOINT, REAR WASHER HOSE, NO.1

main85357-0F020iZGR2#201106

85348SJOINT, REAR WASHER ELBOW, NO.1

main85375-0F030iZGR2#201106

85349KJOINT, REAR WASHER ELBOW, NO.2

main85375-0F030iZGR2#201106-201404

85349PJOINT, REAR WASHER ELBOW, NO.3

main85377-0E160iZGR2#201106

85371NCLAMP, REAR WASHER HOSE

main53614-0F010iZGR2#201106

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-46043iZGR2#201106-201205

L=120

85372DGROMMET, REAR WASHER HOSE

main85373-0F030iZGR2#201106

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46046iZGR2#201106

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-46047iZGR2#201106

L=3755

85372TGROMMET, WASHER

main85373-0F020iZGR2#201106

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iZGR2#201106

L=1000(*H,L=235)

85379BGROMMET, WASHER, A

main85379-0F030iZGR2#201106

853870F040CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-0F040

853880F030CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-0F030

19 parts on this diagram · 1 diagram in section
