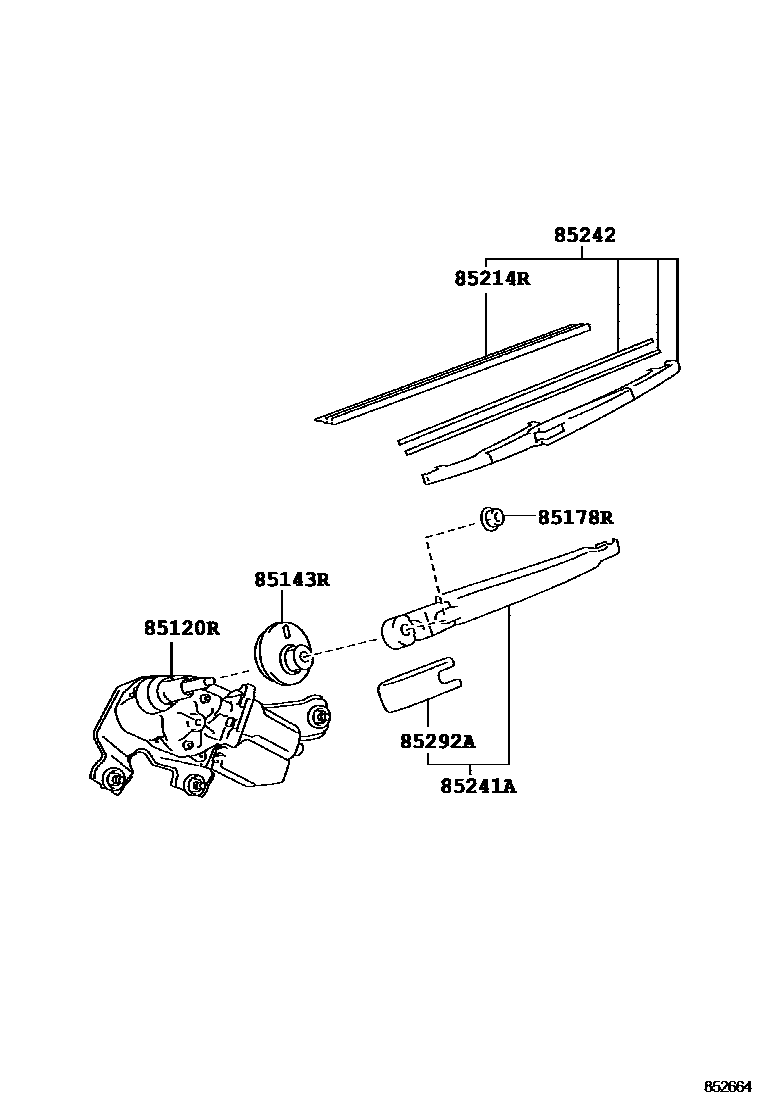

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-0F040iZGR2#201308

main85130-64010iZGR2#201106-201307

85143RGROMMET, REAR WIPER MOTOR

main85143-64010iZGR2#201106

sub85143-28070

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZGR2#201106

85214RRUBBER, REAR WIPER

main85214-42040iZGR2#201106

85241AARM, REAR WIPER

main85241-0E040iZGR2#201106

85242BLADE, RR WIPER

main85242-0F030iZGR2#201106

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iZGR2#201106

7 parts on this diagram · 1 diagram in section
