WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

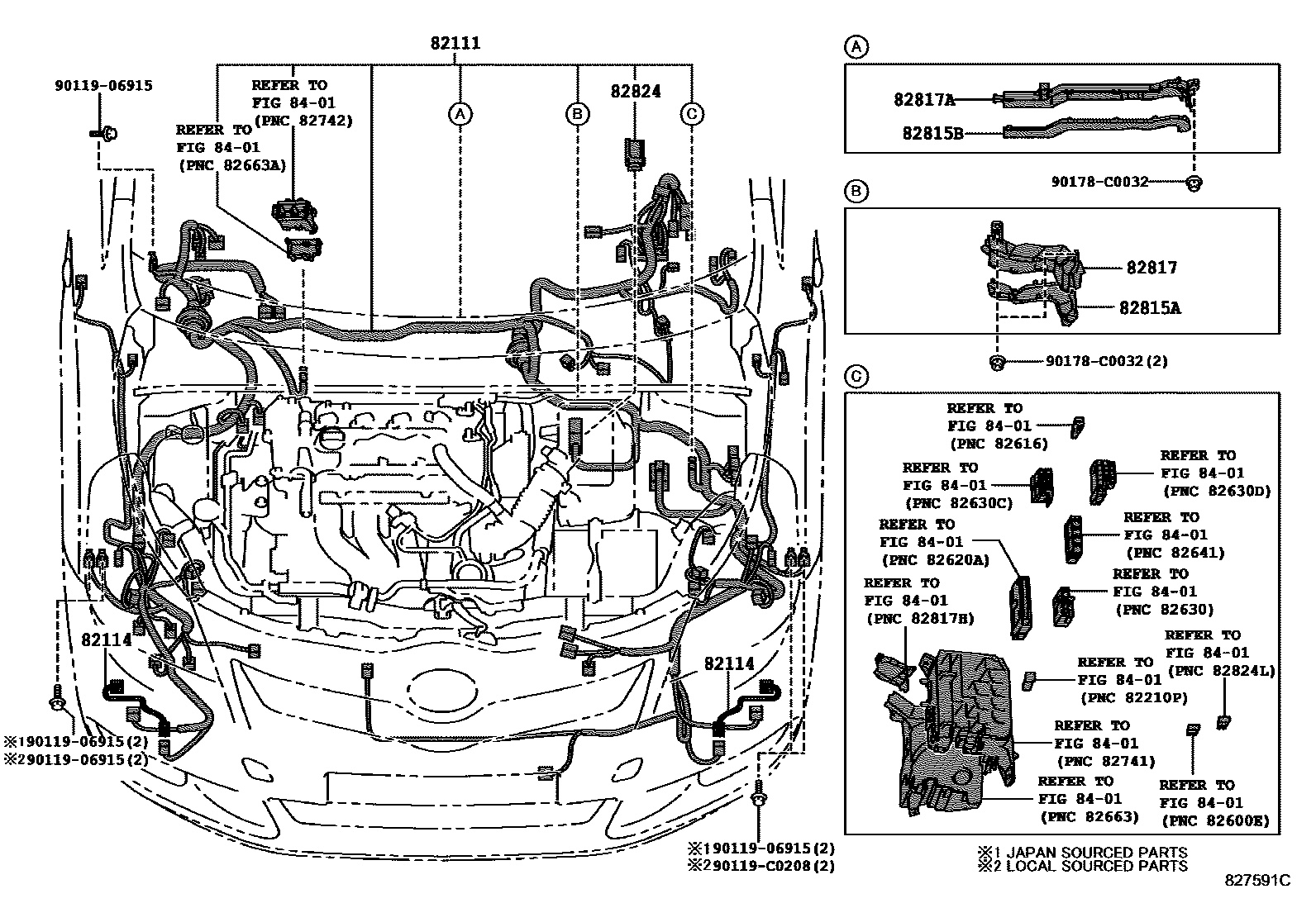

82111WIRE, ENGINE ROOM MAIN

main82111-0FB20iZGR21,22..CVFC..G201106-201206

main82111-0FB21iZGR21,22..CVFC..G201206-201309

main82111-0FB30iZGR21..CVFC..E201106-201204

main82111-0FB31iZGR21..CVFC..E201204-201309

main82111-0FB40iZGR21,22..V201106-201206

main82111-0FB41iZGR21,22..V201206-201309

main82111-0FB50iZGR20,21..6F..E201106-201206

main82111-0FB51iZGR20,21..6F..E201206-201309

main82111-0FB60iZGR20,21..6F..G201106-201206

main82111-0FB61iZGR20,21..6F..G201206-201309

main82111-0FB32supersedes 82111-0FL90iZGR21..CVFC..E201309

HEATER-WITH(PTC HEATER)

main82111-0FB42supersedes 82111-0FM00iZGR21..V201309

HEATER-WITH(PTC HEATER)

main82111-0FB52supersedes 82111-0FM10iZGR2#..6F..E201309

HEATER-WITH(PTC HEATER)

main82111-0FB62supersedes 82111-0FM20iZGR2#..6F..G201309

HEATER-WITH(PTC HEATER)

main82111-0FL70supersedes 82111-0FB22iZGR21..CVFC..G201309

HEATER-WITH(PTC HEATER)&SEAT COVER MATERIAL-NATURAL LEATHER

main82111-0FL80supersedes 82111-0FB22iZGR21..CVFC..G201309

HEATER-WITH(PTC HEATER)

main82111-0FM30supersedes 82111-0FB22iZGR21..CVFC..G201309

SEAT COVER MATERIAL-NATURAL LEATHER

82114WIRE, ENGINE ROOM, NO.4

main82114-0F030×2iZGR22;ZGR21..V201106

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12130iZGR2#201106

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12140iZGR2#201106

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12A90iZGR2#201106

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B00iZGR2#201106

82824CONNECTOR, WIRING HARNESS

main90980-12461iZGR2#201106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

90119C0208

main90119-C0208

90178C0032

main90178-C0032

11 parts on this diagram · 12 diagrams in section
