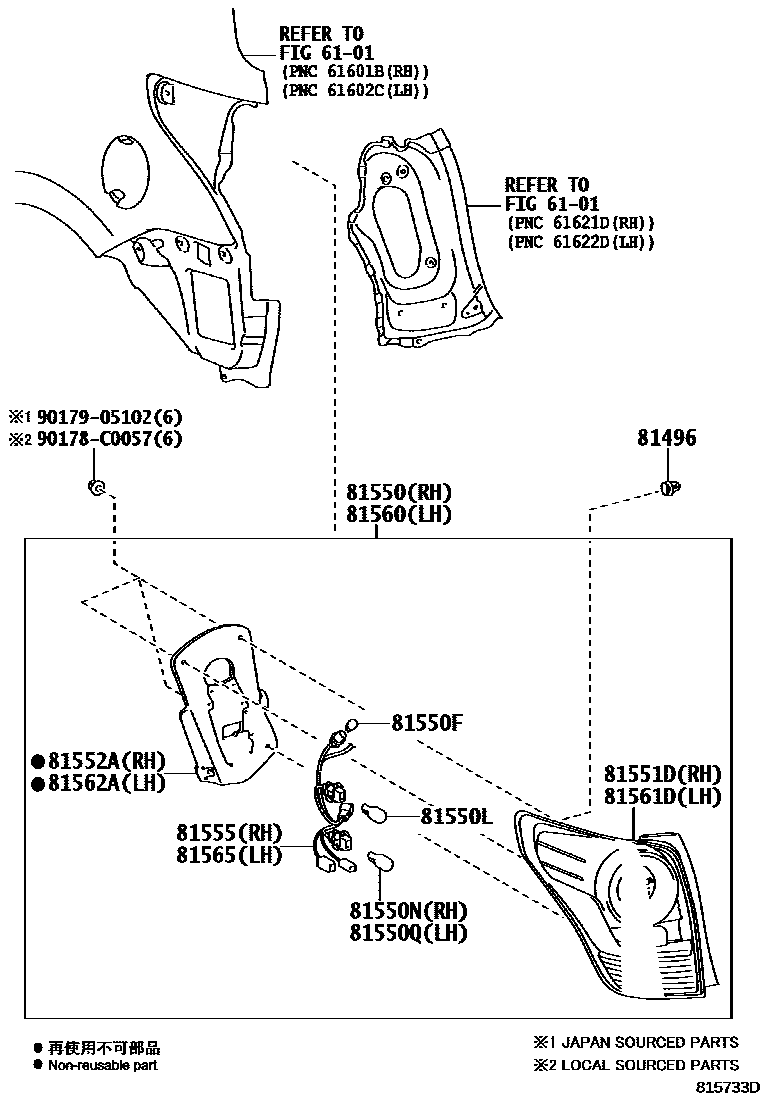

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-06010×2iZGR2#201111

main81496-60010×2iZGR2#201106-201110

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0F110iZGR2#201106-201408

main81550-0F111iZGR2#201409

81550FBULB, TAILLAMP

main99132-12050×2iZGR2#201106

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iZGR2#201106

81550NBULB, BACK UP LAMP

main90981-13043iZGR2#201106

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iZGR2#201106

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0F110iZGR2#201106-201409

main81551-0F111iZGR2#201409

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-0F110iZGR2#201106-201409

main81554-0F110iZGR2#201409

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0F110iZGR2#201106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0F110iZGR2#201106-201408

main81560-0F111iZGR2#201409

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0F110iZGR2#201106-201409

main81561-0F111iZGR2#201409

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-0F110iZGR2#201106-201409

main81554-0F110iZGR2#201409

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0F110iZGR2#201106

90178C0057

main90178-C0057

9017905102

main90179-05102

16 parts on this diagram · 1 diagram in section
