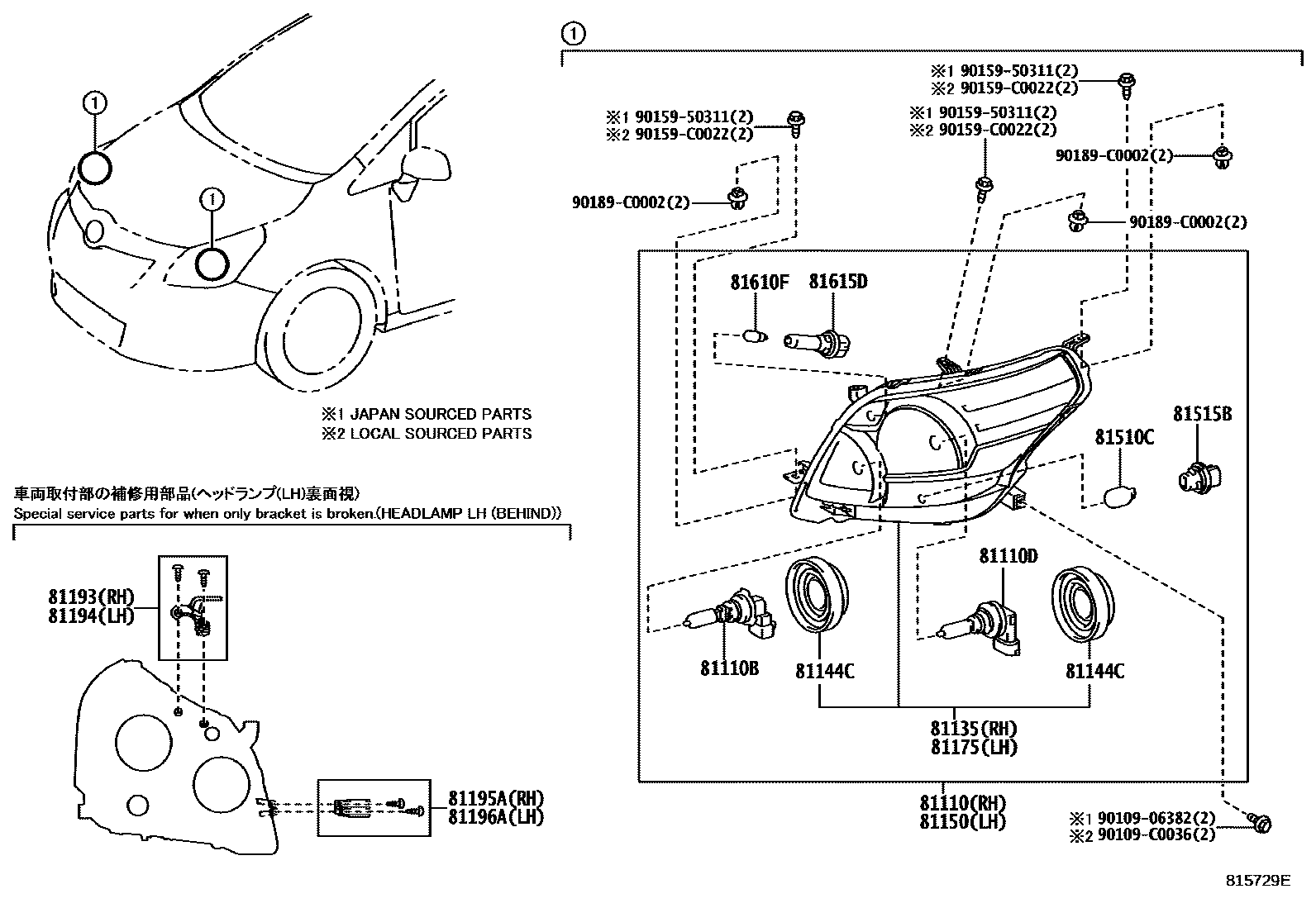

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0F130iZGR2#..E,G201106-201507

main81110-0F131iZGR2#..E,G201508

main81110-0F140iZGR21,22..V201106

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZGR2#201106

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iZGR2#..E,G201106

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0F130iZGR2#..E,G201106-201508

main81130-0F131iZGR2#..E,G201508

main81145-0F140iZGR21,22..V201106

81144CCOVER, HEADLAMP SOCKET

main90075-65006×4iZGR2#..E,G; ZGR21,22..V201106

81150HEADLAMP ASSY, LH

main81150-0F130iZGR2#..E,G201106-201507

main81150-0F131iZGR2#..E,G201508

main81150-0F140iZGR21,22..V201106

81175UNIT ASSY, HEADLAMP, LH

main81170-0F130iZGR2#..E,G201106-201508

main81170-0F131iZGR2#..E,G201508

main81185-0F140iZGR21,22..V201106

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0F030iZGR2#201106

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0F030iZGR2#201106

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-0F030iZGR2#201106

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-0F030iZGR2#201106

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZGR2#201106

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZGR2#201106

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZGR2#201106

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iZGR2#201106

9010906382

main90109-06382

90109C0036

main90109-C0036

9015950311

main90159-50311

90159C0022

main90159-C0022

90189C0002

main90189-C0002

20 parts on this diagram · 2 diagrams in section
