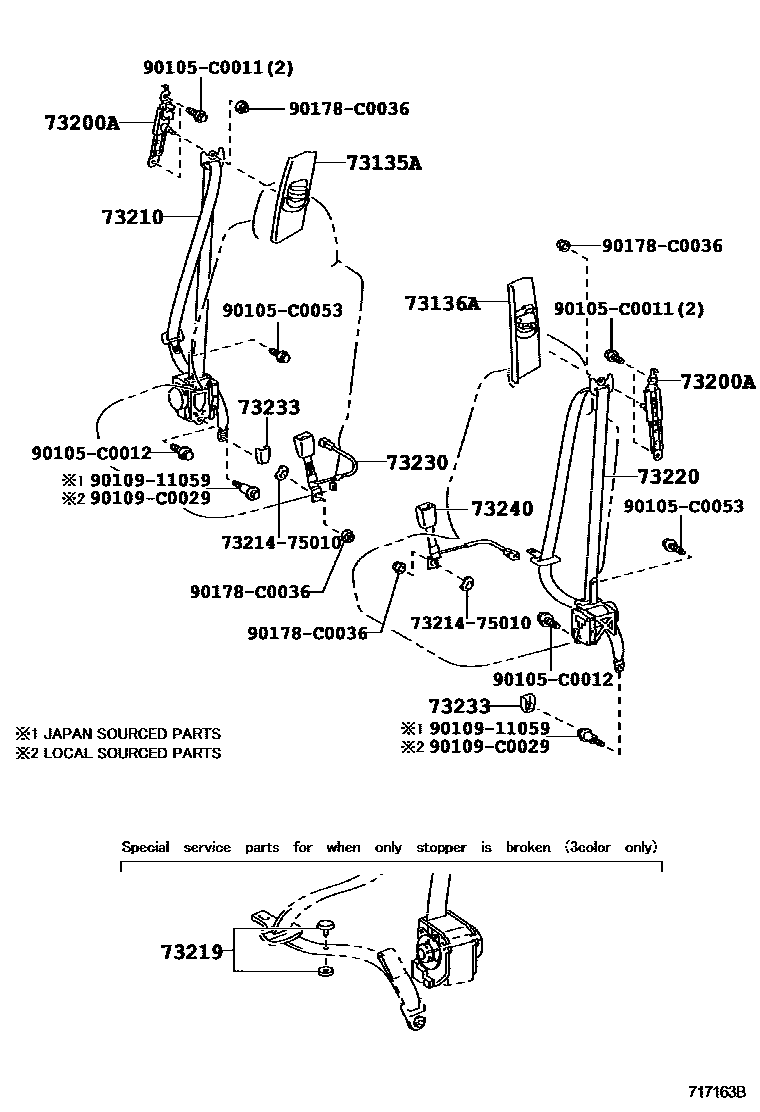

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-0F020-E0iZGR2#201106-201612

GREGE,TRIM4#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-0F020-E0iZGR2#201106-201612

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06080×2iZGR2#201106-201503

main73200-0G020×2iZGR2#201503

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0F060-E0iZGR2#201106-201612

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iZGR2#201106

BLACK

main73219-33020iZGR2#201106

GRAY

main73219-33030iZGR2#201106

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0F060-E0iZGR2#201106-201612

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0F070-E0iZGR2#201106-201612

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0F010-E1×2iZGR2#201106-201612

ASH BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0F050-E0iZGR2#..E,G201106-201612

GREGE,TRIM4#

main73230-0F060-E0iZGR21,22..CVFC..G; ZGR21,22..V201106-201612

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

9010911059

main90109-11059

90109C0029

main90109-C0029

90178C0036

main90178-C0036

16 parts on this diagram · 2 diagrams in section
