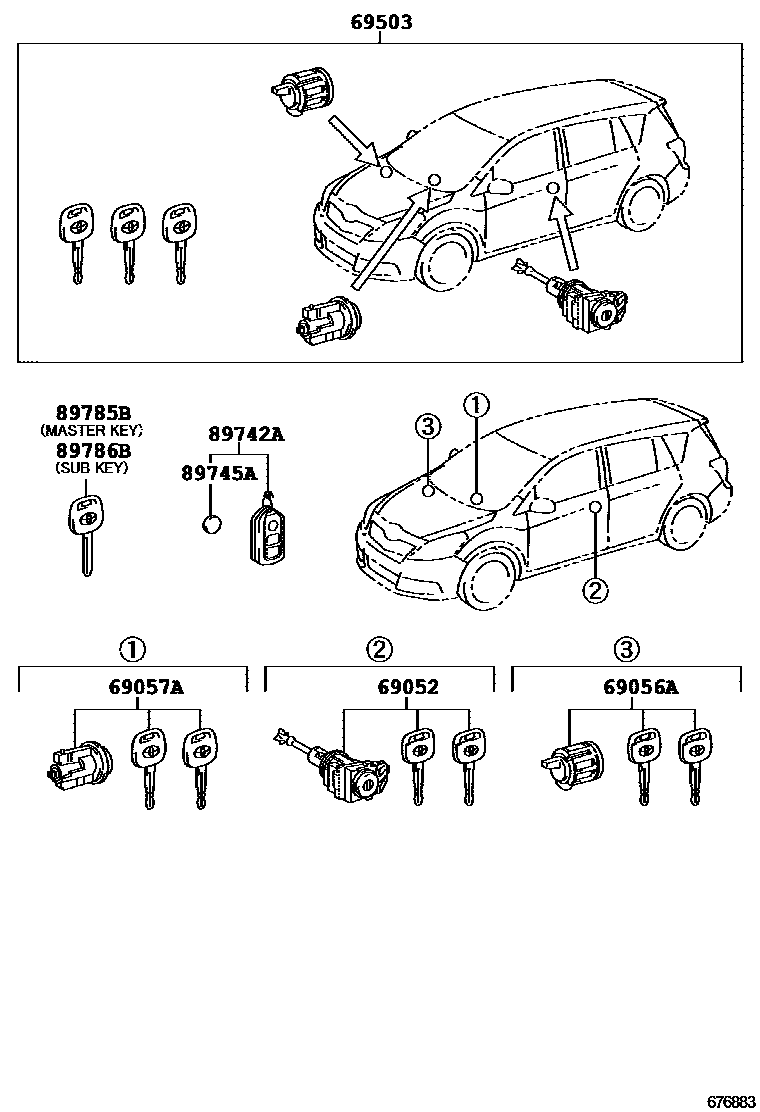

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0F040iZGR2#..E,G201106

main69052-0F050iZGR21,22..V201106-201309

main69052-0F070iZGR21..CVFC..G201309

SEAT COVER MATERIAL-NATURAL LEATHER

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0F030iZGR21,22..V201106-201309

main69056-0F040iZGR21..CVFC..G201309

SEAT COVER MATERIAL-NATURAL LEATHER

main69056-0R020iZGR2#..E,G201106

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0F030iZGR2#..E,G201106

69503CYLINDER SET, LOCK

main69005-0F080iZGR2#..E,G201106

main69005-0F090iZGR21,22..V201106-201309

main69005-0F160iZGR21..V201309

SEAT COVER MATERIAL-NATURAL LEATHER

89742ATRANSMITTER, DOOR CONTROL

main89742-0D010iZGR21..CVFC..G201106-201206

SEAT COVER MATERIAL-NATURAL LEATHER

sub89742-0D011

main89742-0D011iZGR2#..E,G201207

SEAT COVER MATERIAL-NATURAL LEATHER

89745ABATTERY, TRANSMITTER

main89745-45010iZGR21..CVFC..G201207

SEAT COVER MATERIAL-NATURAL LEATHER

sub89745-50020

main89745-50020iZGR21..CVFC..G201106-201207

SEAT COVER MATERIAL-NATURAL LEATHER

main89745-52020iZGR21,22..V201106-201309

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60210iZGR2#..E,G201106

SEAT COVER MATERIAL-NATURAL LEATHER

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60220iZGR2#..E,G201106

BLANK KEY

main89786-60220iZGR2#..E,G201106

BLANK KEY,SEAT COVER MATERIAL-NATURAL LEATHER

8 parts on this diagram · 3 diagrams in section
