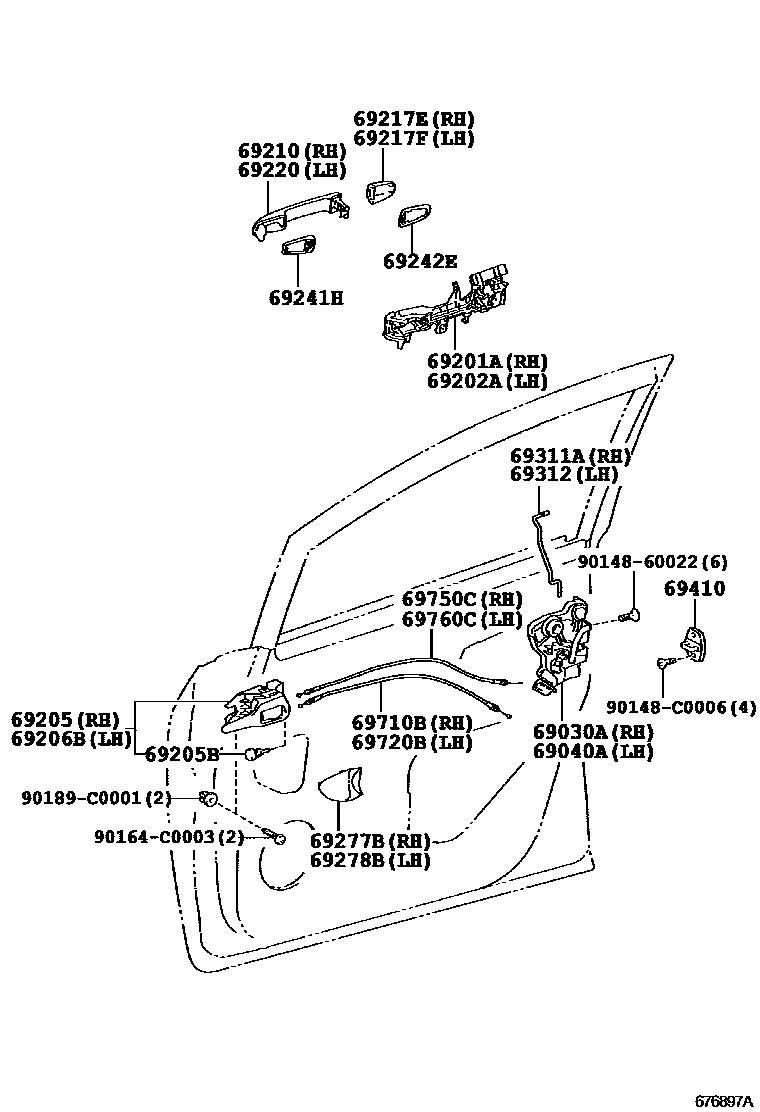

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-06221iZGR2#201106

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-06191iZGR2#201106

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0N030iZGR2#201106

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0N030iZGR2#201106

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02140-B2iZGR2#201106-201612

ORNAMENT SILVER,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZGR2#201106

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02140-B2iZGR2#201106-201612

ORNAMENT SILVER,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0F010-A0iZGR21,22..V201106-201612

WHITE PEARL CS.,070

main69210-0F010-B0iZGR21,22..V201106-201612

SILVER ME.,1D4

main69210-0F010-B1iZGR21,22..V201106-201612

GRAY ME.,1G3

main69210-0F010-C0iZGR21,22..V201106-201309

BLACK,202

main69210-0F010-C1iZGR21..V201309-201612

ATTITUDE BLACK MC.,218

main69210-0F010-C1iZGR21..V201309-201612

SEAT COVER MATERIAL-NATURAL LEATHER,ATTITUDE BLACK MC.,218

main69210-0F010-D0iZGR21..V201309-201612

RED M.M.,3R3

main69210-0F010-D0iZGR21..CVFC..G201309-201612

SEAT COVER MATERIAL-NATURAL LEATHER,RED M.M.,3R3

main69210-0F010-E0iZGR21,22..V201106-201612

BEIGE ME.,4T8

main69210-0F010-J0iZGR21,22..V201106-201304

DK.BLUE MC.,8S6

main69210-0P020-A1iZGR2#..E,G201106-201612

WHITE PEARL CS.,070

main69210-0P020-B2iZGR2#..E,G201106-201612

SILVER ME.,1D4

main69210-0P020-B3iZGR2#..E,G201106-201612

GRAY ME.,1G3

main69210-0P020-C0iZGR2#..E,G201106-201309

BLACK,202

main69210-0P020-C1iZGR2#..E,G201309-201612

ATTITUDE BLACK MC.,218

main69210-0P020-D1iZGR2#..E,G201309-201612

RED M.M.,3R3

main69210-0P020-E0iZGR2#..E,G201106-201612

BEIGE ME.,4T8

main69210-0P020-J0iZGR2#..E,G201106-201304

DK.BLUE MC.,8S6

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-0N030-A1iZGR2#201106-201612

WHITE PEARL CS.,070

main69250-0N030-B3iZGR2#201106-201612

SILVER ME.,1D4

main69250-0N030-B4iZGR2#201106-201612

GRAY ME.,1G3

main69250-0N030-C0iZGR2#201106-201309

BLACK,202

main69250-0N030-C1iZGR2#201309-201612

ATTITUDE BLACK MC.,218

main69250-0N030-D2iZGR2#201309-201612

RED M.M.,3R3

main69250-0N030-E0iZGR2#201106-201612

BEIGE ME.,4T8

main69250-0N030-J0iZGR2#201106-201304

DK.BLUE MC.,8S6

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-0N040-A1iZGR2#201106-201612

WHITE PEARL CS.,070

main69250-0N040-B3iZGR2#201106-201612

SILVER ME.,1D4

main69250-0N040-B4iZGR2#201106-201612

GRAY ME.,1G3

main69250-0N040-C0iZGR2#201106-201309

BLACK,202

main69250-0N040-C1iZGR2#201309-201612

ATTITUDE BLACK MC.,218

main69250-0N040-D2iZGR2#201309-201612

RED M.M.,3R3

main69250-0N040-E0iZGR2#201106-201612

BEIGE ME.,4T8

main69250-0N040-J0iZGR2#201106-201304

DK.BLUE MC.,8S6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0F010-A0iZGR21,22..V201106-201612

WHITE PEARL CS.,070

main69210-0F010-B0iZGR21,22..V201106-201612

SILVER ME.,1D4

main69210-0F010-B1iZGR21,22..V201106-201612

GRAY ME.,1G3

main69210-0F010-C0iZGR21,22..V201106-201309

BLACK,202

main69210-0F010-C1iZGR21..V201309-201612

SEAT COVER MATERIAL-NATURAL LEATHER,ATTITUDE BLACK MC.,218

main69210-0F010-C1iZGR21..CVFC..G201309-201612

ATTITUDE BLACK MC.,218

main69210-0F010-D0iZGR21..CVFC..G201309-201612

SEAT COVER MATERIAL-NATURAL LEATHER,RED M.M.,3R3

main69210-0F010-D0iZGR21..V201309-201612

RED M.M.,3R3

main69210-0F010-E0iZGR21,22..V201106-201612

BEIGE ME.,4T8

main69210-0F010-J0iZGR21,22..V201106-201304

DK.BLUE MC.,8S6

main69210-0P020-A1iZGR2#..E,G201106-201612

WHITE PEARL CS.,070

main69210-0P020-B2iZGR2#..E,G201106-201612

SILVER ME.,1D4

main69210-0P020-B3iZGR2#..E,G201106-201612

GRAY ME.,1G3

main69210-0P020-C0iZGR2#..E,G201106-201309

BLACK,202

main69210-0P020-C1iZGR2#..E,G201309-201612

ATTITUDE BLACK MC.,218

main69210-0P020-D1iZGR2#..E,G201309-201612

RED M.M.,3R3

main69210-0P020-E0iZGR2#..E,G201106-201612

BEIGE ME.,4T8

main69210-0P020-J0iZGR2#..E,G201106-201304

DK.BLUE MC.,8S6

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30110iZGR2#201106-201108

sub69241-30111

main69241-30111iZGR2#201108

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30090iZGR2#201106-201108

sub69242-30091

main69242-47020iZGR2#201108

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-0F020-E0iZGR2#201106-201612

ASH BROWN,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-0F020-E0iZGR2#201106-201612

ASH BROWN,TRIM4#

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0F020iZGR2#201106

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0F020iZGR2#201106

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0P010iZGR2#201106

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0F020iZGR2#201106

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0F020iZGR2#201106

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0F020iZGR2#201106

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0F020iZGR2#201106

9014860022

main90148-60022

90148C0006

main90148-C0006

90164C0003

main90164-C0003

90189C0001

main90189-C0001

26 parts on this diagram · 1 diagram in section
