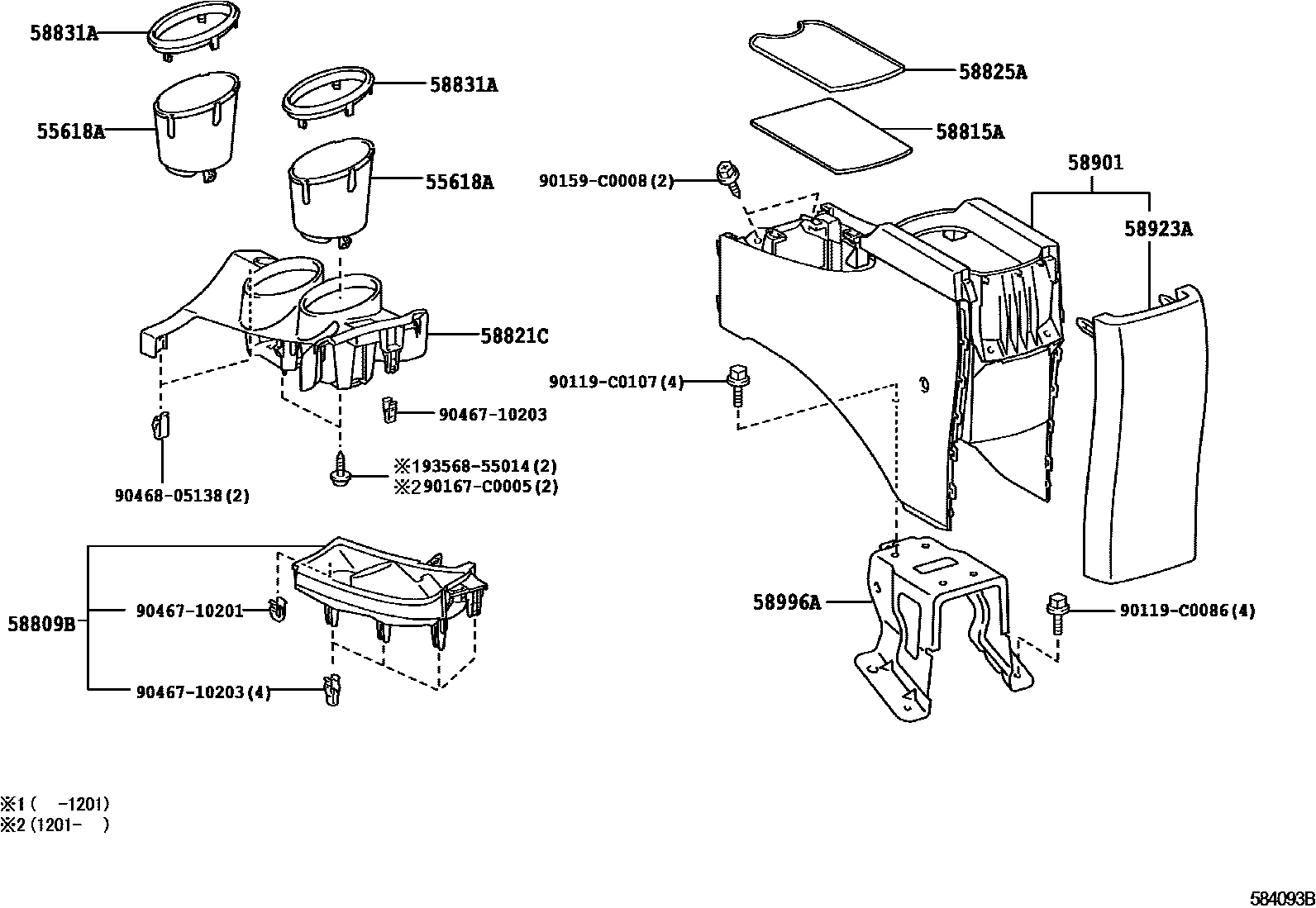

CONSOLE BOX & BRACKET

0001 1 0003 1

55618AHOLDER, CONSOLE BOX CUP

main55618-0F040-E0iZGR2#201106-201612

GREGE,TRIM4#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-0F030-E0iZGR2#201106-201612

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-0F040iZGR2#201106

58821CPANEL, CONSOLE, UPPER

main58821-0F060-E0iZGR2#201106-201612

GREGE,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-0F020-E0iZGR2#201106-201612

GREGE,TRIM4#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-0F020iZGR2#201106

58901PANEL SUB-ASSY, BOX

main58901-0F080-E0iZGR2#..G201106-201309

GREGE,TRIM4#

sub58901-0F081

main58901-0F090-E0iZGR21,22..V201106-201512

GREGE,TRIM4#

sub58901-0F091

main58901-0F091-E0iZGR2#201601-201612

GREGE,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-0F040-E0iZGR2#..G201106-201309

GREGE,TRIM4#

sub58923-0F041

main58923-0F050-E0iZGR21,22..V201106-201204

GREGE,TRIM4#

sub58923-0F052

main58923-0F060-E0iZGR2#..G,V201204-201512

GREGE,TRIM4#

sub58923-0F061

main58923-0F061-E0iZGR2#201601-201612

GREGE,TRIM4#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0F040iZGR2#201106

90119C0086

main90119-C0086

90119C0107

main90119-C0107

90159C0008

main90159-C0008

90167C0005

main90167-C0005

9046710201

main90467-10201

9046710203

main90467-10203

9046805138

main90468-05138

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
