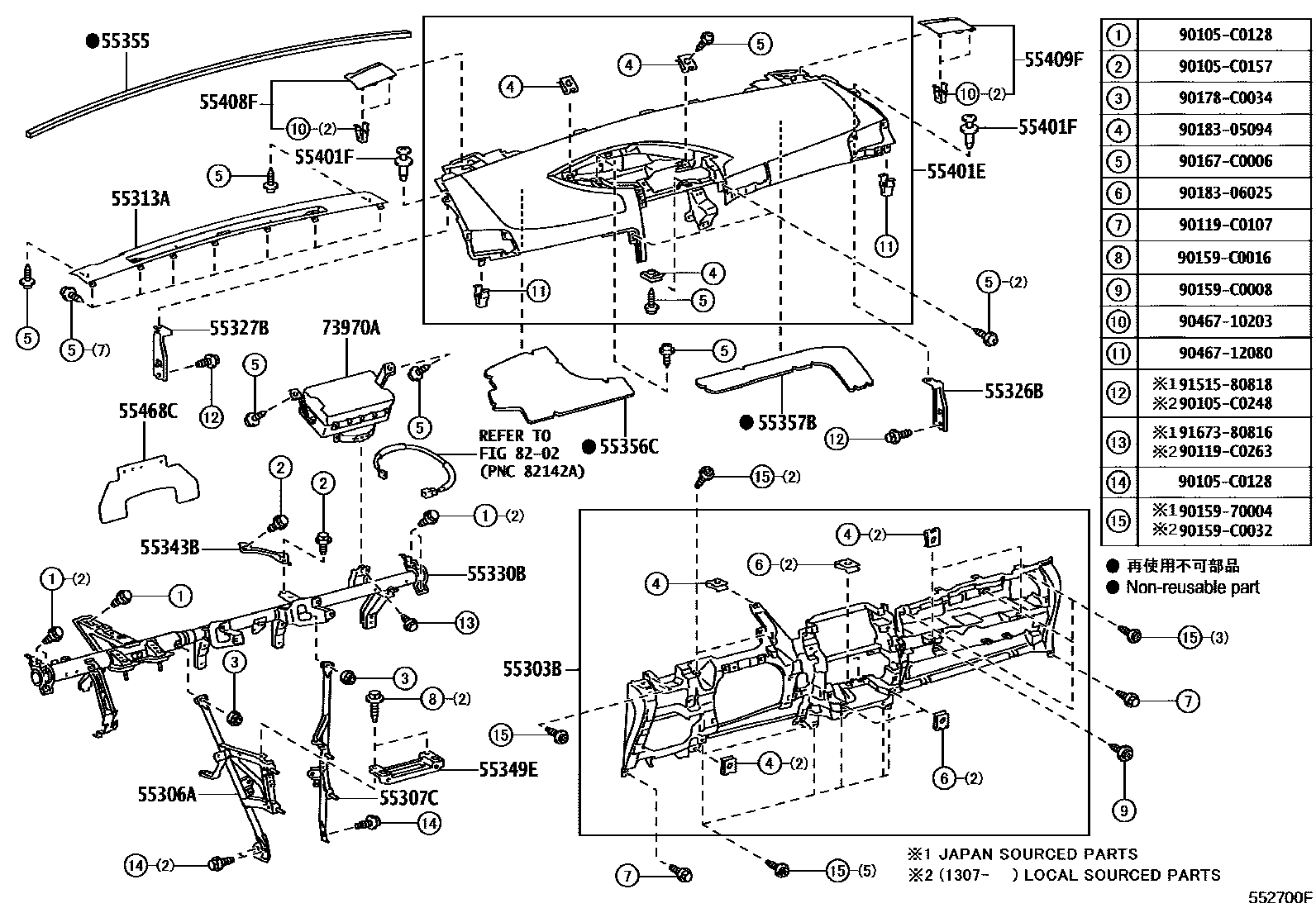

INSTRUMENT PANEL & GLOVE COMPARTMENT
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
GREGE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55313APANEL, INSTRUMENT MAIN
ASH BROWN,TRIM4#
55326BSTAY, INSTRUMENT PANEL, RH
55327BSTAY, INSTRUMENT PANEL, LH
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349EBRACKET, INSTRUMENT PANEL BRACE MOUNTING, LOWER
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
ASH BROWN,TRIM4#
55401FCLIP(FOR SAFETY PAD)
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
ASH BROWN,TRIM4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
ASH BROWN,TRIM4#
55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
8202
90105C0128
main90105-C0128
90105C0157
main90105-C0157
90105C0248
main90105-C0248
90119C0107
main90119-C0107
90119C0263
main90119-C0263
9015970004
main90159-70004
90159C0008
main90159-C0008
90159C0016
main90159-C0016
90159C0032
main90159-C0032
90167C0006
main90167-C0006
90178C0034
main90178-C0034
9018305094
main90183-05094
9018306025
main90183-06025
9046710203
main90467-10203
9046712080
main90467-12080
9151580818
main91515-80818
9167380816
main91673-80816
36 parts on this diagram · 4 diagrams in section
