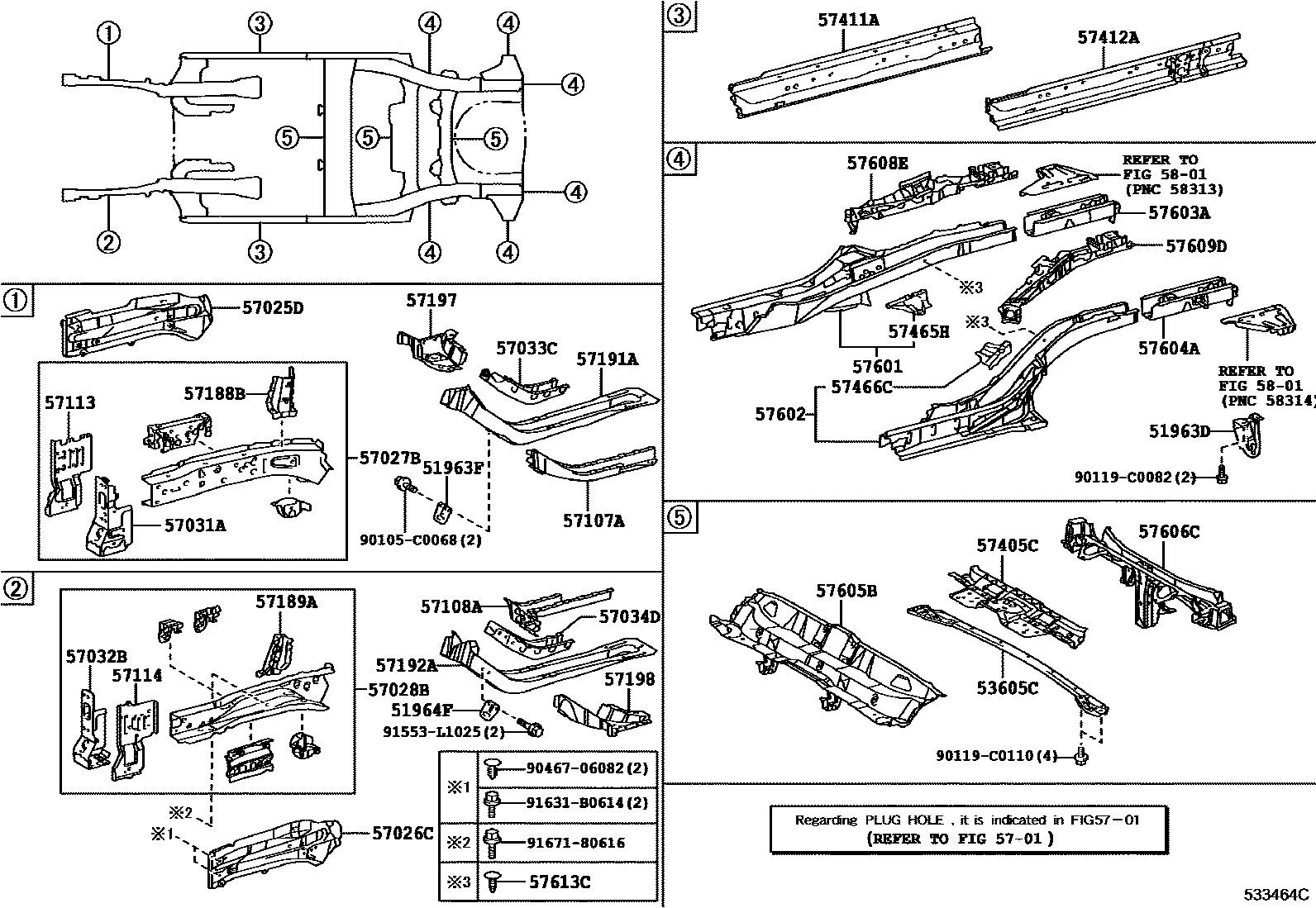

FLOOR SIDE MEMBER

0001 1 0002 1

51963DHOOK, TRANSPORT, REAR LH

main51968-02090iZGR2#201106

51963FHOOK, TRANSPORT

main51963-02110iZGR2#201106-201307

51964FHOOK, TRANSPORT, LH

main51964-02040iZGR2#201106-201307

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-0F020iZGR2#201106

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02040iZGR2#201106

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02040iZGR2#201106

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02050iZGR2#201106

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02040iZGR2#201106

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02030iZGR2#201106

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02030iZGR2#201106

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02060iZGR2#201106

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02060iZGR2#201106

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0F020iZGR2#201106

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-0F020iZGR2#201106

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02090iZGR2#201106

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02090iZGR2#201106

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02030iZGR2#201106

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02030iZGR2#201106

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-0F010iZGR2#201106-201412

main57191-0F011iZGR2#201501

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-0F010iZGR2#201106-201412

main57192-0F011iZGR2#201501

57197BOX, TORQUE, FRONT RH

main57197-02060iZGR2#201106

57198BOX, TORQUE, FRONT LH

main57198-02060iZGR2#201106

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-0F020iZGR2#201106

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-0F030iZGR2#201106-201612

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-0F030iZGR2#201106-201612

57465HGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-0F030iZGR2#201106

57466CGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-0F030iZGR2#201106

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0F040iZGR2#201106

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0F040iZGR2#201106

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0F040iZGR2#201106

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0F040iZGR2#201106

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0F030iZGR2#201106-201412

main57605-0F031iZGR2#201501

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0F040iZGR2#201106

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-0F030iZGR2#201106

57609DREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-0F030iZGR2#201106

57613CCLIP, REAR FLOOR SIDE MEMBER

main90467-06020-C0×2iZGR2#201106-201612

BLACK

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

90105C0068

main90105-C0068

90119C0082

main90119-C0082

90119C0110

main90119-C0110

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

9167180616

main91671-80616
