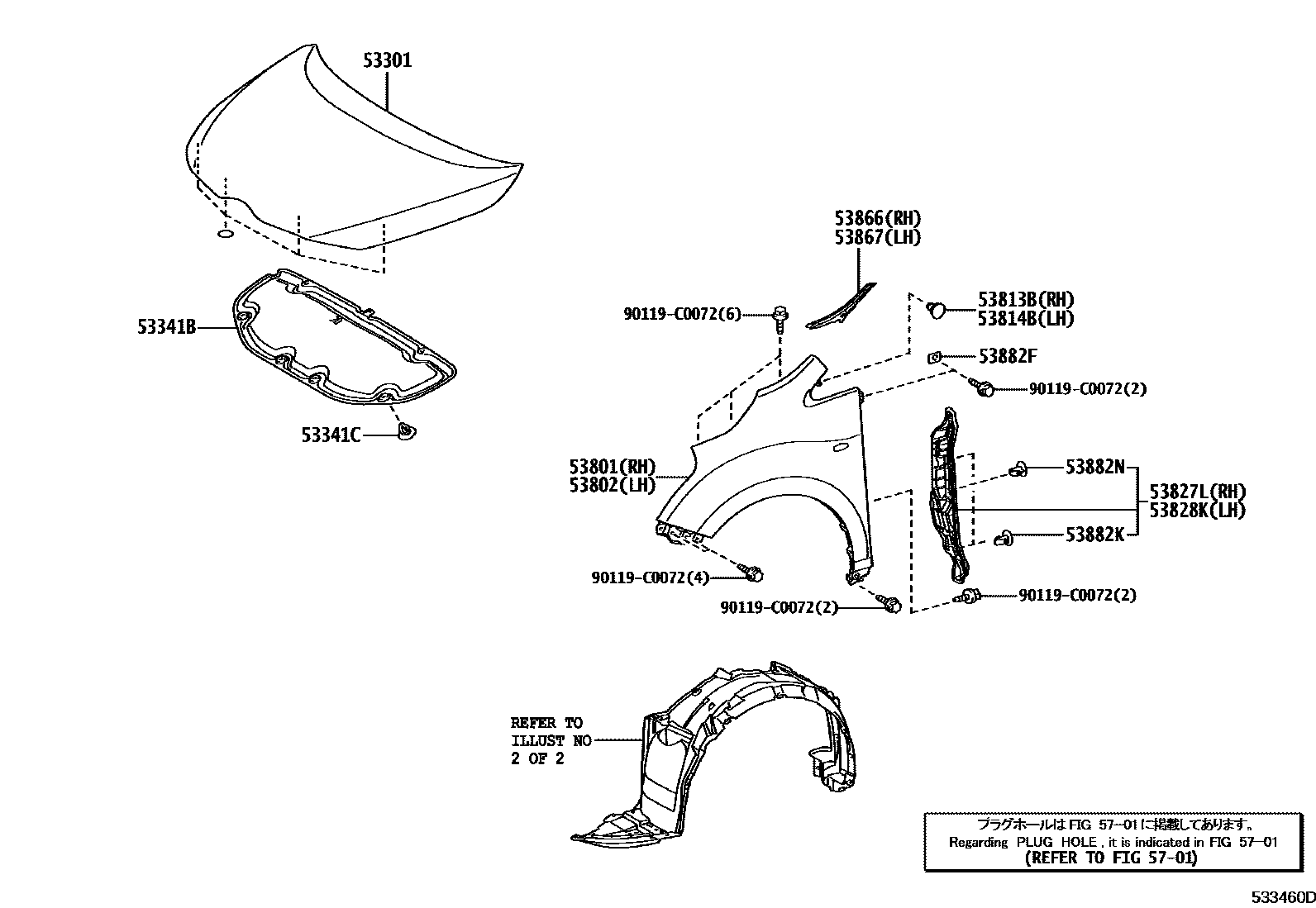

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0F030iZGR2#201106

53341BINSULATOR, HOOD

main53341-0F030iZGR2#201106

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iZGR2#201106-201109

main90467-C0006×6iZGR2#201110

53801FENDER SUB-ASSY, FRONT RH

main53811-0F030iZGR2#201106

53802FENDER SUB-ASSY, FRONT LH

main53812-0F030iZGR2#201106

53813BEXTENSION, FRONT FENDER, RH

main53813-0F030iZGR2#201106

53814BEXTENSION, FRONT FENDER, LH

main53813-0F030iZGR2#201106

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0F030iZGR2#201106

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0F030iZGR2#201106

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0F030iZGR2#201106

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0F030iZGR2#201106

53882FSEAL, FRONT FENDER

main53882-16030×2iZGR2#201106

53882KSEAL, FRONT FENDER

main53882-0F030×4iZGR2#201106

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×2iZGR2#201106-201612

BLACK

5701HOLE PLUG

→ Go to FIG 57-01

90119C0072

main90119-C0072

16 parts on this diagram · 2 diagrams in section
