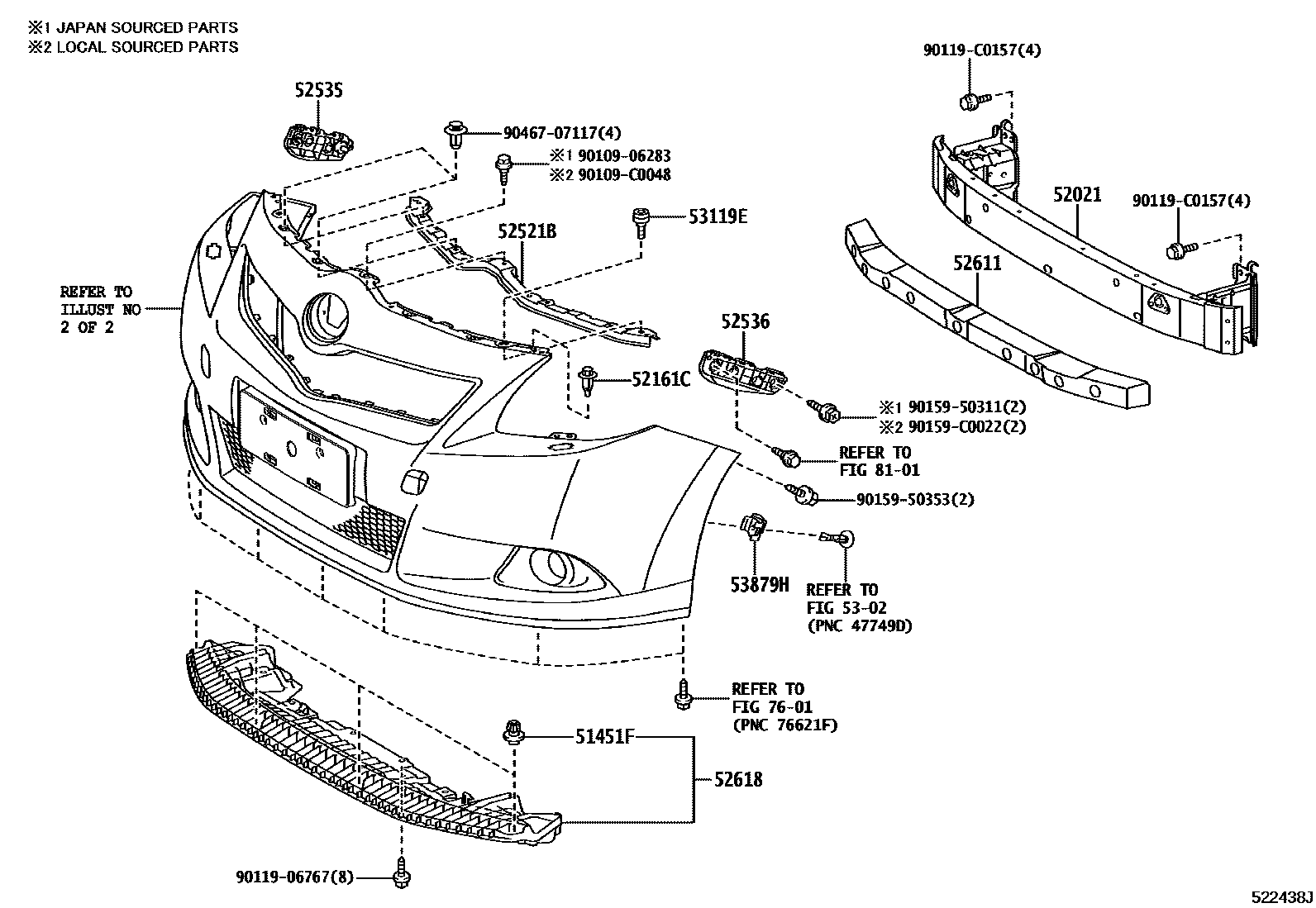

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

51451FGROMMET, NO.1

main90189-05144×4iZGR2#201106-201612

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0F030iZGR2#201106

52161CPIECE, FRONT BUMPER

main52161-02040×2iZGR2#..G201309

(L)

main52161-16010×2iZGR2#..G201106-201309

52521BRETAINER, FRONT BUMPER, UPPER

main52521-0F020iZGR2#201106

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0F030iZGR2#201106

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0F030iZGR2#201106

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0F020iZGR2#201106

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0F020iZGR2#201106

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53119EPROTECTOR, RADIATOR GRILLE

main53119-20120×2iZGR2#201106

53879HRETAINER, FRONT FENDER LINER

main53879-0F010×2iZGR2#201106

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

9010906283

main90109-06283

90109C0048

main90109-C0048

9011906767

main90119-06767

90119C0157

main90119-C0157

9015950311

main90159-50311

9015950353

main90159-50353

90159C0022

main90159-C0022

9046707117

main90467-07117

21 parts on this diagram · 2 diagrams in section
