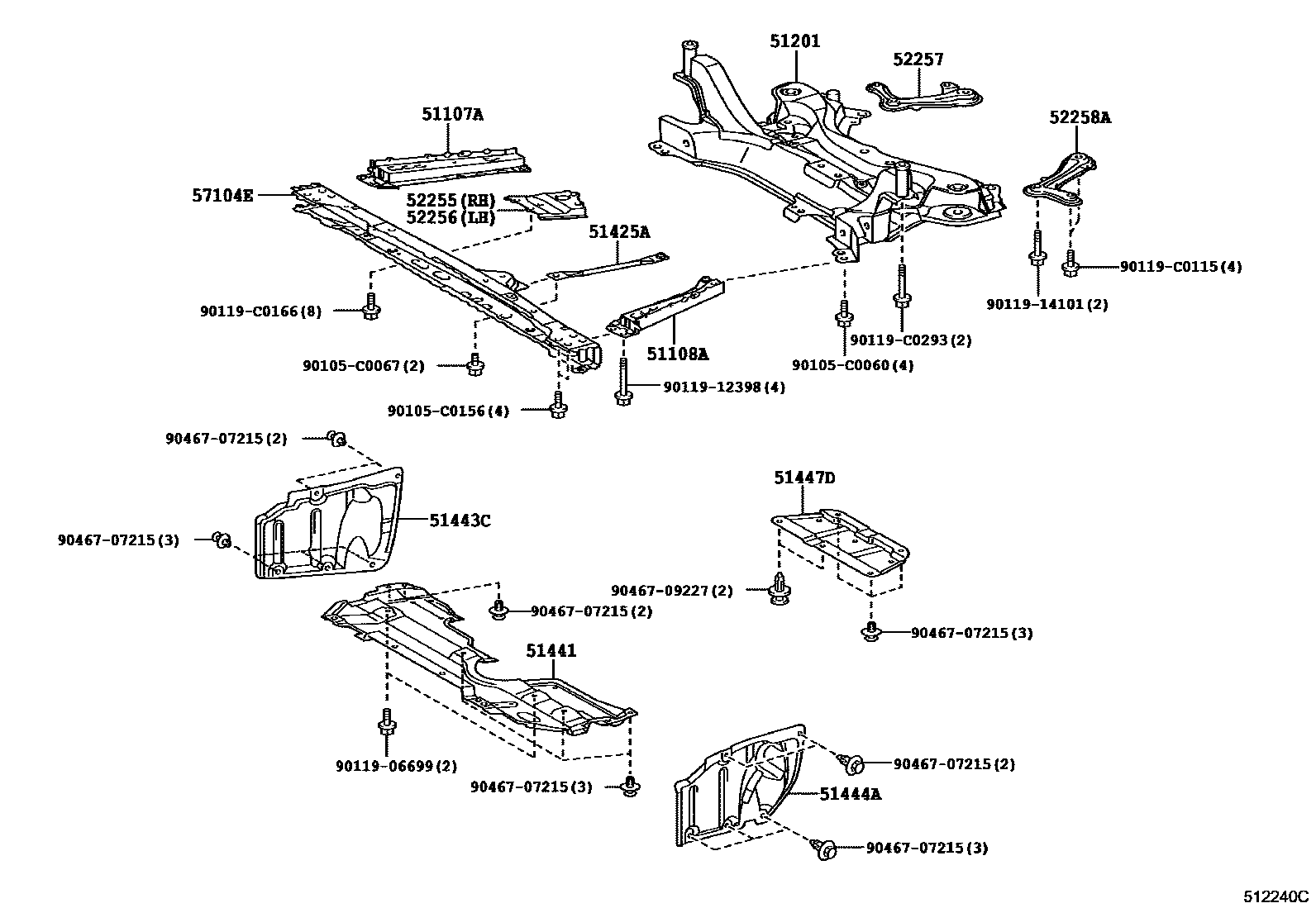

SUSPENSION CROSSMEMBER & UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-0F010iZGR2#201106

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-0F010iZGR2#201106

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02190iZGR2#201409

main51201-0F030iZGR2#201106-201408

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02040iZGR2#201106

51441COVER, ENGINE UNDER, NO.1

main51441-0F030iZGR2#201106

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02070iZGR2#201106

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02060iZGR2#201106

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02030iZGR2#201106

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02030iZGR2#201106

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02030iZGR2#201106

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02051iZGR2#201106

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02051iZGR2#201106

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-0F050iZGR2#201106

90105C0060

main90105-C0060

90105C0067

main90105-C0067

90105C0156

main90105-C0156

9011906699

main90119-06699

9011912398

main90119-12398

9011914101

main90119-14101

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0293

main90119-C0293

9046707215

main90467-07215

9046709227

main90467-09227

24 parts on this diagram · 1 diagram in section
