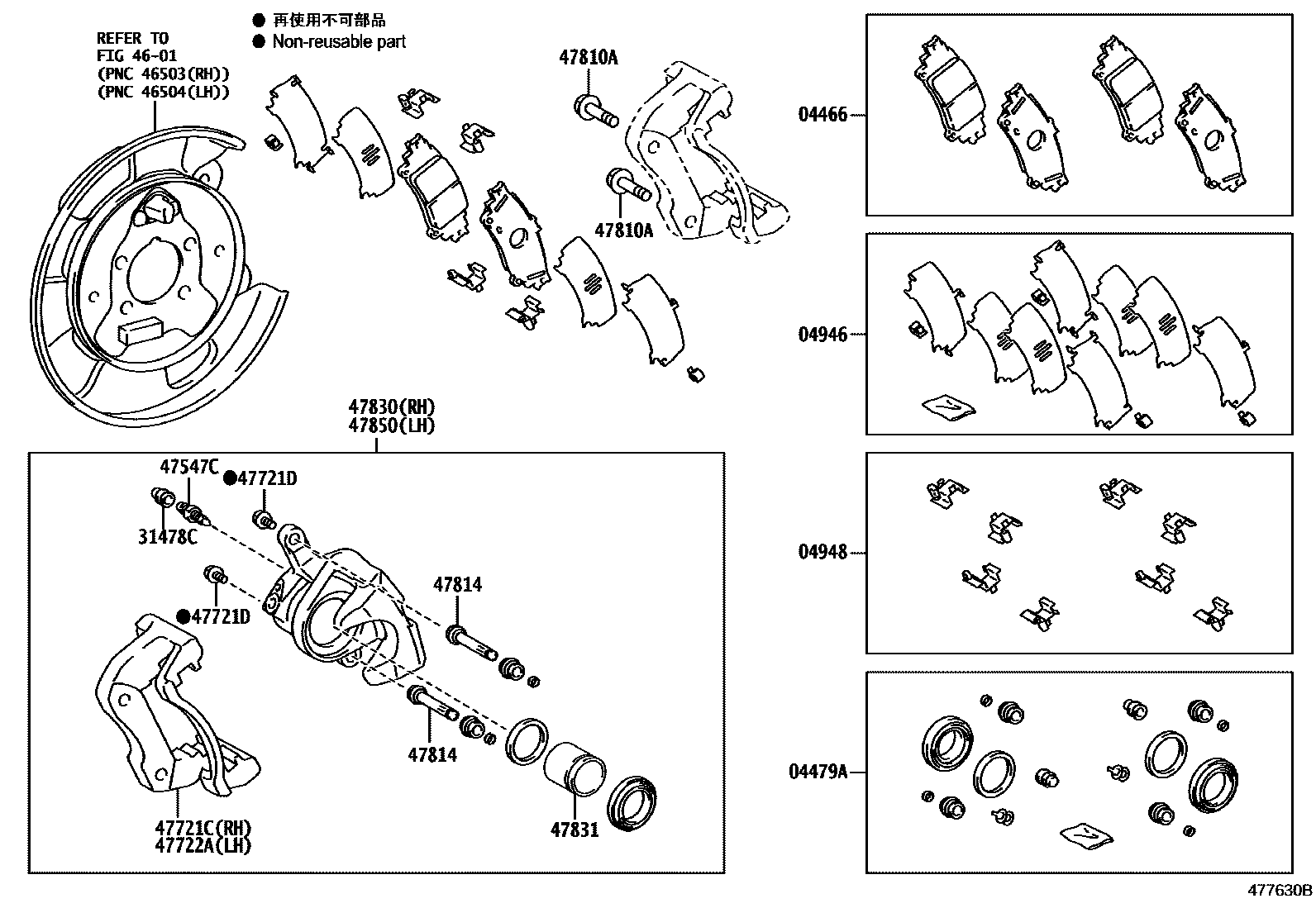

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47050iZGR2#201106-201504

MARK AK PA561

sub04466-47051

main04466-47051iZGR2#201505

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-47070iZGR2#201106-201110

sub04479-47100

main04479-47100iZGR2#201110

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47080iZGR2#201106-201205

main04946-47090iZGR2#201205-201209

sub04946-47100

main04946-47100iZGR2#201209

04948FITTING KIT, DISC BRAKE, REAR

main04948-30230iZGR2#201110-201205

main04948-47020iZGR2#201205

main04948-48050iZGR2#201106-201109

sub04948-30230

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iZGR2#201106

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZGR2#201106

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47050iZGR2#201106-201205

main47821-47080iZGR2#201205

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iZGR2#201106

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47080iZGR2#201205

main47822-47050iZGR2#201106-201205

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10576iZGR2#201106

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-47051iZGR2#201106

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-47050iZGR2#201106-201205

main47830-47080iZGR2#201205

47831PISTON, REAR DISC BRAKE

main47831-30310iZGR2#201106

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-47050iZGR2#201106-201205

main47850-47080iZGR2#201205

15 parts on this diagram · 1 diagram in section
