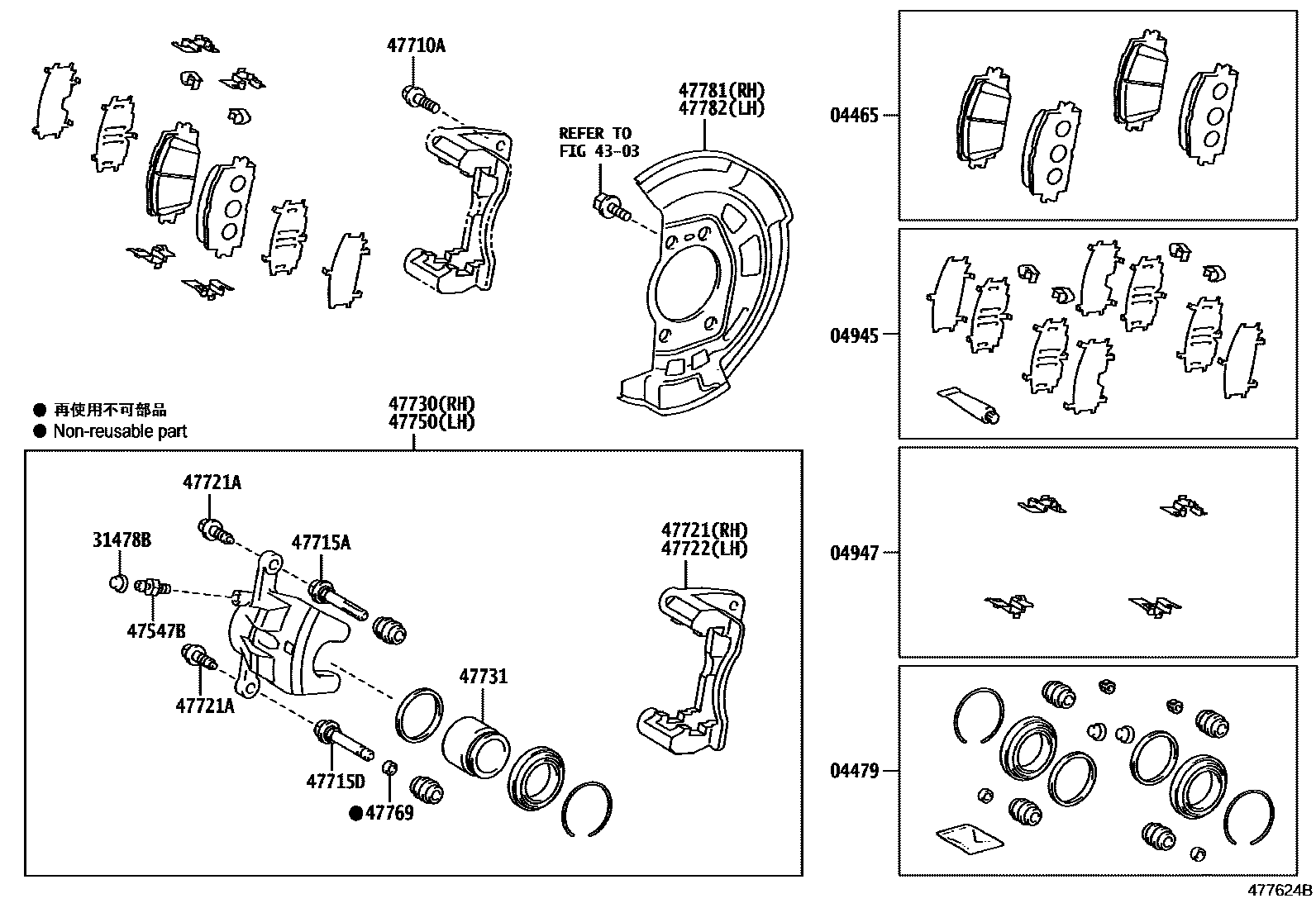

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0R020iZGR2#201310

MARK ADVICS PV565H

main04465-42180iZGR2#201106-201309

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06181iZGR20,21201106-201309

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0R020iZGR2#201106

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02100iZGR2#201106-201309

sub04947-0R020

main04947-0R020iZGR2#201310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iZGR2#201106

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZGR2#201106

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0021iZGR2#201106-201612

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-06270iZGR2#201106-201310

sub47714-0R020

main47714-0R020iZGR2#201310

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-06270iZGR2#201106-201310

sub47715-0D210

main47715-0D210iZGR2#201310

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0R030iZGR2#201106

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iZGR2#201310

*8-1.00PX23-15

main90105-08164iZGR2#201106-201310

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0R030iZGR2#201106

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0R020iZGR2#201310

main47730-0R030iZGR2#201106-201310

47731PISTON, FRONT DISC BRAKE

main47731-0R030iZGR2#201106

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0R020iZGR2#201310

main47750-0R030iZGR2#201106-201310

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010iZGR2#201106

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0F020iZGR2#201106-201612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0F020iZGR2#201106-201612

19 parts on this diagram · 1 diagram in section
