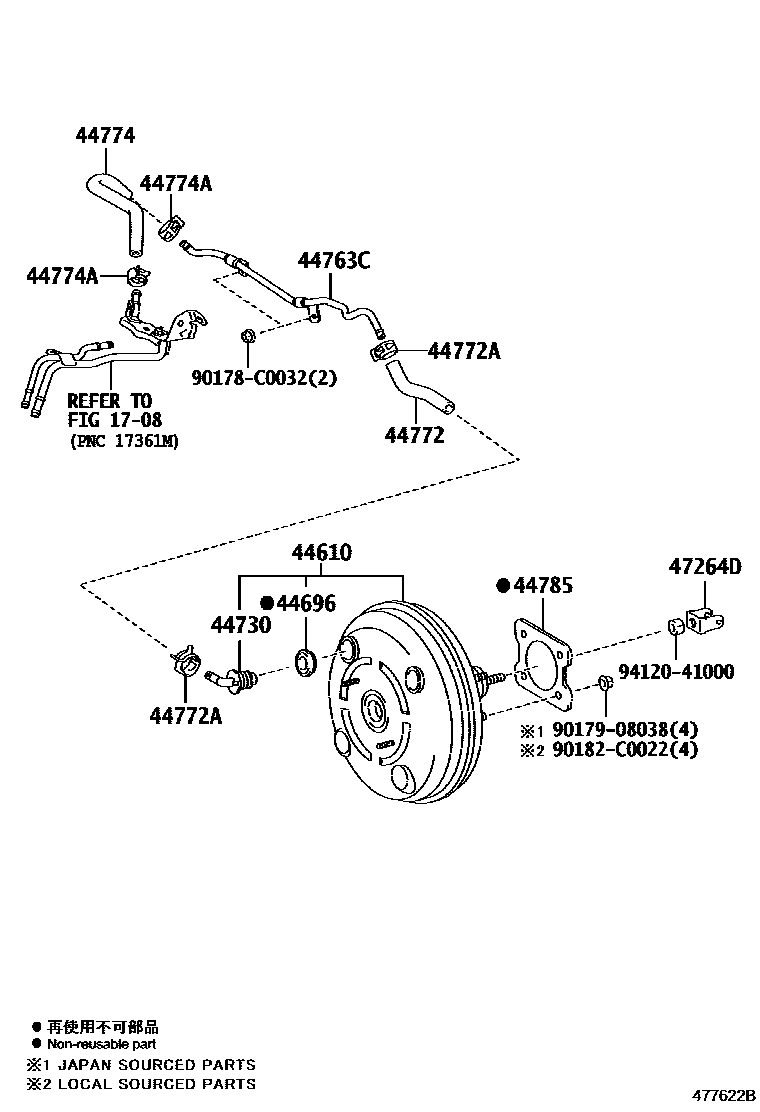

BRAKE BOOSTER & VACUUM TUBE

1708VACUUM PIPING

→ Go to FIG 17-08

44610BOOSTER ASSY, BRAKE

main44610-0F050iZGR2#201106-201502

main44610-0F051iZGR2#201503

44696GROMMET, CHECK VALVE

main90080-48071iZGR2#201106

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iZGR2#201106

44763CTUBE, HOSE TO HOSE, NO.2

main44763-02070iZGR2#201106

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02060iZGR2#201106

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iZGR2#201611

main96133-41500×2iZGR2#201106-201610

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02240iZGR2#201106

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iZGR2#201611

main96133-41500×2iZGR2#201106-201610

44785GASKET, BRAKE BOOSTER

main44785-02050iZGR2#201106

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0P010iZGR2#201106

90178C0032

main90178-C0032

9017908038

main90179-08038

90182C0022

main90182-C0022

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
