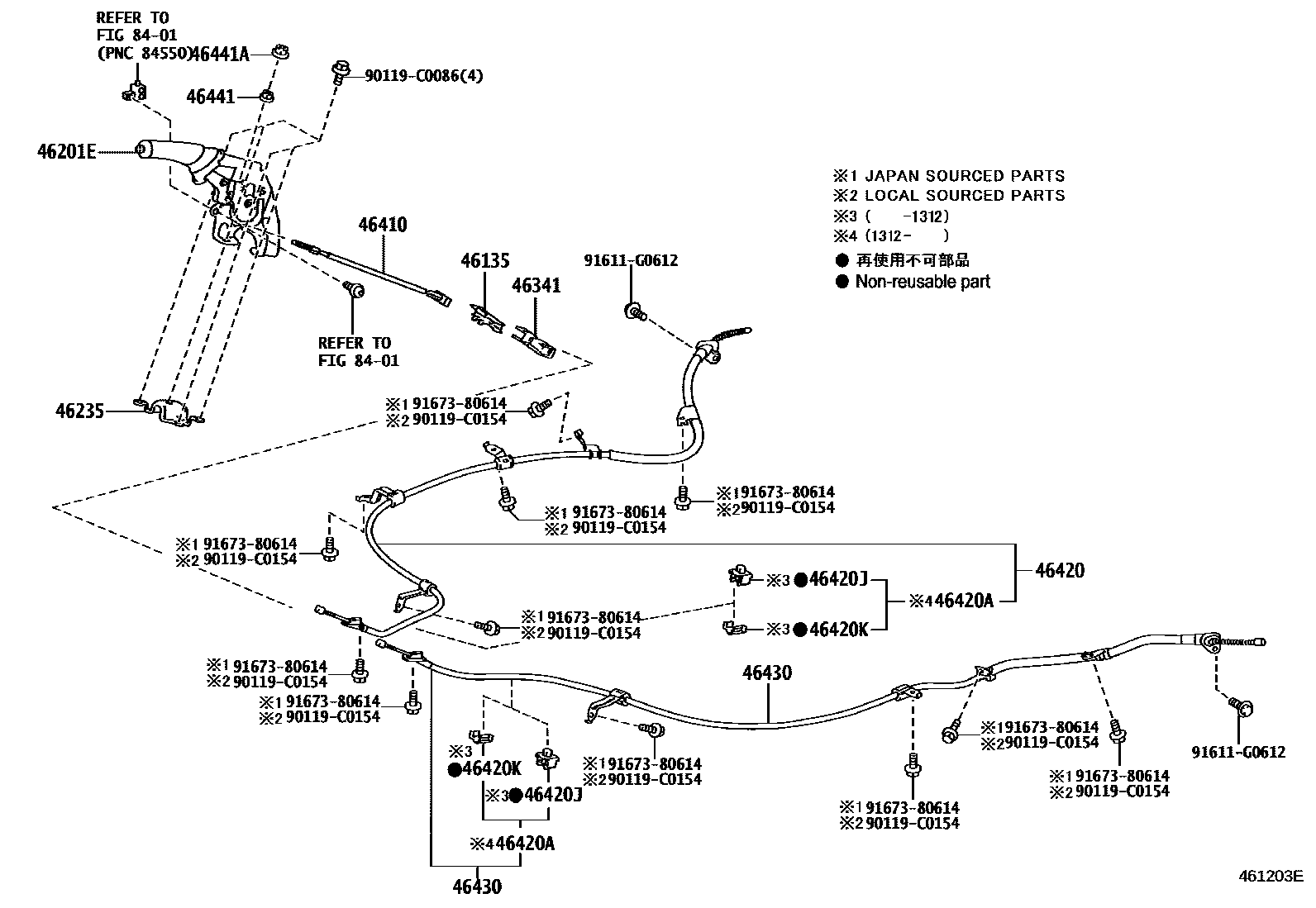

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-02090iZGR2#201410

main46135-12010iZGR2#201106-201409

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0F030-E0iZGR2#201106-201612

ASH BROWN,TRIM4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0F030iZGR2#201106

46341EQUALIZER, PARKING BRAKE

main46341-0F010iZGR2#201203

main46341-12040iZGR2#201106-201202

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0F030iZGR2#201106

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-64010iZGR2#201106-201612

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZGR2#201312-201409

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-12030iZGR22201106-201312

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46411-12040iZGR20,21201106-201312

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-64010iZGR2#201106-201612

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZGR2#201106

46441ANUT, WIRE ADJUSTING, NO.2

main90178-C0032iZGR2#201106

8401

90119C0086

main90119-C0086

90119C0154

main90119-C0154

91611G0612

main91611-G0612

9167380614

main91673-80614

17 parts on this diagram · 3 diagrams in section
