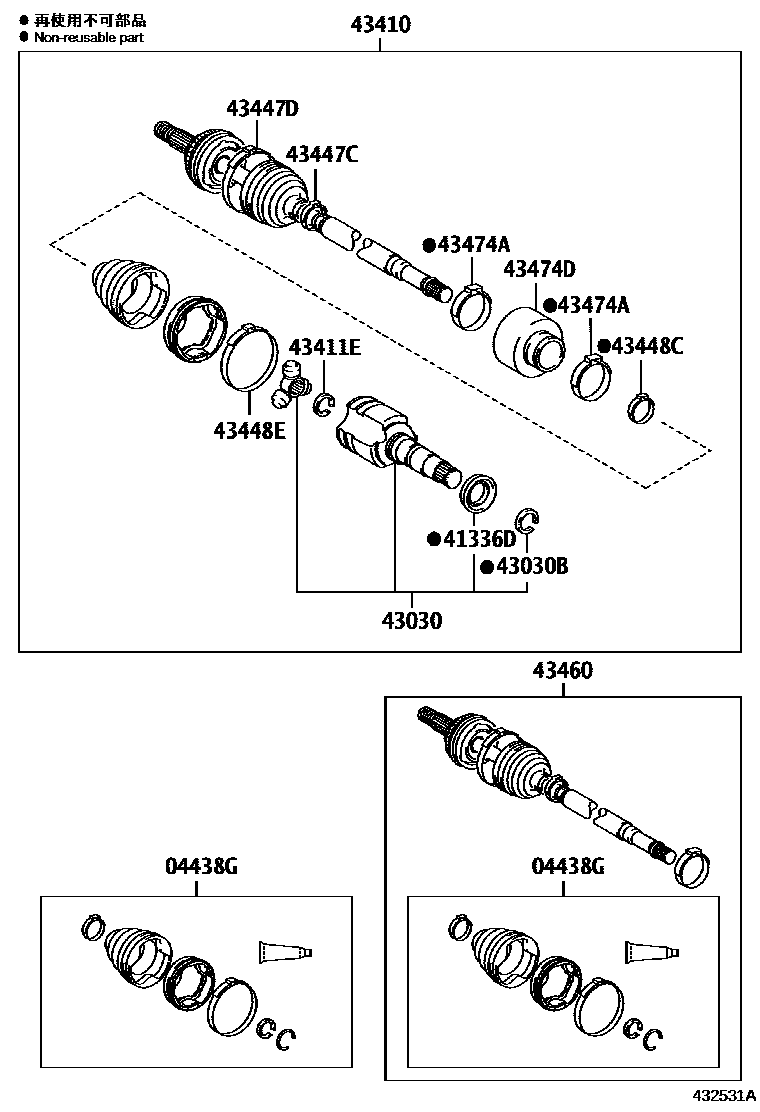

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1 0004 1RH 0005 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02320iZGR20,21201106-201511

main04437-02321iZGR2#201511

main04437-0R050iZGR22201106-201309

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZGR22201106-201309

main41336-12060iZGR20,21201106

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0R010iZGR22201106-201212

main43030-0R110iZGR22201212-201309

main43040-02120iZGR20,21201106

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-27005iZGR20,21201106

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02630iZGR20,21201106-201612

main43410-02650iZGR22201106-201309

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZGR20,21201106-201508

main43425-28010iZGR22201106-201309

main90520-C0029iZGR2#201508

(L)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZGR20,21201106

main42345-42100iZGR22201106-201309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZGR20,21201106

main42345-42090iZGR22201106-201309

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZGR20,21201106

main42345-42010iZGR22201106-201309

TYPE A:REFER ILLUST.

main90949-01559iZGR22201106-201309

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iZGR22201106-201309

main42345-12180iZGR20,21201106

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09S20iZGR20,21201106-201511

main43460-09S21iZGR2#201511

main43470-8Z007iZGR22201106-201309

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02310×2iZGR20,21201106

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02210iZGR20,21201106-201308

main43474-02540iZGR20,21201308

13 parts on this diagram · 5 diagrams in section
