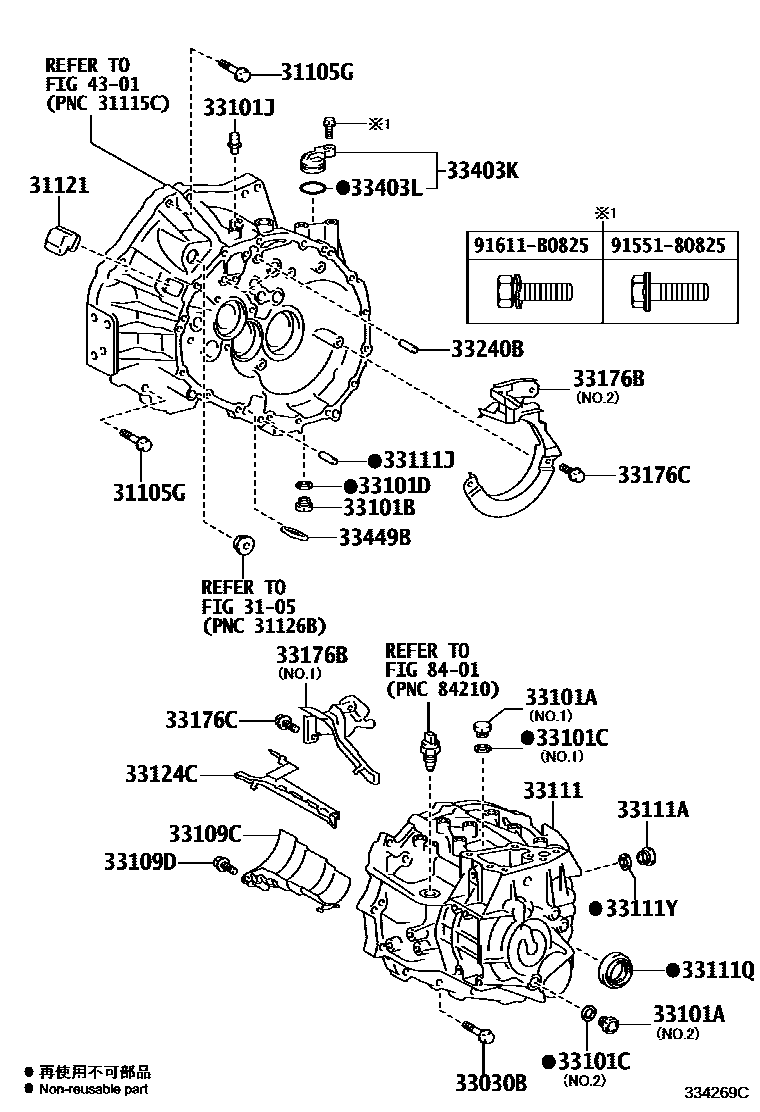

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX45-26
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX40-22
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1
NO.2
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2
NO.1
NO.2
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-35075
33111YSEAL, OIL(FOR TRANSMISSION CASE)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1
NO.2
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
(L)
(J)
33403LRING, O
33449BMAGNET, TRANSMISSION
4301
8401
9155180825
main91551-80825
91611B0825
main91611-B0825
27 parts on this diagram · 1 diagram in section
