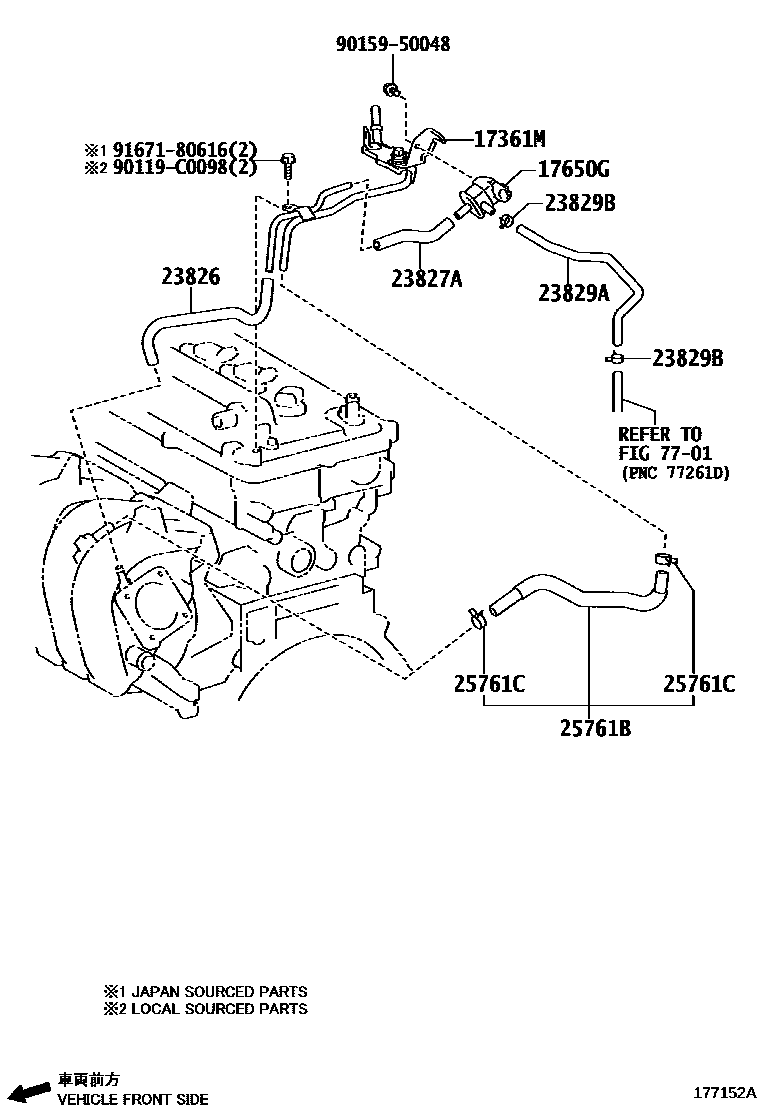

VACUUM PIPING

0001 1 0002 1

17361MTUBE, AIR

main17361-37011i1ZRFE..ZGR20201106

main17361-37040i2ZRFE,3ZRFE..ZGR21,22201106-201311

main17361-37070i2ZRFE..ZGR21201311

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106-201612

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T041i1ZRFE..ZGR20201106

(L)

main23826-0T110i2ZRFE..ZGR21201106

(L)

main23826-37021i1ZRFE..ZGR20201106

(J)

main23826-37190i3ZRFE..ZGR22201106-201309

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i1ZRFE..ZGR20201106

main23827-37060i2ZRFE,3ZRFE..ZGR21,22201106

23829AHOSE, FUEL VAPOR FEED

main23826-0T080i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0002×2i1ZRFE,2ZRFE,3ZRFE..ZGR2#201306

(L)

main96132-51300×2i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106-201306

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-0T010i1ZRFE..ZGR20201309

(L)

main25761-0T020i2ZRFE..ZGR21201309

(L)

main25761-37011i1ZRFE..ZGR20201309

(J)

main25761-37080i2ZRFE..ZGR21201309

(J)

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500×2i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90119C0098

main90119-C0098

9015950048

main90159-50048

9167180616

main91671-80616

12 parts on this diagram · 2 diagrams in section
