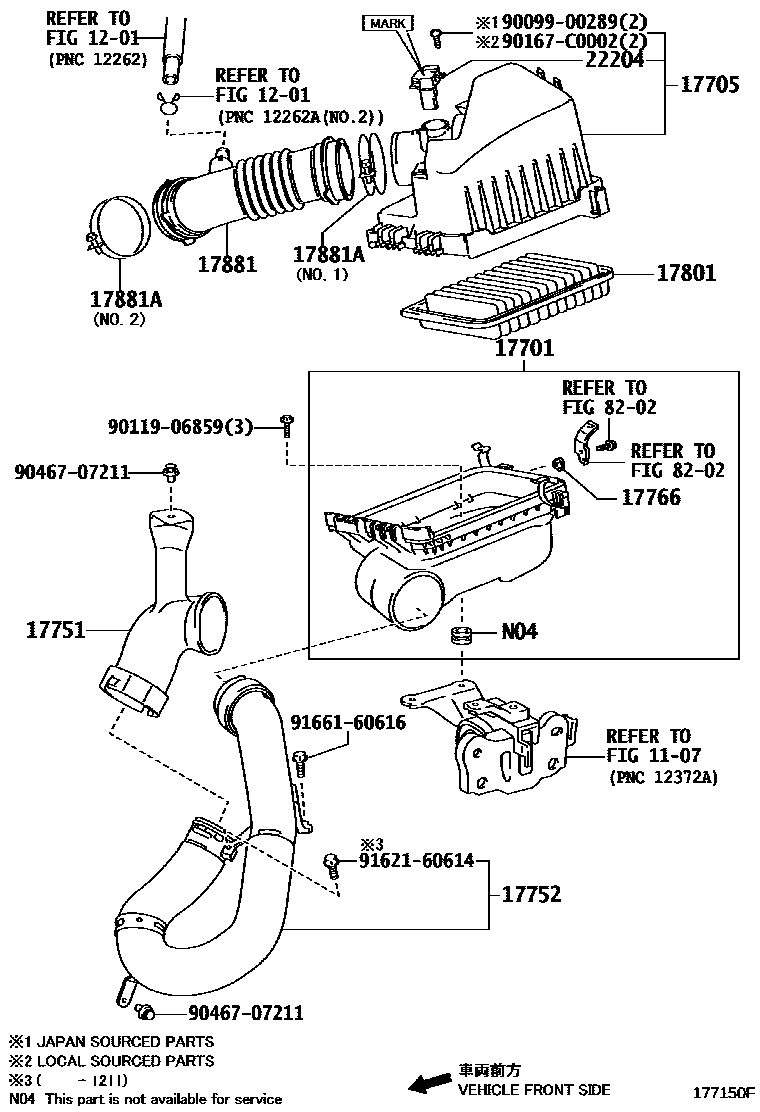

AIR CLEANER

1107

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T100i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T131i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17751INLET, AIR CLEANER, NO.1

main17751-0T120i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17752INLET, AIR CLEANER, NO.2

main17752-0T050i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17766STAY, AIR CLEANER, NO.2

main17706-0T010i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T020i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

17881HOSE, AIR CLEANER, NO.1

main17880-0T240i1ZRFE..ZGR20201106

main17880-0T250i2ZRFE,3ZRFE..ZGR21,22201106

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

NO.1

main96111-10780i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-28010i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

MARK 22204-28010

8202

9009900289

main90099-00289

9011906859

main90119-06859

90167C0002

main90167-C0002

9046707211

main90467-07211

9162160614

main91621-60614

9166160616

main91661-60616

18 parts on this diagram · 1 diagram in section
