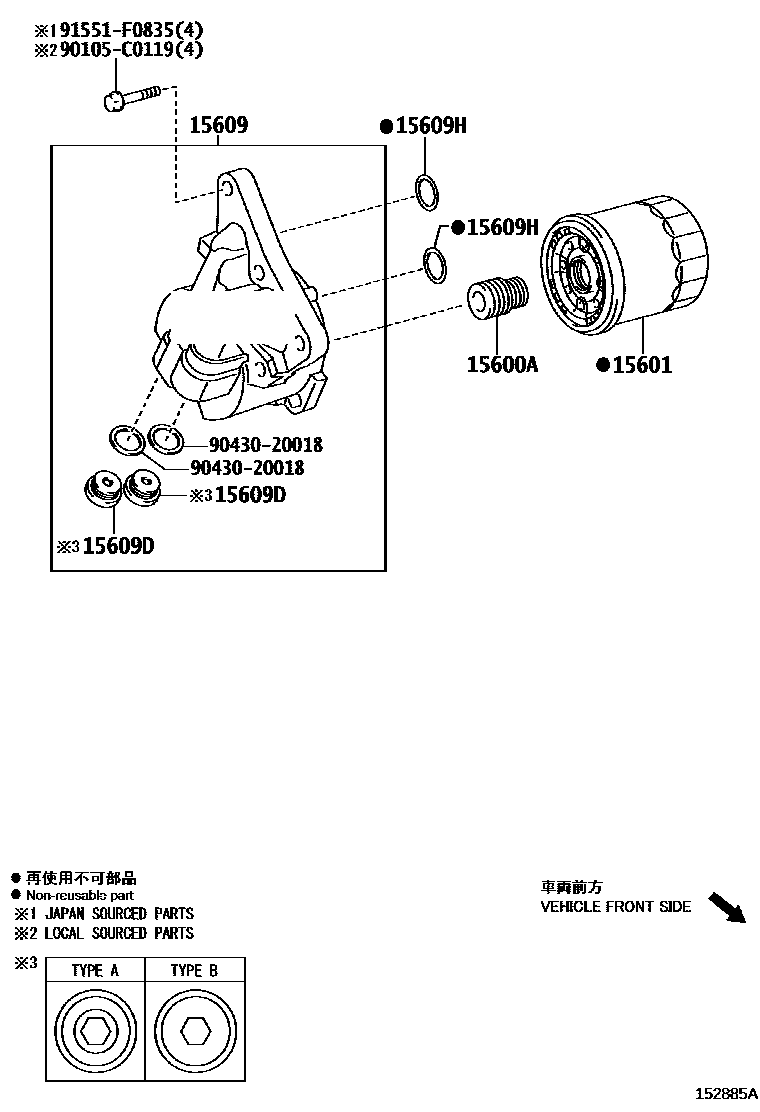

OIL FILTER

0001 1 0002 1

15600AUNION(FOR OIL FILTER)

main90904-04006i1ZRFE,2ZRFE..ZGR20,21201106

15601FILTER SUB-ASSY, OIL

main90915-10003i1ZRFE,2ZRFE..ZGR20,21201106

(J)

sub90915-10009

main90915-CA003i1ZRFE,2ZRFE..ZGR20,21201106

(L)

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0T010i1ZRFE,2ZRFE..ZGR20,21201106

sub15609-0T090

main15609-37040i3ZRFE..ZGR22201106-201309

sub15609-37041

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i3ZRFE..ZGR22201106-201309

main90341-20012i1ZRFE,2ZRFE..ZGR20,21201106

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-C0033i1ZRFE,2ZRFE..ZGR20,21201106

(L)

main96723-24020i3ZRFE..ZGR22201106-201309

main96723-24020i1ZRFE,2ZRFE..ZGR20,21201106

(J)

90105C0119

main90105-C0119

9043020018

main90430-20018

91551F0835

main91551-F0835

8 parts on this diagram · 2 diagrams in section
