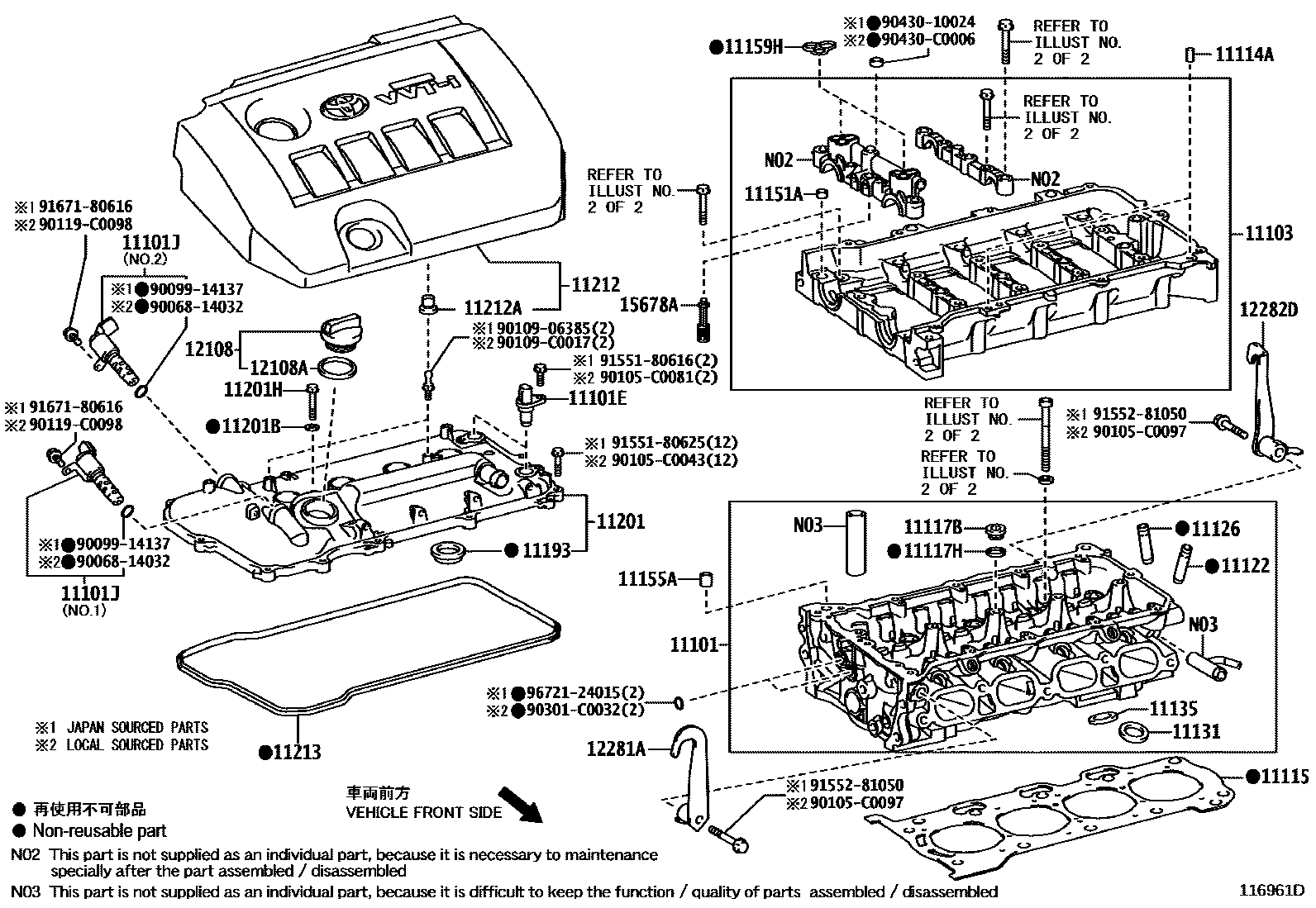

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(L)
(J)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
(L),NO.2
NO.1
(J),NO.1
NO.2
(J),NO.2
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(J)
11114APIN, STRAIGHT
L=14,OD=6,(J)
L=14,OD=6
L=14,OD=6,(L)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD,(L)
O/S 0.05,(J)
O/S 0.05,(L)
11126BUSH, EXHAUST VALVE GUIDE
STD,(L)
O/S 0.05,(L)
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD,(J)
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
L=12.5,OD=8,(J)
L=12.5,OD=8,(L)
11155APIN, RING W/HEAD
(J)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
(L)
(J)
11193GASKET, SPARK PLUG TUBE
(L)
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(J)
11212COVER, CYLINDER HEAD, NO.2
(L)
(J)
11212ACUSHION, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
(L)
(J)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
W(PAINTED)
W/O(PAINTED)
12282DHANGER, ENGINE, NO.2
W(PAINTED)
W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
9006814032
main90068-14032
9009914137
main90099-14137
90105C0043
main90105-C0043
90105C0081
main90105-C0081
90105C0097
main90105-C0097
9010906385
main90109-06385
90109C0017
main90109-C0017
90119C0098
main90119-C0098
90301C0032
main90301-C0032
9043010024
main90430-10024
90430C0006
main90430-C0006
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
43 parts on this diagram · 3 diagrams in section
