Toyota COROLLA (S.AMERICA)157 — HEATING & AIR CONDITIONING - COOLER PIPING

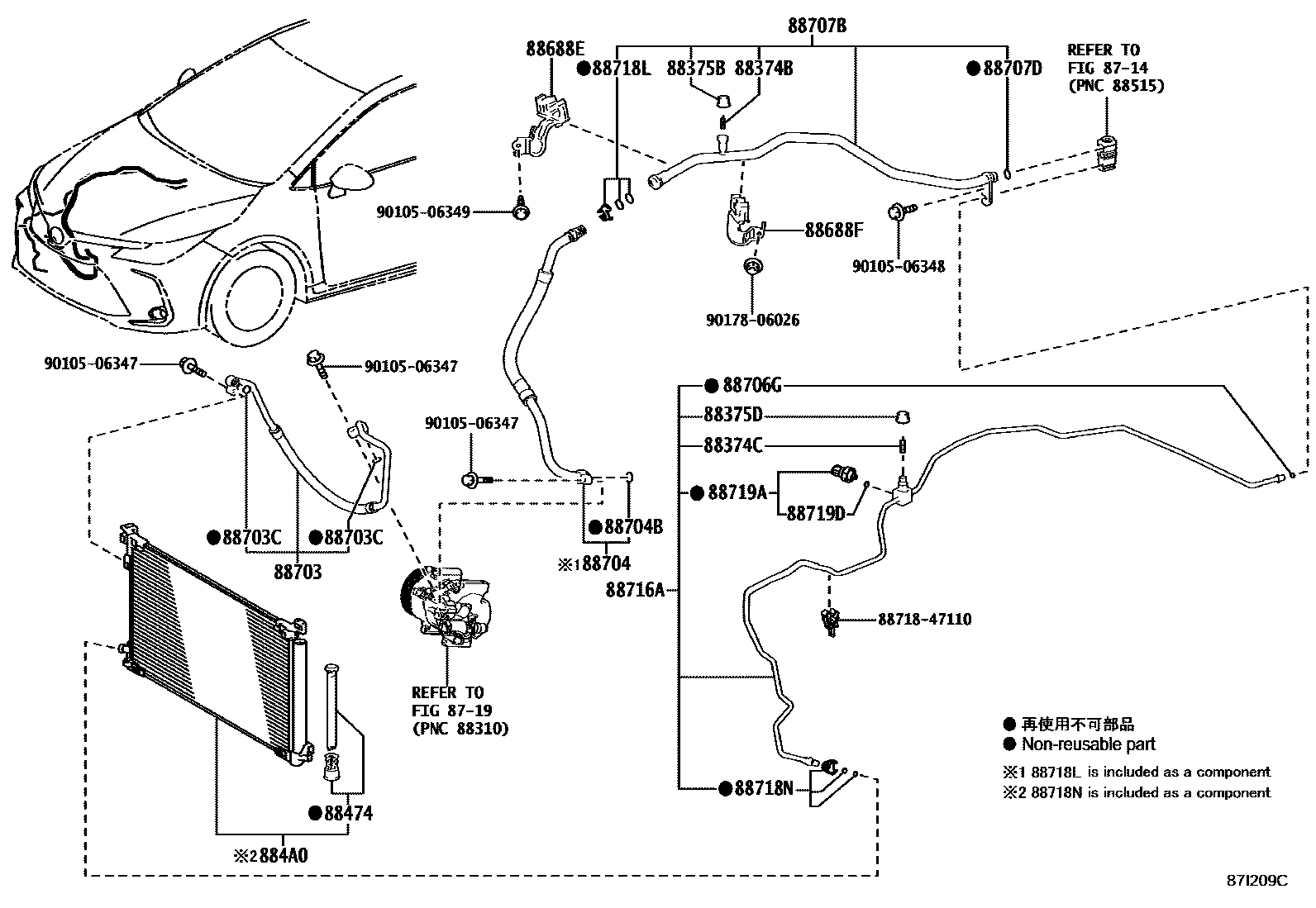

Parts diagram

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

88374CVALVE, SERVICE, NO.2

88375BCAP, SERVICE VALVE, NO.1

88375DCAP, SERVICE VALVE, NO.2

88474DRYER, COOLER

884A0CONDENSER ASSY, COOLER

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

88703HOSE SUB-ASSY, DISCHARGE

88703CRING, O(FOR DISCHARGE HOSE)

88704HOSE SUB-ASSY, SUCTION

88704BRING, O(FOR SUCTION HOSE)

88706GRING, O(FOR LIQUID TUBE)

88707BTUBE SUB-ASSY, SUCTION, B

88707DRING, O(FOR SUCTION TUBE)

88716APIPE, COOLER REFRIGERANT LIQUID, A

88718LCLAMP, PIPING

88718NCLAMP, PIPING

88719ASENSOR, AIR CONDITIONER PRESSURE

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

8871847110PIPE, COOLER REFRIGERANT SUCTION, NO.2

9010506347

9010506348

9010506349

9017806026

27 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota COROLLA (S.AMERICA)157

This section contains 27 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota COROLLA (S.AMERICA)157. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, VALVE, SERVICE, NO.2, CAP, SERVICE VALVE, NO.1.
