ANTENNA
86050ANTENNA ASSY, TELEVISION
AUDIO-AVN(8INCH) & 6SPEAKER
86101CORD SUB-ASSY, ANTENNA
main86101-12B40supersedes 86101-12K20iZRE210,ZWE211..GEN;MZEA12..(E,N)..GEN;MZEA12..D..(BZ,GEN)201909-202201
AUDIO-AVN(8INCH) & 6SPEAKER
AUDIO-ACCESSORY DA(10INCH) & 6SPEAKER
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-12B10supersedes 86101-12G50iMZEA12,ZWE211..E..BZ; MZEA12..(E,N)..AGT; MZEA12..D..AGT;MZEA12,ZWE211..E..GEN;MZEA12,ZRE210,ZWE211..(D,N)..(BZ,GEN); ZWE211..AGT201909-202201
AUDIO-*DA(8INCH) & 6SPEAKER; MOON ROOF-WITHOUT; MOON ROOF-WITHOUT&AUDIO-*DA(8INCH) & 6SPEAKER
main86101-12K40iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ); ZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN202309-202412
MOON ROOF-WITH
main86101-12G50supersedes 86101-12K50iMZEA12,ZWE211..E..BZ; MZEA12..(E,N)..AGT; ZWE211..AGT201909-202201
MOON ROOF-WITHOUT; MOON ROOF-WITHOUT&AUDIO-AVN(8INCH) & 6SPEAKER
AUDIO-AVN(8INCH) & 6SPEAKER
86101QCORD SUB-ASSY, ANTENNA, NO.4
AUDIO-AVN(8INCH) & 6SPEAKER
86300BANTENNA ASSY, AMPLIFIER, NO.1
9011906A06
main90119-06A06
9017906274
main90179-06274

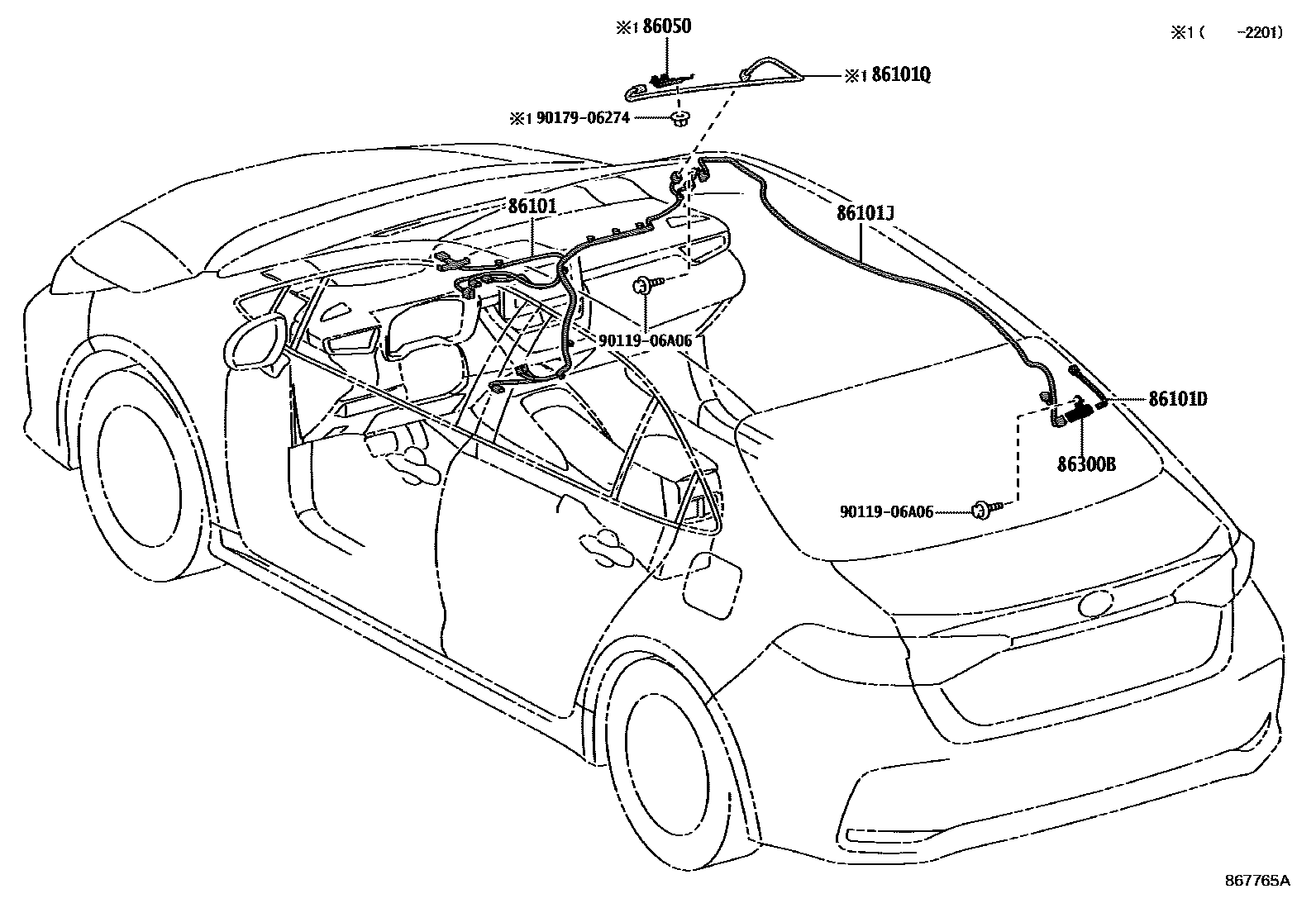

8 parts on this diagram · 1 diagram in section
