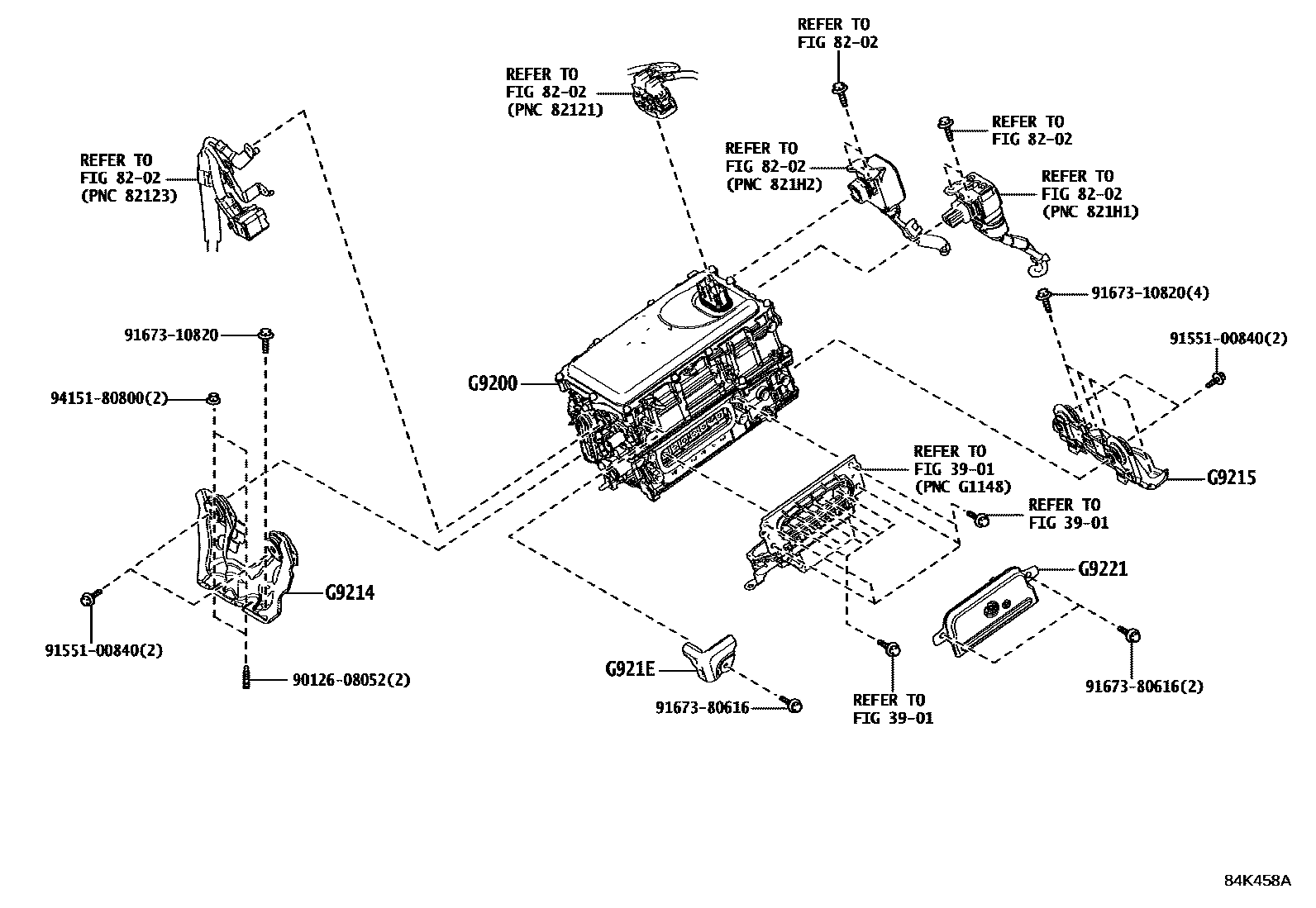

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A012040iZWE211..BZ201909-202009

mainG92A012041iZWE211..BZ202010-202104

mainG92A012042iZWE211..BZ202105-202412

mainG92A047100iZWE211..AGT,GEN201909-202104

mainG92A047101iZWE211..AGT,GEN202105-202412

G9214BRACKET, INVERTER, NO.1

mainG921447070iZWE211201909-202412

G9215BRACKET, INVERTER, NO.2

mainG921547050iZWE211201909-202412

G921EPROTECTOR, INVERTER

mainG921E47010iZWE211201909-202412

G9221COVER, INVERTER

mainG902247050iZWE211201909-202412

9012608052

main90126-08052

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
