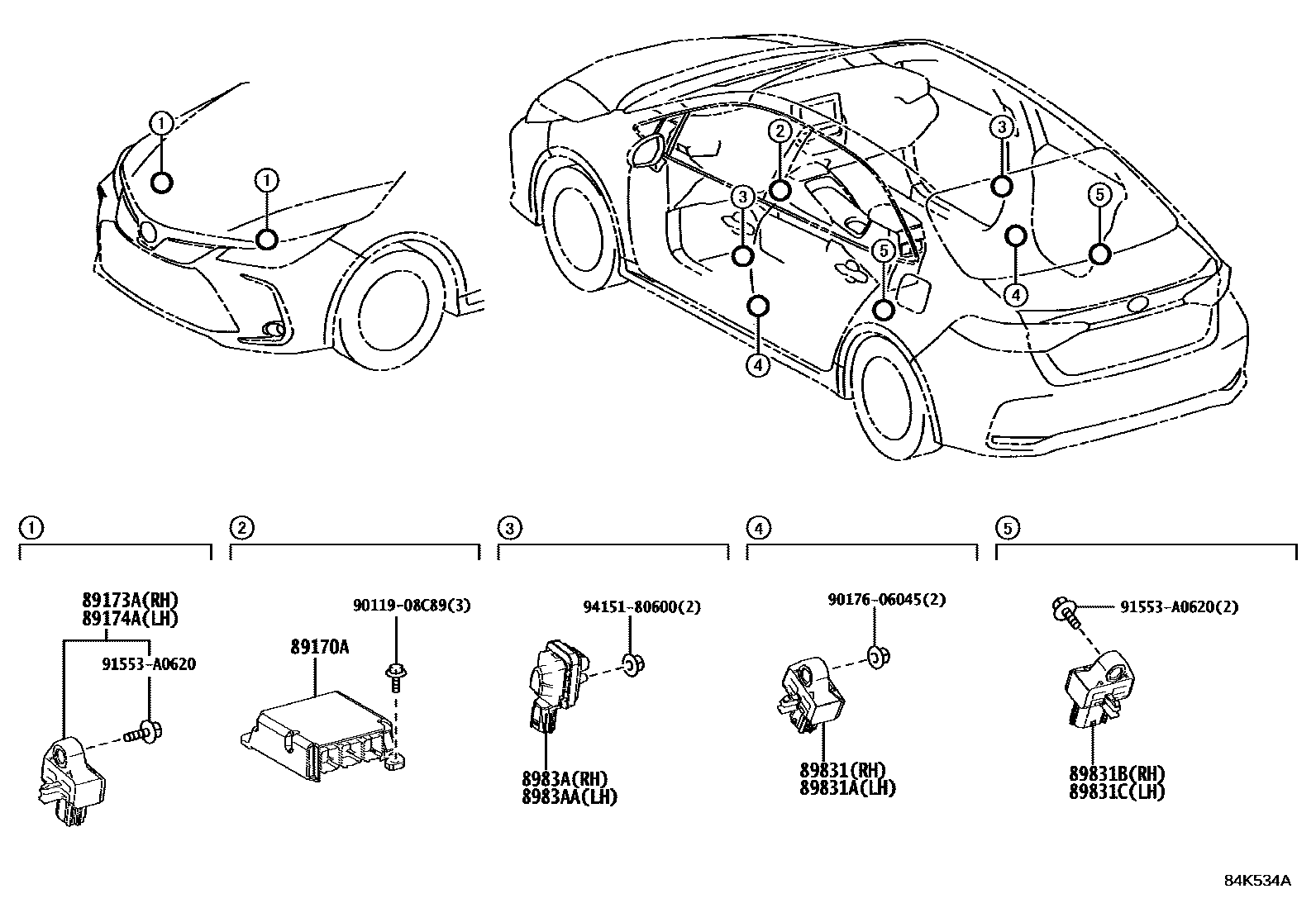

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-02R10iMZEA12,ZRE210201909-202201

main89170-02R20iZWE211202309-202412

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iZRE210..6F202309

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iMZEA12,ZRE210,ZWE211201909-202201

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-47050iMZEA12,ZRE210,ZWE211201909-202201

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-47050iMZEA12,ZRE210,ZWE211202201-202309

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-28040iMZEA12,ZRE210,ZWE211201909-202201

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-28040iMZEA12,ZRE210,ZWE211201909-202201

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-33010iMZEA12,ZRE210,ZWE211201909-202104

main8983A-33011iMZEA12,ZRE210,ZWE211202105-202201

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-33010iMZEA12,ZRE210,ZWE211201909-202104

main8983A-33011iMZEA12,ZRE210,ZWE211202105-202201

9011908C89

main90119-08C89

9017606045

main90176-06045

91553A0620

main91553-A0620

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
