Toyota COROLLA (S.AMERICA)157 — ABS & VSC

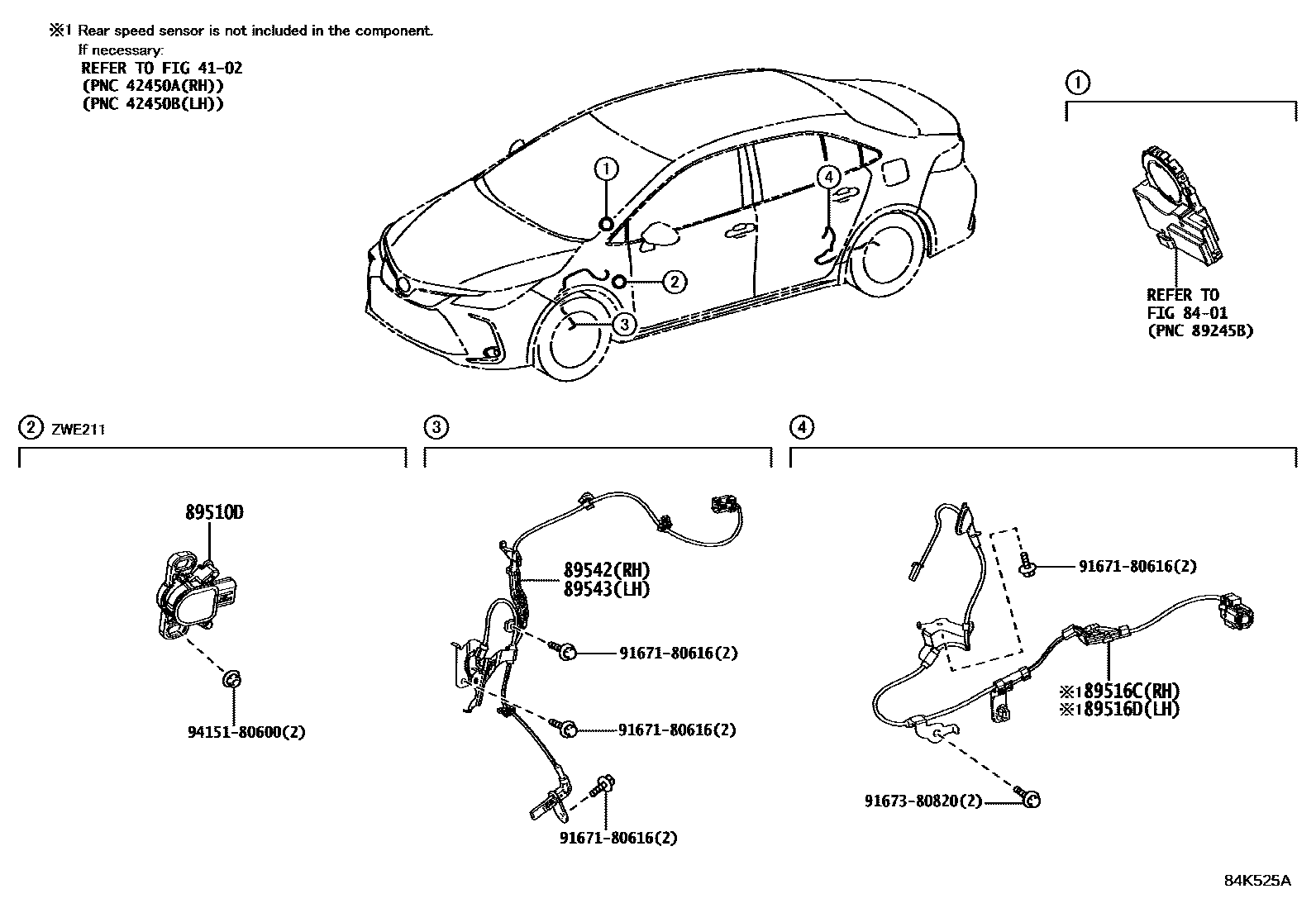

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

89516CWIRE, SKID CONTROL SENSOR, RH

89516DWIRE, SKID CONTROL SENSOR, LH

89542SENSOR, SPEED, FRONT RH

89543SENSOR, SPEED, FRONT LH

9167180616

9167380820

9415180600

10 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota COROLLA (S.AMERICA)157

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA (S.AMERICA)157. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
