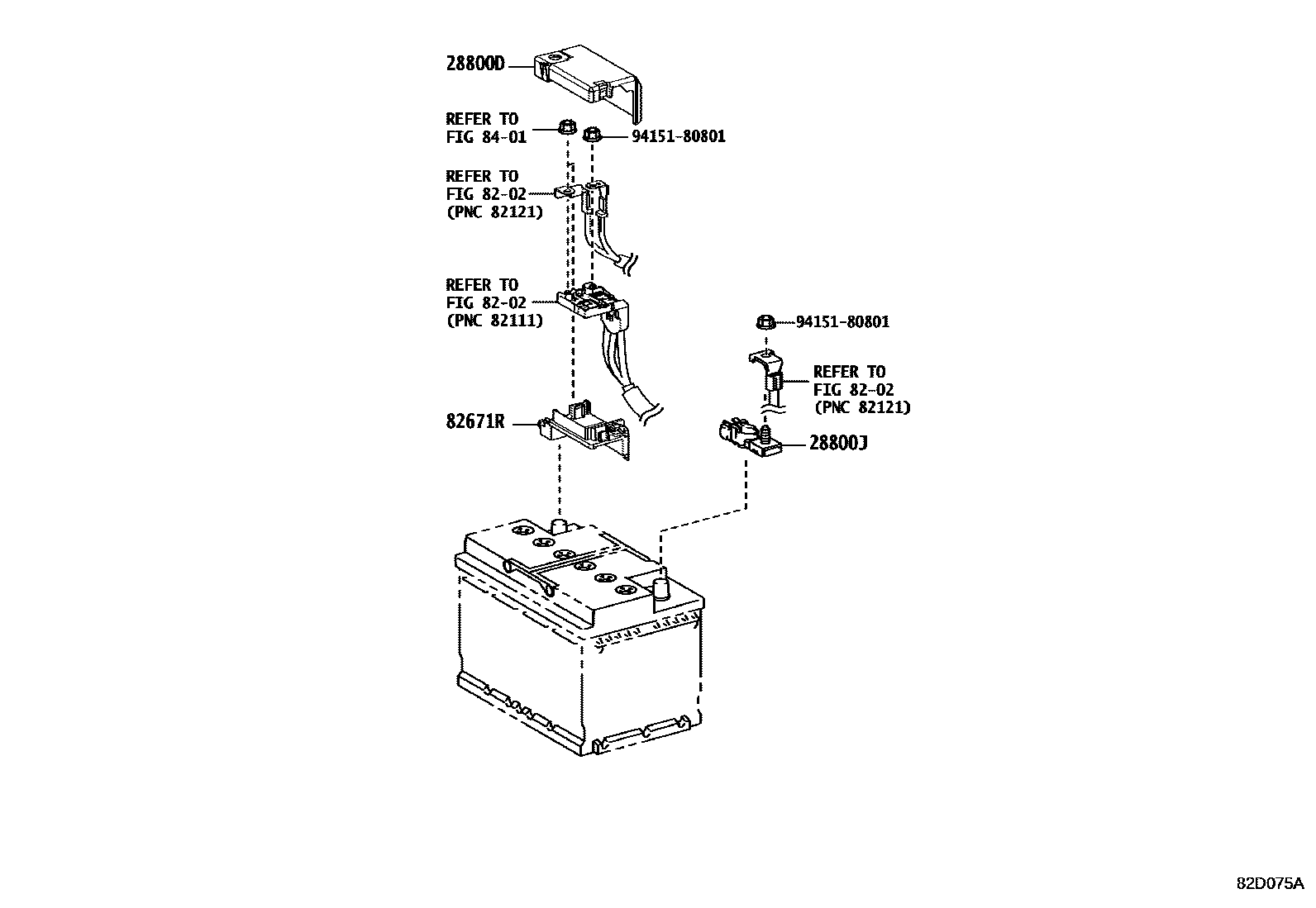

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-12040iM20#,1ZRFAE..MZEA12,ZRE210202201-202309

main82621-47020i2ZR#..ZWE211202309-202412

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070iM20#,1ZRFAE..MZEA12,ZRE210201909-202201

8202WIRING & CLAMP

→ Go to FIG 82-02

82671RSTOPPER, BATTERY TERMINAL

main82651-10010iMZEA12,ZRE210201909-202201

main82671-47040iZWE211202309-202412

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

6 parts on this diagram · 5 diagrams in section
