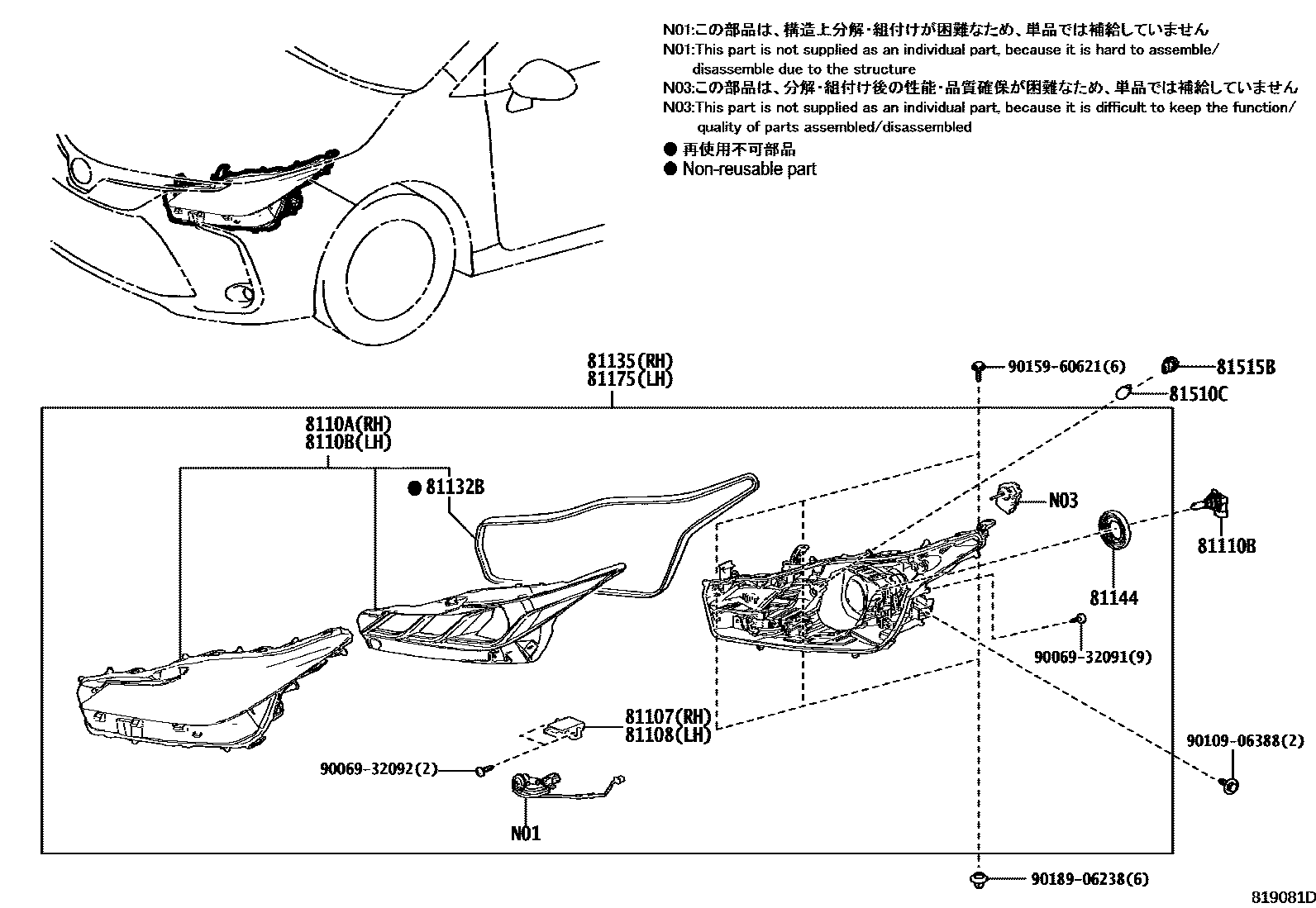

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-02U90iZRE210..6F..N;ZRE210,ZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)202201-202309

main81107-02V10iMZEA12..E;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..CVT..(E,N); MZEA12..N..BZ202201-202309

GR SPORT

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-02U90iZRE210..6F..D202309

main81107-02V10iMZEA12..E;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..CVT..(E,N)201909-202201

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-02U90iZRE210..6F..N;ZRE210,ZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)201909-202201

main8110A-02V10iMZEA12..E;ZWE211..E,N;MZEA12..N..(AGT,GEN); MZEA12..N..BZ202412

GR SPORT

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-02U90iZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)202412

main8110B-02V10iMZEA12..E;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..CVT..(E,N); MZEA12..N..BZ202309-202412

GR SPORT

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13102×2iZRE210..6F..N;ZRE210,ZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)201909-202201

12V 55W

81132BGASKET, HEADLAMP LENS

main81132-02U90×2iMZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN);ZRE210,ZWE211..CVT..D202309-202412

main81132-02V10×2iMZEA12..E;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..CVT..(E,N); MZEA12..N..BZ202201-202309

GR SPORT

81135UNIT ASSY, HEADLAMP, RH

main81130-02U90iZRE210..6F..N;MZEA12..(D,N)..BZ;MZEA12,ZRE210..D..(AGT,GEN)201909-202201

main81130-02W60iZWE211..D201909-202201

main81145-02V10iZRE210..6F..N202309

main81145-02W70iZWE211..E,N202201-202309

81144COVER, HEADLAMP, NO.1

main90075-65023×2iZRE210..6F..N;ZRE210,ZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)201909-202201

81175UNIT ASSY, HEADLAMP, LH

main81170-02U90iZRE210..6F..N;MZEA12..(D,N)..BZ;MZEA12,ZRE210..D..(AGT,GEN)201909-202201

main81170-02W60iZWE211..D202412

main81185-02V10iMZEA12..E;ZRE210..CVT..N;MZEA12..N..(AGT,GEN); MZEA12..N..BZ202201-202309

GR SPORT

main81185-02W70iZWE211..E,N202412

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iMZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN);ZRE210,ZWE211..CVT..D202309-202412

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZRE210..6F..N;ZRE210,ZWE211..D;MZEA12..(D,N)..BZ;MZEA12..D..(AGT,GEN)201909-202201

9006932091

main90069-32091

9006932092

main90069-32092

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

16 parts on this diagram · 2 diagrams in section
