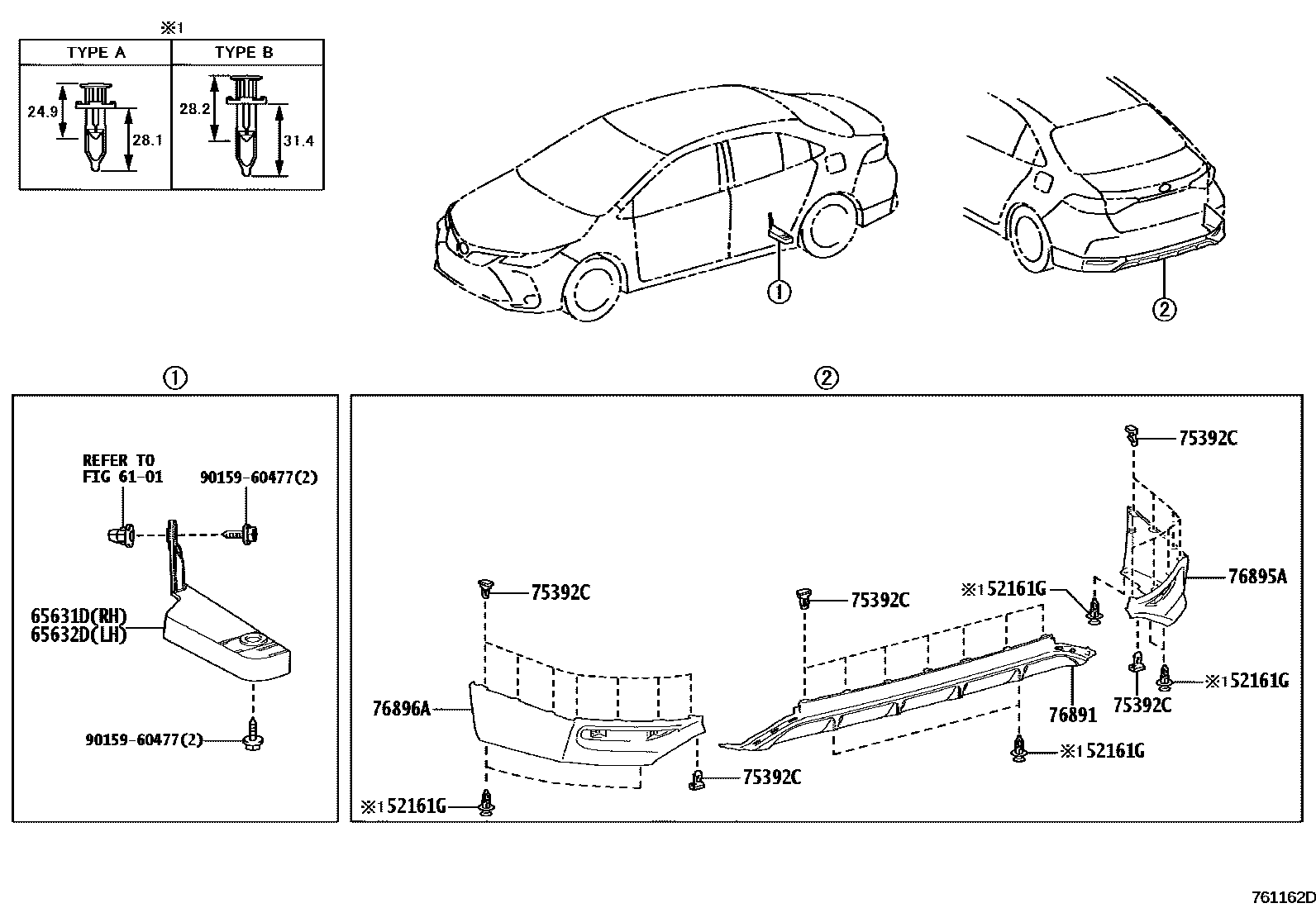

MUDGUARD & SPOILER

0001 1 0002 1GR SPORT

52161GPIECE, REAR BUMPER

6101SIDE MEMBER

→ Go to FIG 61-01

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02360iMZEA12,ZRE210,ZWE211201909-202412

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-02360iMZEA12,ZRE210,ZWE211201909-202412

75392CRETAINER, OUTSIDE MOULDING

76891SPOILER, REAR NO.1

main76891-02901

main76891-02904

76895ASPOILER, REAR BUMPER, RH

76896ASPOILER, REAR BUMPER, LH

9015960477

main90159-60477

9 parts on this diagram · 2 diagrams in section
