SEAT BELT & CHILD RESTRAINT SEAT

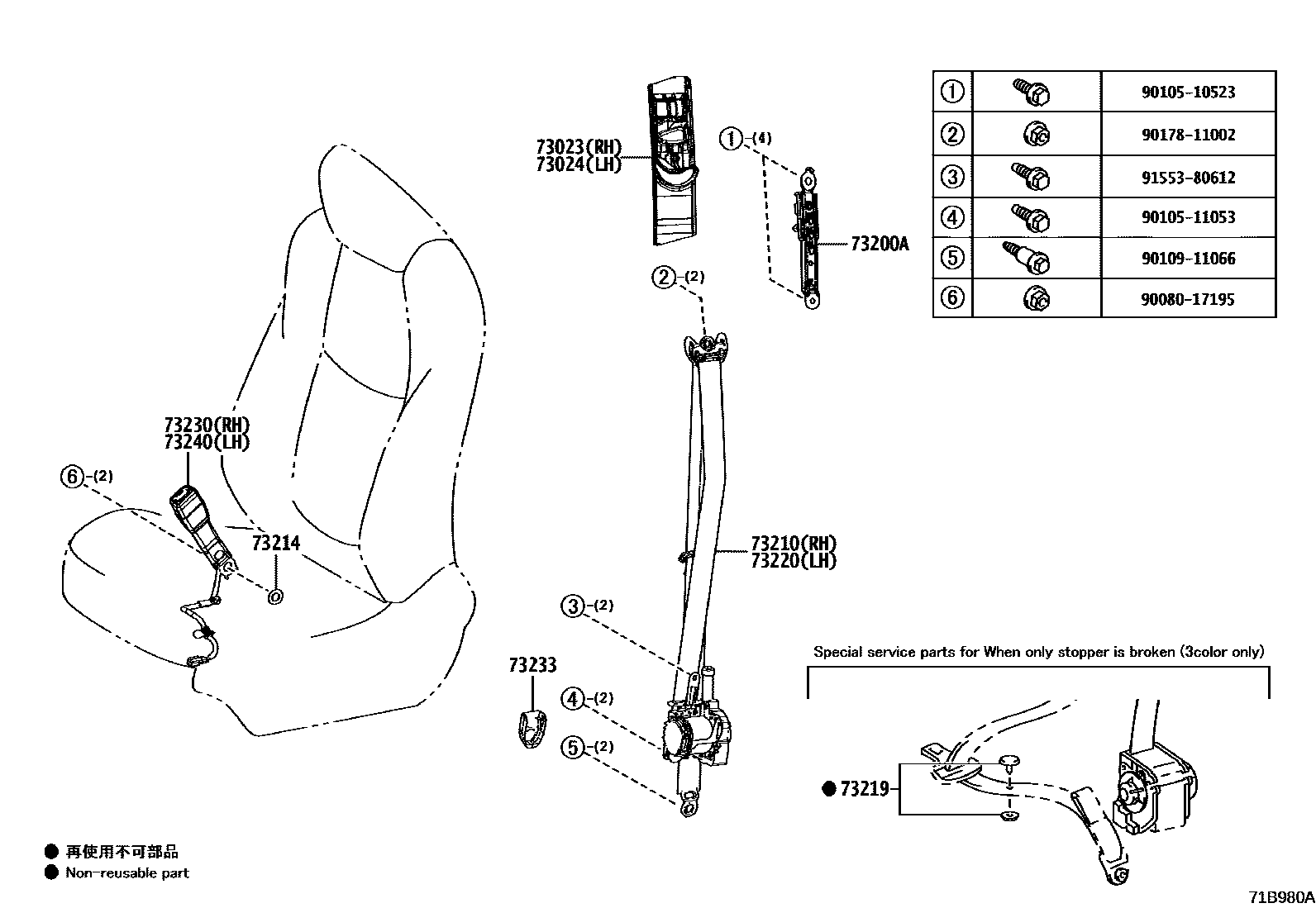

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02140-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02140-C0iMZEA12,ZWE211..E..BZ; MZEA12..D..GEN;MZEA12..(D,N)..AGT; ZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202309

BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iMZEA12,ZRE210,ZWE211202201-202309

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06450-C4iMZEA12,ZWE211..(E,N)..BZ; MZEA12,ZWE211..D..BZ;MZEA12,ZWE211..E..GEN; MZEA12,ZWE211..E..AGT;MZEA12,ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202201

BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMZEA12,ZWE211202412

73219STOPPER, TONGUE PLATE

main73219-02010iZRE210..6F202309

BLACK

main73219-02020iMZEA12,ZRE210,ZWE211201909-202201

GRAY

main73219-02030iMZEA12,ZWE211202412

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02700-C2iMZEA12,ZWE211..E..BZ; MZEA12..D..GEN;MZEA12..(D,N)..AGT; ZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202309

BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02E00-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iMZEA12,ZWE211..E..BZ; MZEA12..D..GEN;MZEA12..(D,N)..AGT; ZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202309

BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02D90-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT; ZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12..CVT..(D,N)..(BZ,GEN)202201-202309

BLACK,TRIM1#,2#; BLACK,TRIM2#

main73230-02E10-C0iMZEA12,ZWE211..E..(AGT,GEN); MZEA12,ZWE211..E..BZ202309-202412

BLACK,TRIM0#; BLACK,TRIM2#

9008017195

main90080-17195

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
