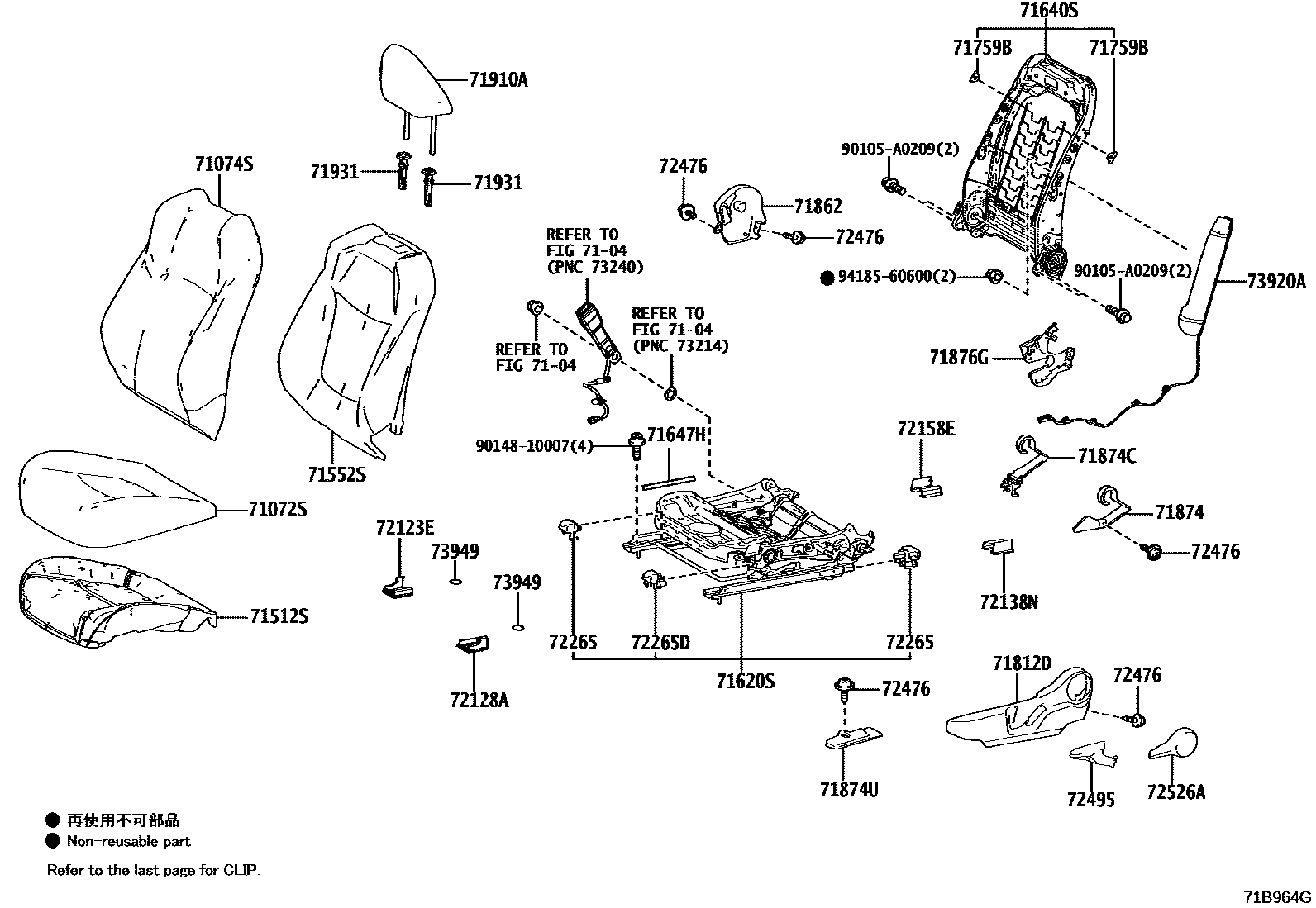

FRONT SEAT & SEAT TRACK

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0ZQ70-B0i201909-202102
GRAY,TRIM1#
main71072-0ZQ70-C0i201909-202201
BLACK,TRIM2#
main71072-0ZQ80-B0i201909-202008
NEUTRAL WARM GRAY,TRIM1#; UP GRADE PACKAGE,NEUTRAL WARM GRAY,TRIM1#
main71072-0ZQ80-C0i201909-202008
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZQ81-C3i202008-202102
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZQ82-C3i202102-202201
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZQ83-C3i202302-202309
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZQ90-C0i201909-202008
BLACK,TRIM2#
main71072-0ZQ90-E0i201909-202008
ORCHID BROWN,TRIM0#
main71072-0ZQ91-C1i202201-202301
BLACK,TRIM2#
main71072-0ZQ91-E1i202201-202301
ORCHID BROWN,TRIM0#
main71072-0ZQ92-C1i202309-202412
BLACK,TRIM2#
main71072-0ZQ92-E1i202412
ORCHID BROWN,TRIM0#
main71072-0ZU20-C0i201909-202008
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZU21-C1i202412
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71072-0ZU21-C2i202201-202309
BLACK/SHELL,TRIM2#; UP GRADE PACKAGE,BLACK/SHELL,TRIM2#
main71072-0ZM60-C1i202412
GR SPORT&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/GR RED,TRIM2#; GR SPORT,BLACK/GR RED,TRIM2#
main71072-0ZM60-C2i202201-202309
GR SPORT,BLACK/GR RED,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0ZP40-C0i202309-202412
BLACK,TRIM2#
main71074-0ZP50-C0i202412
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-0ZP60-C0i202412
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-0ZX10-B0i201909-202102
LT. GRAY,TRIM1#
main71074-0ZX10-C0i201909-202201
BLACK,TRIM2#
main71074-0ZX20-A2i201909-202008
FROMAGE,TRIM0#
main71074-0ZX20-B2i201909-202008
LT.GRAY,TRIM1#; UP GRADE PACKAGE,LT.GRAY,TRIM1#
main71074-0ZX20-C3i201909-202008
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-0ZX21-C5i202008-202201
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-0ZX22-C5i202201-202309
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-F2220-C1i201909-202008
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-F2221-C2i202008-202201
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71074-F2221-C3i202201-202309
BLACK/SHELL,TRIM2#; UP GRADE PACKAGE,BLACK/SHELL,TRIM2#
main71074-F2780-C0i202412
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(PVC),BLACK,TRIM2#
main71074-0ZP50-A0supersedes 71074-0ZX22-A3i202412
SEAT COVER MATERIAL-LEATHER,FROMAGE,TRIM0#
main71074-0ZP70-C0i202412
GR SPORT&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/GR RED,TRIM2#; GR SPORT,BLACK/GR RED,TRIM2#
main71074-0ZX80-C1i202102-202201
GR SPORT,BLACK/GR RED,TRIM2#
main71074-0ZX80-C2i202201-202309
GR SPORT,BLACK/GR RED,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-02C60i202309-202412
main71512-02C70i201909-202201
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-02F20i202412
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-02660i202309
main71620-02670i202412
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-02C30i202201-202309
main71640-02C40i202412
71647HPROTECTOR, FRONT SEAT CUSHION EDGE
main71537-02150×2i202412
71759BHOOK, FRONT SEATBACK
main71759-02060×4i201909-202201
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02C50-C0i201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
main71812-02C60-C0i202201-202309
BLACK,TRIM0#; BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-02500-C0i202412
BLACK,TRIM0#,2#; BLACK,TRIM2#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-02490-C0i202201-202309
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71874CSHIELD, FRONT SEAT CUSHION, LOWER
main71873-02350-C0i201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-02500-C0i202201-202309
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-02400-C0i202309-202412
BLACK,TRIM2#
main71876-02420-C0i202412
BLACK,TRIM0#,2#; BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-02U40-B0×2i201909-202102
LT. GRAY,TRIM1#
main71910-02U40-C0×2i201909-202201
BLACK,TRIM2#
main71910-02U41-C0×2i202201-202209
BLACK,TRIM2#
main71910-02U42-C0×2i202309
BLACK,TRIM2#
main71910-02U50-A0×2i201909-202104
FROMAGE,TRIM0#
main71910-02U50-B0×2i201909-202102
LT.GRAY,TRIM1#; UP GRADE PACKAGE,LT.GRAY,TRIM1#
main71910-02U50-C0×2i201909-202104
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U50-C2×2i201909-202104
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U51-A0×2i202104-202201
FROMAGE,TRIM0#
main71910-02U51-C0×2i202104-202201
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U51-C2×2i202104-202201
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U52-A0×2i202201-202209
FROMAGE,TRIM0#
main71910-02U52-C0×2i202201-202209
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U52-C2×2i202201-202209
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U53-A0×2i202210-202309
FROMAGE,TRIM0#
main71910-02U53-A1×2i202309-202412
FROMAGE,TRIM0#
main71910-02U53-C0×2i202210-202309
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02U53-C2×2i202210-202309
BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#
main71910-02X80-C0×2i202102-202104
GR SPORT,BLACK/GR RED,TRIM2#
main71910-02X81-C0×2i202104-202201
GR SPORT,BLACK,TRIM2#
main71910-02X82-C0×2i202201-202209
GR SPORT,BLACK,TRIM2#
main71910-02X83-C0×2i202210-202309
GR SPORT,BLACK,TRIM2#
main71910-02X83-C1×2i202309-202412
COLOMBIA SPEC&GR SPORT,BLACK/GR RED,TRIM2#; GR SPORT,BLACK/GR RED,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02470-A0×2i202412
W(LOCK),FROMAGE,TRIM0#
main71930-02470-B0×2i201909-202102
W(LOCK),LT.GRAY,TRIM1#
main71930-02470-C0×2i202309
W(LOCK),BLACK,TRIM2#
main71931-02200-A0×2i201909-202201
W/O(LOCK),FROMAGE,TRIM0#
main71931-02200-B0×2i201909-202102
W/O(LOCK),LT.GRAY,TRIM1#
main71931-02200-C0×2i202309
W/O(LOCK),BLACK,TRIM2#
72123ECOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-02080i202309-202412
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-02170i201909-202201
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72138-02350i201909-202201
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-02370i201909-202201
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-02130×4i201909-202201
72265DCOVER, SEAT TRACK UPPER RAIL
main72266-02060×3i202412
72476SCREW, HORIZONTAL JACK, INNER
main72476-06020×8i201909-202201
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-02130-C0i202201-202309
BLACK,TRIM1#,2#; BLACK,TRIM2#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-02310-C0i201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02380i201909-202201
73949CAP
main71848-02120×4i202201-202309
90105A0209
main90105-A0209
9014810007
main90148-10007
9418560600
main94185-60600

31 parts on this diagram · 4 diagrams in section
