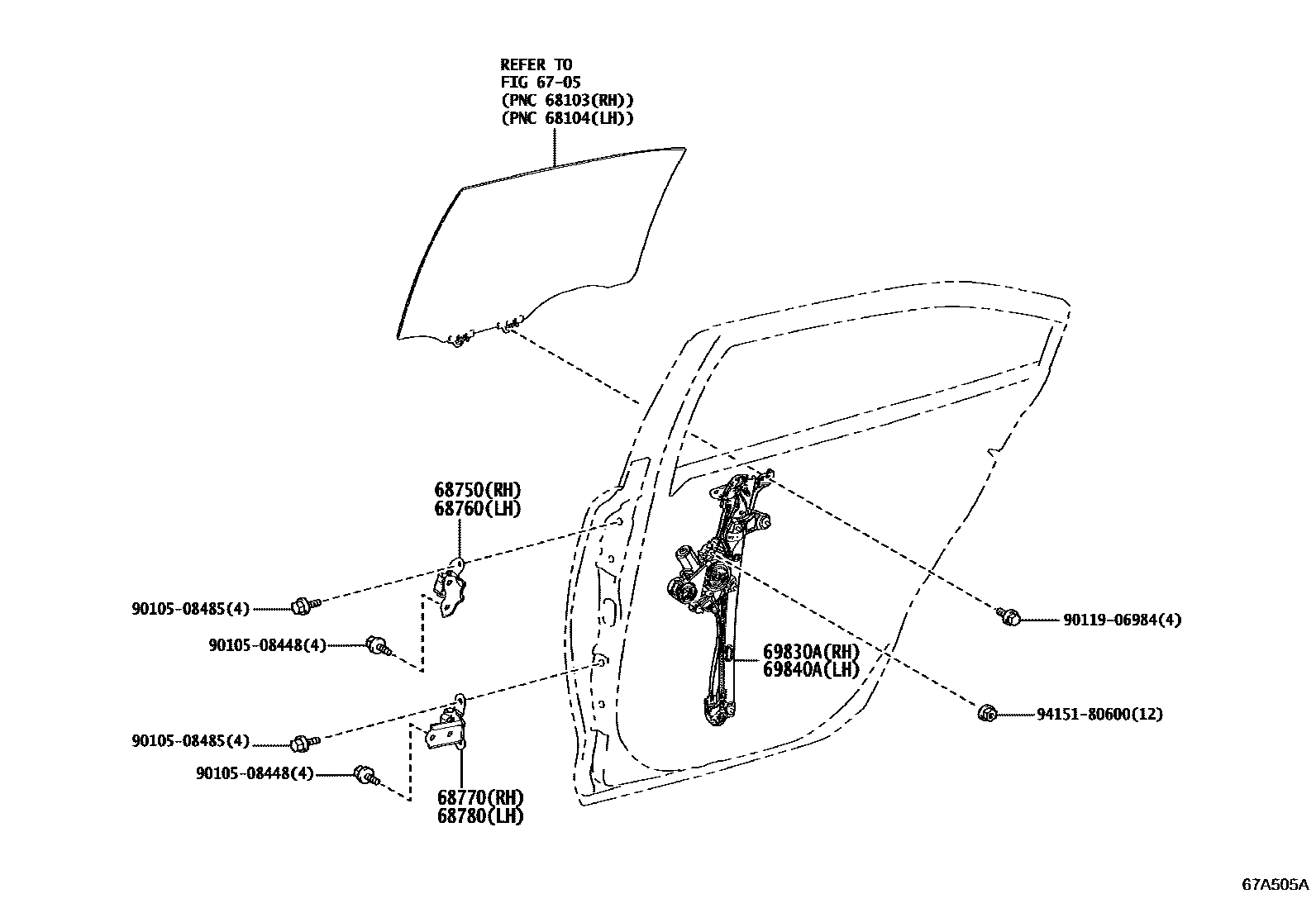

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02090iMZEA12,ZRE210,ZWE211201909-202201

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02090iMZEA12,ZRE210,ZWE211201909-202201

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02120iMZEA12,ZRE210,ZWE211201909-202201

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02120iMZEA12,ZRE210,ZWE211201909-202201

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02720iMZEA12,ZRE210,ZWE211201909-202201

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02730iMZEA12,ZRE210,ZWE211201909-202201

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
