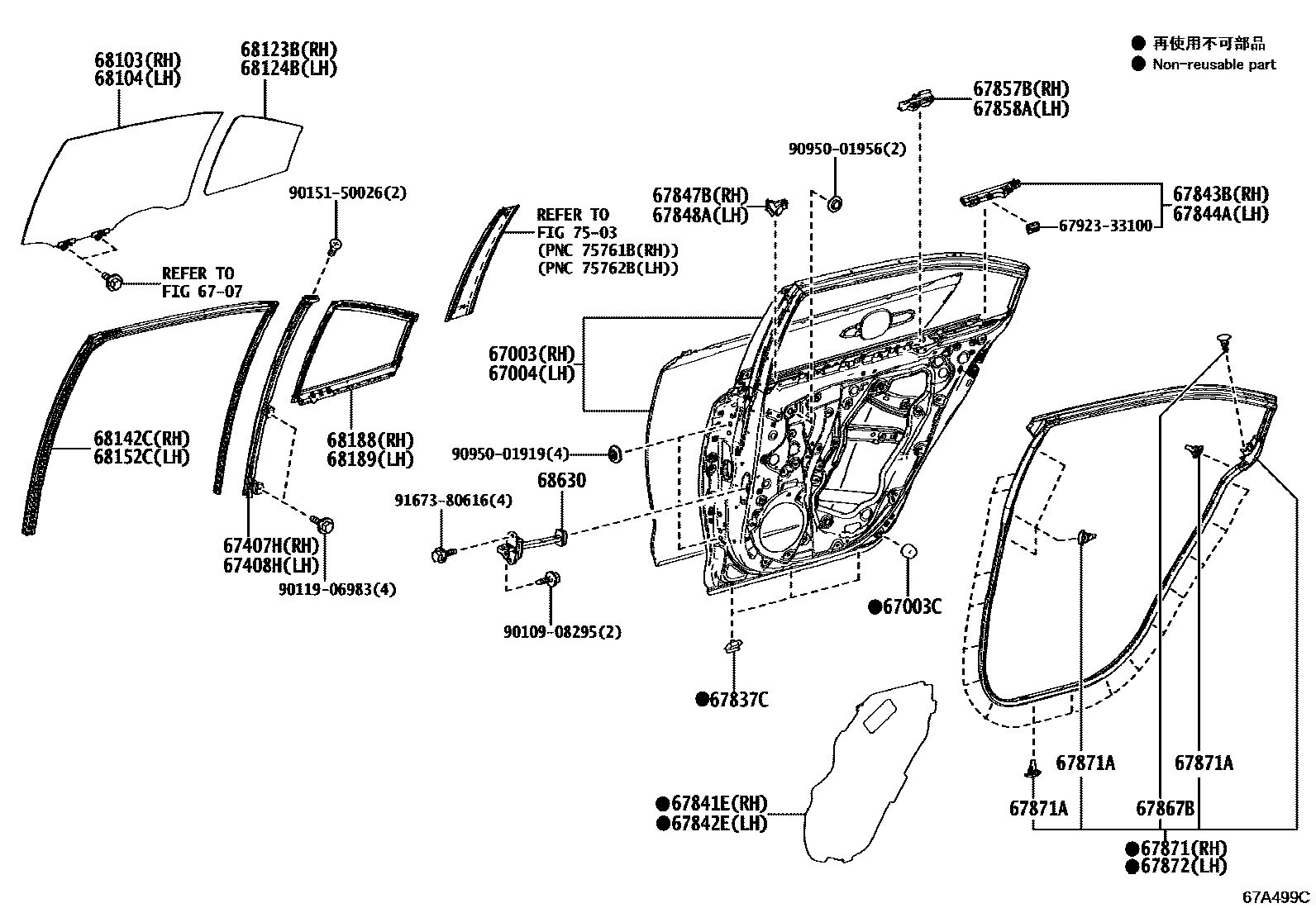

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02600iMZEA12,ZRE210,ZWE211201909-202101

main67003-02601iMZEA12,ZRE210,ZWE211202102-202201

67003CCUSHION, REAR DOOR PANEL

main90541-09124×2iZRE210..6F202309

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02610iMZEA12,ZRE210,ZWE211201909-202101

main67004-02611iZRE210..6F202309

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-12360iMZEA12,ZRE210,ZWE211202201-202309

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-12360iMZEA12,ZRE210,ZWE211202201-202309

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050iMZEA12,ZRE210,ZWE211202201-202309

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02490iMZEA12,ZRE210,ZWE211202201-202309

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02460iMZEA12,ZWE211202412

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-02040iZRE210..6F202309

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-02040iMZEA12,ZRE210,ZWE211202201-202309

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02120iMZEA12,ZRE210,ZWE211202201-202309

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-02060iMZEA12,ZRE210,ZWE211202201-202309

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-02130iMZEA12,ZRE210,ZWE211202201-202309

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-02130iMZEA12,ZRE210,ZWE211..CVT202309-202412

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×2iMZEA12,ZRE210,ZWE211..CVT202309-202412

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02380iMZEA12,ZRE210,ZWE211..CVT202309-202412

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150×40iZRE210..6F202309

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02380iMZEA12,ZRE210,ZWE211201909-202201

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02640iMZEA12,ZRE210,ZWE211202201-202212

main68103-02641iZRE210..6F202309

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02640iMZEA12,ZRE210,ZWE211201909-202201

main68104-02641iZRE210..6F202309

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02560iMZEA12,ZRE210,ZWE211201909-202201

main68123-02561iZRE210..6F202309

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02560iMZEA12,ZRE210,ZWE211201909-202201

main68124-02561iZRE210..6F202309

68142CRUN, REAR DOOR GLASS, RH

main68142-02410iZRE210..6F202309

68152CRUN, REAR DOOR GLASS, LH

main68152-02410iMZEA12,ZWE211202412

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02300iZRE210..6F202309

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02300iZRE210..6F202309

68630CHECK ASSY, REAR DOOR

main68630-02400×2iZRE210..6F202309

7503SIDE MOULDING

→ Go to FIG 75-03

6792333100CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-33100

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001919

main90950-01919

9095001956

main90950-01956

9167380616

main91673-80616

36 parts on this diagram · 2 diagrams in section
