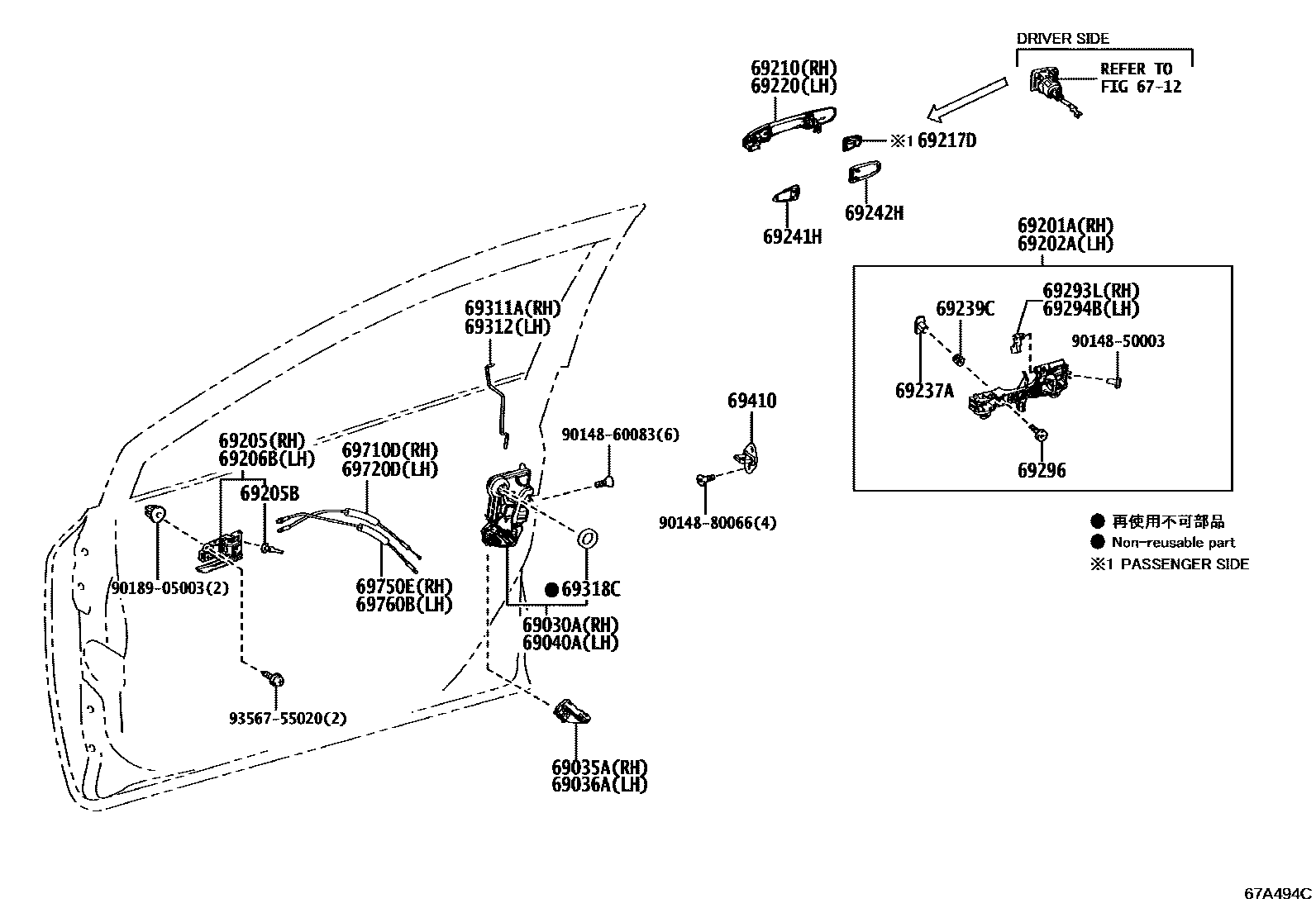

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02530iMZEA12,ZRE210,ZWE211201909-202412

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02010iMZEA12,ZRE210,ZWE211201909-202412

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02010iMZEA12,ZRE210,ZWE211201909-202412

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02510iMZEA12,ZRE210,ZWE211201909-202412

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02330iMZEA12,ZRE210,ZWE211201909-202412

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02270iMZEA12,ZWE211201909-202412

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02410-B0iMZEA12..D..AGT;MZEA12,ZRE210,ZWE211..(D,N)..GEN201909-202102

LT.GRAY,TRIM1#

main69205-02410-C1iMZEA12..N..GEN;MZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..GEN201909-202412

BLACK,TRIM2#

main69205-02420-A0iMZEA12,ZWE211..E..BZ201909-202412

FROMAGE,TRIM0#

main69205-02420-B0iMZEA12,ZWE211..(E,N)..AGT201909-202102

LT.GRAY,TRIM1#

main69205-02420-C0iMZEA12..N..GEN201909-202412

BLACK,TRIM2#

main69205-02420-C0iMZEA12,ZWE211..N..(AGT,BZ);MZEA12,ZWE211..E..(AGT,GEN)202309-202412

GR SPORT,BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iMZEA12,ZRE210,ZWE211201909-202412

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02390-B0iMZEA12..D..AGT;MZEA12,ZRE210,ZWE211..(D,N)..GEN201909-202102

LT.GRAY,TRIM1#

main69206-02390-C1iMZEA12,ZWE211..N..BZ201909-202412

BLACK,TRIM2#

main69206-02400-A0iMZEA12,ZWE211..E..BZ201909-202412

FROMAGE,TRIM0#

main69206-02400-B0iMZEA12,ZWE211..(E,N)..AGT201909-202102

LT.GRAY,TRIM1#

main69206-02400-C0iMZEA12..N..GEN202309-202412

GR SPORT,BLACK,TRIM2#

main69206-02400-C0iMZEA12,ZWE211..E;MZEA12,ZWE211..N..AGT201909-202412

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-47051-A0iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)202201-202412

GR SPORT,SUPER WHITE 2,040

main69210-47051-A0iMZEA12..CVT..N..AGT201909-202412

UP GRADE PACKAGE,SUPER WHITE 2,040

main69210-47051-A0iMZEA12..CVT..N..AGT201909-202412

SUPER WHITE 2,040

main69210-47051-A1iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202102

UP GRADE PACKAGE,WHITE PEARL CS.,070

main69210-47051-A1iMZEA12..N..AGT201909-202102

WHITE PEARL CS.,070

main69210-47051-A2iZWE211;MZEA12..E;MZEA12..N..GEN202102-202412

PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iMZEA12..N..BZ202102-202412

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47051-A2iMZEA12..N..BZ202102-202412

UP GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47051-A2iMZEA12..N..BZ202102-202309

UP GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iMZEA12..N..BZ202102-202412

GR SPORT,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47051-B1iMZEA12..N..AGT202102-202412

GRAY ME.,1G3

main69210-47051-B1iMZEA12..CVT..N..AGT202102-202412

UP GRADE PACKAGE,GRAY ME.,1G3

main69210-47051-B1iMZEA12..CVT..N..AGT202102-202412

GR SPORT,GRAY ME.,1G3

main69210-47051-B4iMZEA12..N..AGT201909-202412

UP GRADE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-47051-B4iMZEA12..N..AGT202201-202412

GR SPORT,CELESTITE GRAY ME.,1K3

main69210-47051-B4iMZEA12..N..AGT201909-202412

CELESTITE GRAY ME.,1K3

main69210-47051-B8iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

SILVER M.M.,1E7

main69210-47051-B8iMZEA12..N..AGT202201-202412

GR SPORT,SILVER M.M.,1E7

main69210-47051-B8iMZEA12..N..AGT201909-202412

UP GRADE PACKAGE,SILVER M.M.,1E7

main69210-47051-C2iMZEA12..N..AGT202201-202412

GR SPORT,BLACK MC.,209

main69210-47051-C2iMZEA12..N..AGT201909-202412

UP GRADE PACKAGE,BLACK MC.,209

main69210-47051-C2iMZEA12..N..AGT201909-202412

BLACK MC.,209

main69210-47051-D2iMZEA12..N..BZ201909-202309

UP GRADE PACKAGE,RED M.M.,3R3

main69210-47051-D2iZWE211;MZEA12..E;MZEA12..N..GEN201909-202412

RED M.M.,3R3

main69210-47051-D2iZWE211;MZEA12..E;MZEA12..N..GEN201909-202412

UP GRADE PACKAGE,RED M.M.,2NU ,3R3

main69210-47051-D2iMZEA12..CVT..N..AGT201909-202412

RED M.M.,2NU ,3R3

main69210-47051-D2iMZEA12..N..BZ202201-202412

GR SPORT,RED M.M.,2NU ,3R3

main69210-47051-E3iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202102

PHANTOM BROWN ME.,4W9

main69210-47051-E3iMZEA12..N..AGT201909-202102

UP GRADE PACKAGE,PHANTOM BROWN ME.,4W9

main69211-02941iZRE210;MZEA12..D;MZEA12..N..AGT201909-202412

PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02590iMZEA12,ZRE210,ZWE211201909-202412

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-47041-A0iMZEA12..N..AGT201909-202412

SUPER WHITE 2,040

main69210-47041-A0iMZEA12..CVT..N..AGT202201-202412

GR SPORT,SUPER WHITE 2,040

main69210-47041-A0iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

UP GRADE PACKAGE,SUPER WHITE 2,040

main69210-47041-A1iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202102

UP GRADE PACKAGE,WHITE PEARL CS.,070

main69210-47041-A1iMZEA12..N..AGT201909-202102

WHITE PEARL CS.,070

main69210-47041-A2iMZEA12..N..AGT202102-202412

GR SPORT,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47041-A2iMZEA12..N..AGT202102-202412

UP GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47041-A2iMZEA12..N..AGT202102-202412

PLATINUM WHITE PEARL MC.,089

main69210-47041-A2iMZEA12..N..AGT202102-202412

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-47041-A2iMZEA12..N..BZ202102-202309

UP GRADE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-47041-B1iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)202102-202412

UP GRADE PACKAGE,GRAY ME.,1G3

main69210-47041-B1iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)202102-202412

GR SPORT,GRAY ME.,1G3

main69210-47041-B1iMZEA12..N..AGT202102-202412

GRAY ME.,1G3

main69210-47041-B4iMZEA12..N..AGT202201-202412

GR SPORT,CELESTITE GRAY ME.,1K3

main69210-47041-B4iMZEA12..N..AGT201909-202412

CELESTITE GRAY ME.,1K3

main69210-47041-B4iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

UP GRADE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-47041-B8iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

SILVER M.M.,1E7

main69210-47041-B8iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

UP GRADE PACKAGE,SILVER M.M.,1E7

main69210-47041-B8iMZEA12..N..AGT202201-202412

GR SPORT,SILVER M.M.,1E7

main69210-47041-C2iMZEA12..N..AGT201909-202412

UP GRADE PACKAGE,BLACK MC.,209

main69210-47041-C2iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202412

BLACK MC.,209

main69210-47041-C2iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)202201-202412

GR SPORT,BLACK MC.,209

main69210-47041-D2iMZEA12..CVT..N..AGT201909-202309

UP GRADE PACKAGE,RED M.M.,3R3

main69210-47041-D2iZWE211;MZEA12..E;MZEA12..N..GEN201909-202412

RED M.M.,3R3

main69210-47041-D2iMZEA12..N..BZ201909-202412

UP GRADE PACKAGE,RED M.M.,2NU ,3R3

main69210-47041-D2iMZEA12..N..BZ202201-202412

GR SPORT,RED M.M.,2NU ,3R3

main69210-47041-D2iMZEA12..N..BZ201909-202412

RED M.M.,2NU ,3R3

main69210-47041-E3iMZEA12..N..AGT201909-202102

UP GRADE PACKAGE,PHANTOM BROWN ME.,4W9

main69210-47041-E3iZWE211;MZEA12..E..AGT;MZEA12..(E,N)..(BZ,GEN)201909-202102

PHANTOM BROWN ME.,4W9

main69211-02942iZRE210..6F201909-202412

PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-0K070iMZEA12,ZWE211201909-202412

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMZEA12,ZRE210,ZWE211..CVT201909-202412

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02260iMZEA12,ZWE211201909-202412

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02250iMZEA12,ZRE210,ZWE211201909-202412

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMZEA12,ZWE211201909-202412

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZRE210..6F201909-202412

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iMZEA12,ZRE210,ZWE211201909-202301

main90148-50006iMZEA12,ZRE210,ZWE211..CVT202301-202412

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02390iMZEA12,ZRE210,ZWE211..CVT201909-202412

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02390iMZEA12,ZRE210,ZWE211201909-202412

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEA12,ZWE211201909-202412

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02090iZRE210..6F201909-202412

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-02400iZRE210..6F201909-202412

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-02400iMZEA12,ZRE210,ZWE211201909-202412

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-02430iZRE210..6F201909-202412

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-02430iMZEA12,ZRE210,ZWE211..CVT201909-202412

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

33 parts on this diagram · 1 diagram in section
