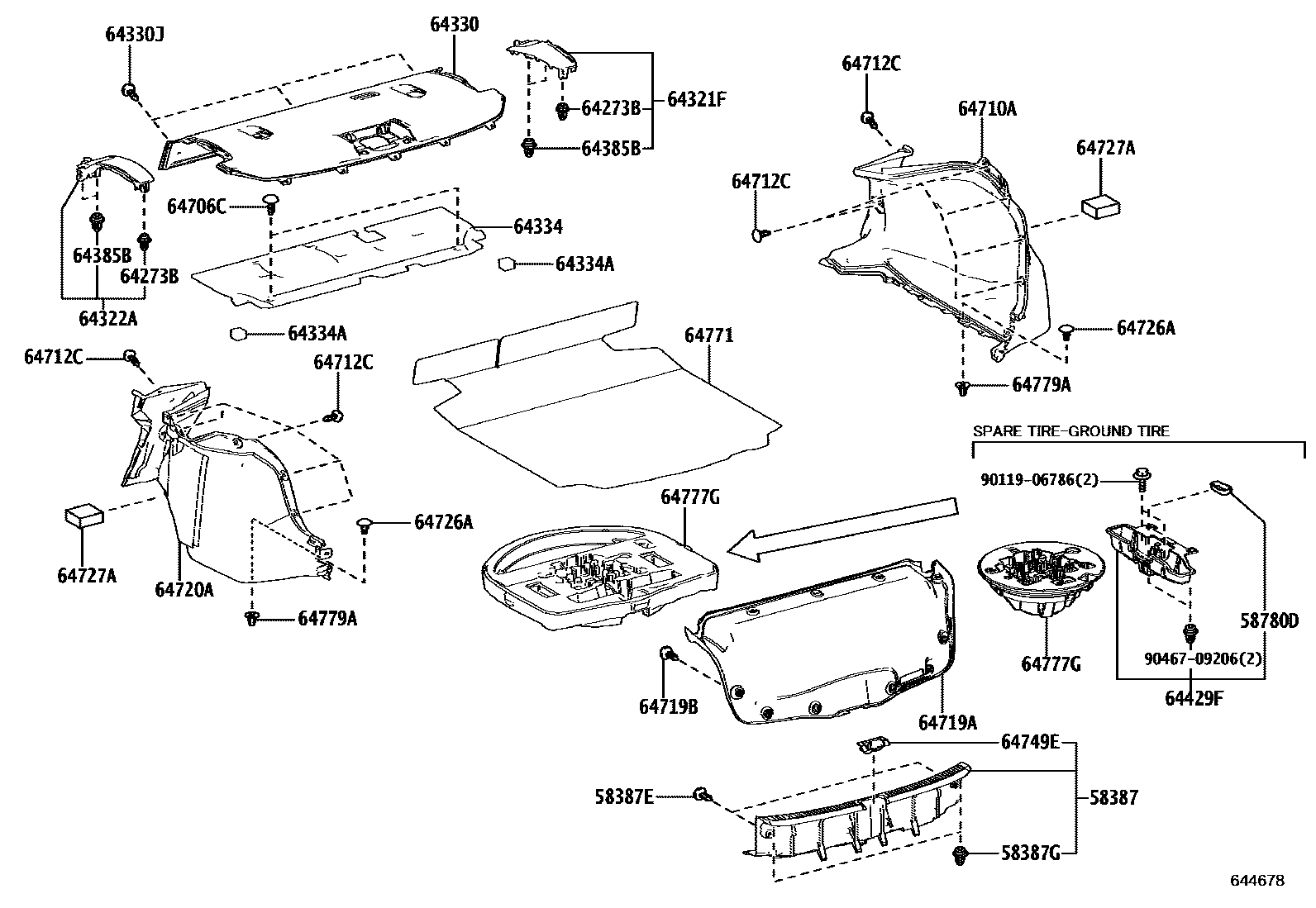

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
main58387-02380-C0supersedes 58387-02430-C0iMZEA12..BZ;ZWE211..E..BZ; MZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#; PARAGUAY SPEC,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,2#; BLACK,TRIM2#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-08186-C3×2iMZEA12,ZWE211..(E,N)..BZ; MZEA12,ZWE211..D..BZ; MZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58780DBAND ASSY, TOOL BOX
64273BCLIP
64321FBRACKET, PACKAGE TRAY TRIM, RH
main64301-02100-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64322ABRACKET, PACKAGE TRAY TRIM, LH
main64302-02100-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-02J00-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08186-C3×3iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64334PAD, PACKAGE TRAY TRIM SILENCER
64334APAD, PACKAGE TRAY TRIM
64385BCLIP
64429FBOX, LUGGAGE COMPARTMENT TRIM
64706CCLIP
main90467-06020-C4×2iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
main64710-02510-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-08186-C3×12iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-02330-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-08186-C3×11iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
main64720-02490-C0iMZEA12,ZWE211..E..(AGT,GEN);MZEA12,ZRE210,ZWE211..CVT..(D,N); MZEA12,ZWE211..E..BZ202309-202412
BLACK,TRIM0#; BLACK,TRIM2#
64726ACLIP, LUGGAGE TRIM, REAR
BLACK,TRIM0#,2#; BLACK,TRIM2#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-02130-C0iMZEA12,ZWE211..(E,N)..BZ; MZEA12,ZWE211..D..BZ; MZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN; MZEA12..N..AGT;MZEA12,ZWE211..E..(AGT,GEN)201909-202201
BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#,2#; BLACK,TRIM2#
64771COVER, SPARE WHEEL
main64771-02590-C0iMZEA12,ZWE211..E..BZ; MZEA12..D..GEN;MZEA12..(D,N)..AGT; ZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..(AGT,GEN);MZEA12..CVT..(D,N)..(BZ,GEN)202201-202309
BLACK,TRIM0#; BLACK,TRIM1#,2#; BLACK,TRIM2#
64779ASTOPPER, SPARE WHEEL COVER
9011906786
main90119-06786
9046709206
main90467-09206
27 parts on this diagram · 1 diagram in section
