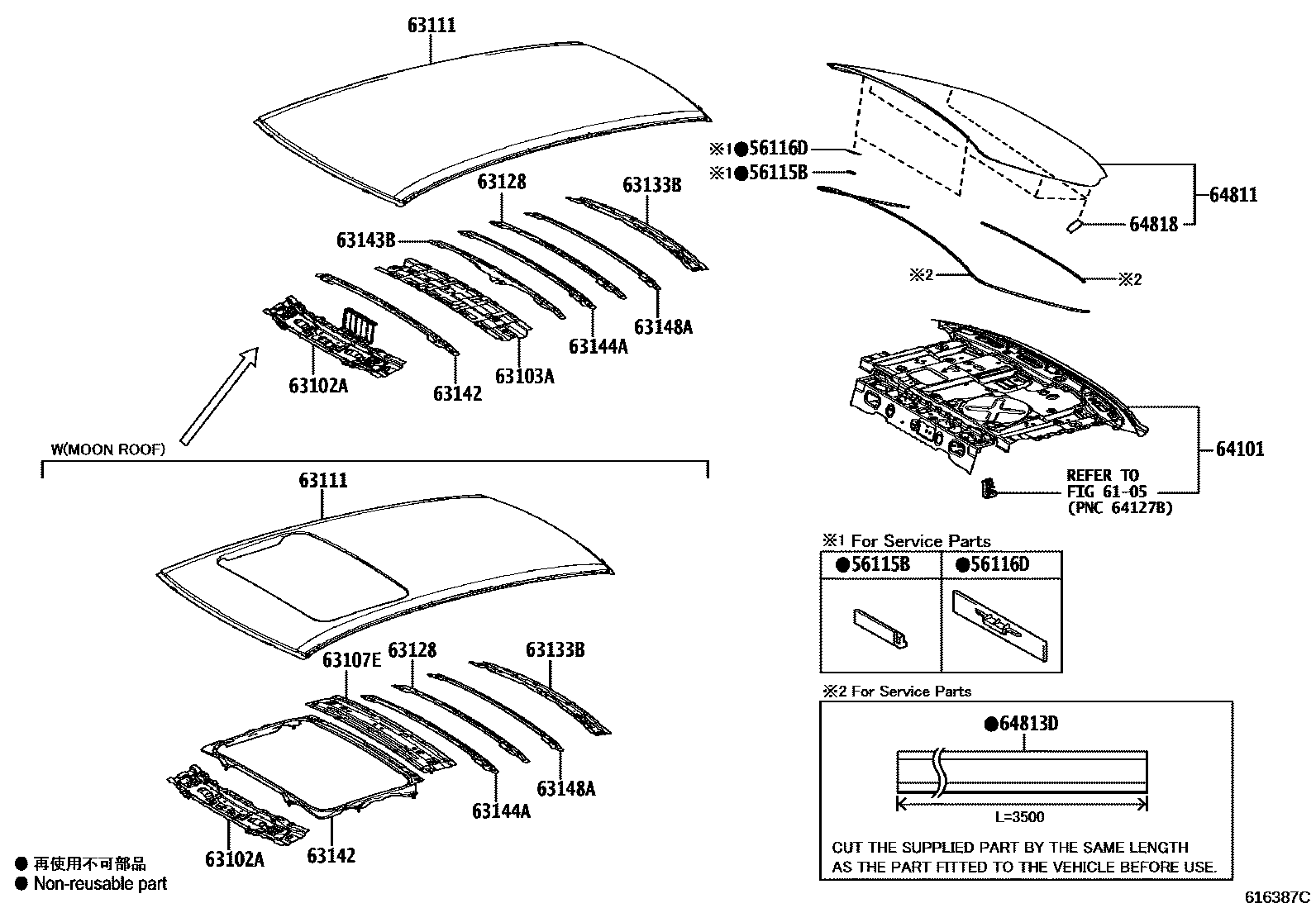

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iMZEA12,ZRE210,ZWE211..CVT202309-202412

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iMZEA12,ZWE211202412

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02909supersedes 63102-02910iMZEA12..E..BZ;MZEA12..N..AGT; ZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12,ZRE210..(D,N)..(BZ,GEN)202201-202309

MOON ROOF-WITHOUT

main63102-02910iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ); ZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN202309-202412

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-02170iZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12,ZRE210..(D,N)..(BZ,GEN); ZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ)201909-202201

MOON ROOF-WITHOUT

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-02030iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ); ZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN201909-202201

MOON ROOF-WITH

63111PANEL, ROOF

main63111-02790supersedes 63111-02800iMZEA12..E..BZ;MZEA12..N..AGT; ZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12,ZRE210..(D,N)..(BZ,GEN)202201-202309

MOON ROOF-WITHOUT

main63111-02800iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ); ZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN202309-202412

MOON ROOF-WITH

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-02110iMZEA12,ZRE210,ZWE211202201-202309

63133BFRAME, BACK WINDOW

main63133-02250iZRE210..6F202309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-02170iZWE211..E..BZ;MZEA12..N..AGT;MZEA12..E..(AGT,BZ); ZWE211..N..BZ;MZEA12..N..(BZ,GEN);MZEA12,ZWE211..E..GEN202309-202412

MOON ROOF-WITH

main63142-02220supersedes 63104-02170iMZEA12..N..AGT; ZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12..(D,N)..(BZ,GEN)202412

MOON ROOF-WITHOUT

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02270iMZEA12..N..AGT; ZWE211..D,N;MZEA12..D..AGT;MZEA12..E..GEN;ZWE211..E..(AGT,GEN);MZEA12,ZRE210..CVT..(D,N)..(BZ,GEN)202309-202412

MOON ROOF-WITHOUT

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-02280iMZEA12,ZRE210,ZWE211201909-202201

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-02160iMZEA12,ZRE210,ZWE211201909-202201

64101PANEL SUB-ASSY, UPPER BACK

main64101-02670iMZEA12,ZRE210,ZWE211201909-202201

main64101-02671iMZEA12,ZWE211202412

64811GLASS, BACK WINDOW

main64801-02460iMZEA12,ZRE210,ZWE211202201-202212

main64801-02461iMZEA12,ZRE210,ZWE211202301-202309

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iMZEA12,ZWE211202412

64818SPACER, BACK WINDOW GLASS

main62785-02020×4iMZEA12,ZRE210,ZWE211202201-202309

(L)

main62785-60030×4iMZEA12,ZWE211202412

(J)

17 parts on this diagram · 2 diagrams in section
