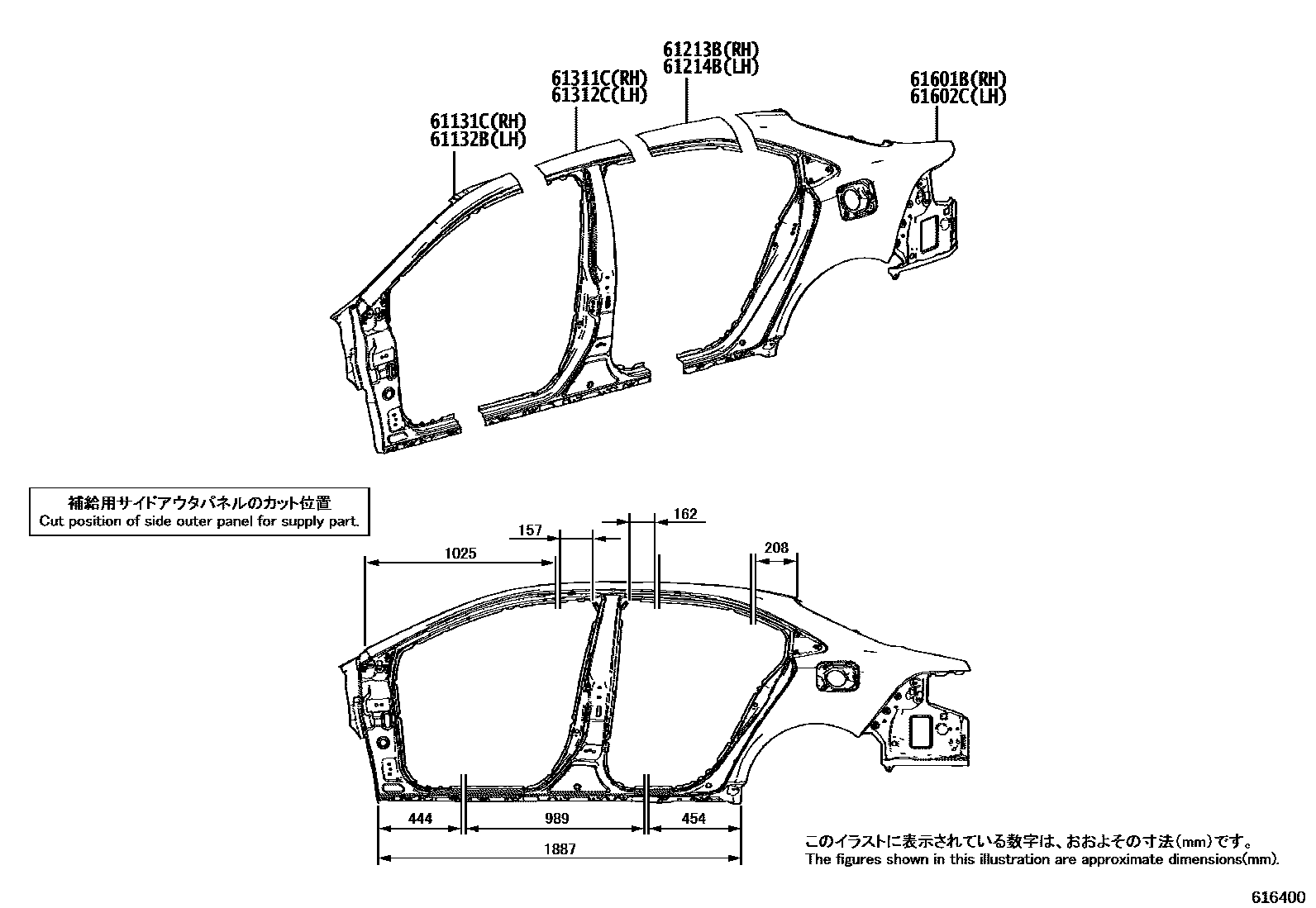

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02480iMZEA12,ZRE210,ZWE211201909-202412

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02500iMZEA12,ZRE210,ZWE211201909-202412

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02310iMZEA12,ZRE210,ZWE211201909-202412

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02320iMZEA12,ZRE210,ZWE211201909-202412

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02420iMZEA12,ZRE210,ZWE211201909-202412

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02420iMZEA12,ZRE210,ZWE211201909-202412

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02630iMZEA12,ZRE210,ZWE211201909-202412

main61601-02690iMZEA12,ZWE211..(E,N)..GEN202309-202412

UP GRADE PACKAGE

main61601-02690iMZEA12,ZWE211..E..(AGT,BZ)202309-202412

GR SPORT

main61601-02690iMZEA12,ZWE211..E..(AGT,BZ)202309-202412

BLIND SPOT MONITOR-WITH

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02660iMZEA12,ZRE210,ZWE211201909-202412

main61602-02720iMZEA12..N..(AGT,BZ)202309-202412

UP GRADE PACKAGE

main61602-02720iMZEA12..N..(AGT,BZ)202309-202412

BLIND SPOT MONITOR-WITH

main61602-02720iMZEA12..N..AGT202309-202412

GR SPORT

8 parts on this diagram · 3 diagrams in section
