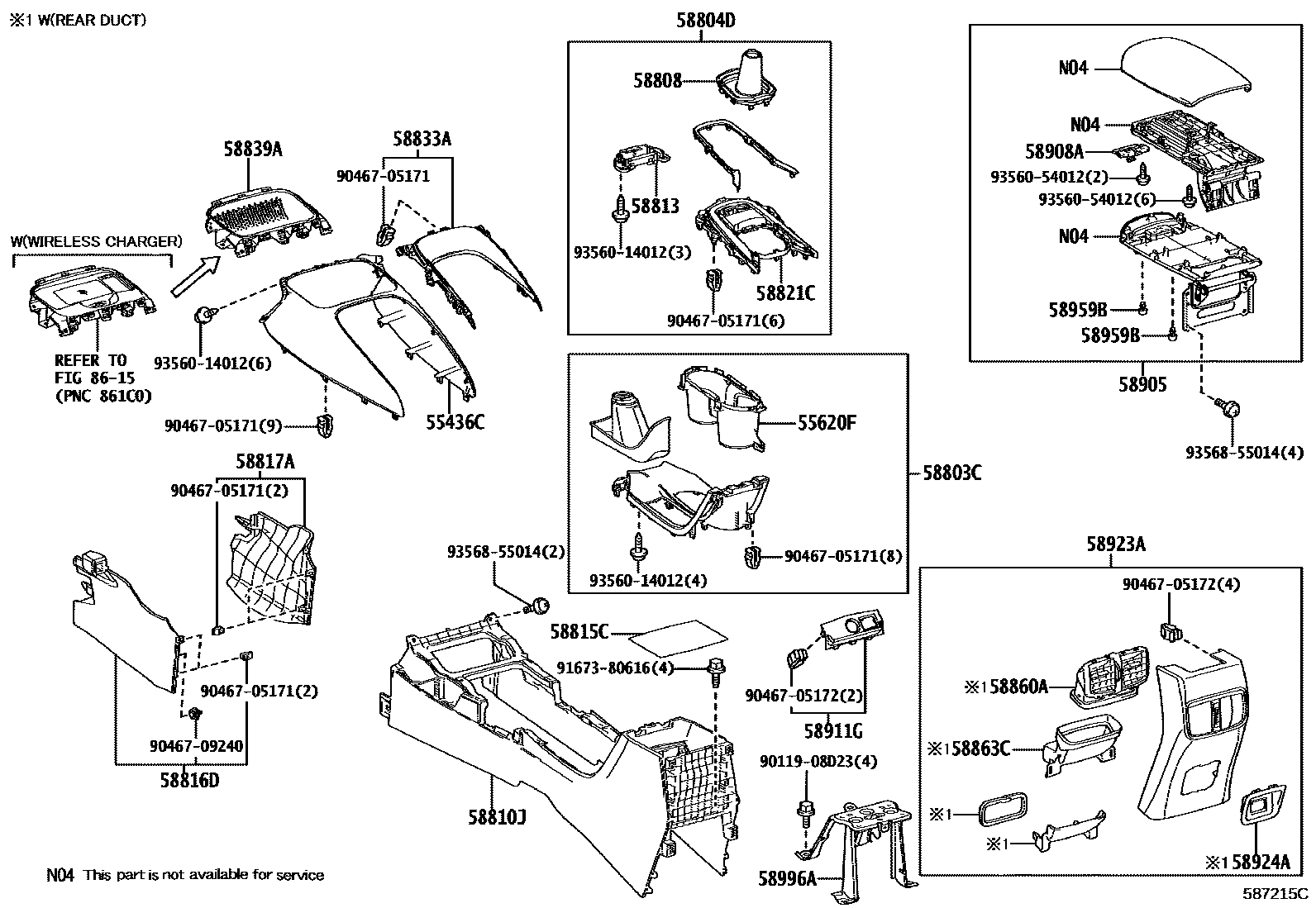

CONSOLE BOX & BRACKET

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-02500-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main55436-02500-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN201909-202201

BLACK,TRIM0#,1#,2#

main55436-02500-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main55436-02500-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main55436-02500-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-02330iMZEA12,ZRE210,ZWE211201909-202412

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-02290-C0iZWE211..D201909-202003

BLACK,TRIM2#

main58803-02290-C0iZWE211..D201909-202003

UP GRADE PACKAGE,BLACK,TRIM2#

main58803-02290-C0iMZEA12,ZWE211..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202010

BLACK,TRIM0#,1#,2#

main58803-02290-C0iMZEA12,ZWE211..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202010

UP GRADE PACKAGE,BLACK,TRIM0#,1#,2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202309-202412

GR SPORT,BLACK,TRIM2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202010-202412

BLACK,TRIM0#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202010-202412

BLACK,TRIM2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202010-202412

UP GRADE PACKAGE,BLACK,TRIM2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202201-202412

COLOMBIA SPEC,BLACK,TRIM2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202201-202309

GR SPORT,BLACK,TRIM1#,2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202201-202309

UP GRADE PACKAGE,BLACK,TRIM1#,2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202309-202412

COLOMBIA SPEC&GR SPORT,BLACK,TRIM2#

main58803-02290-C2iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

main58803-02300-C0iMZEA12..D;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202010

BLACK,TRIM1#,2#

main58803-02300-C0iZWE211..D202003-202010

BLACK,TRIM2#

main58803-02300-C2iMZEA12..D..(AGT,GEN)202010-202412

BLACK,TRIM2#

main58803-02300-C2iMZEA12..D..(AGT,GEN)202201-202309

BLACK,TRIM1#,2#

58804DPANEL SUB-ASSY, CONSOLE, UPPER FRONT

main58804-12230-C2iMZEA12..6F..D;MZEA12..6F..N..AGT202201-202309

BLACK,TRIM2#

main58804-12230-C2iZRE210..6F;MZEA12..6F..N..GEN201909-202309

BLACK,TRIM1#,2#

main58804-12230-C2iMZEA12..6F..N..AGT201909-202201

BLACK,TRIM0#,1#,2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12490-C0iMZEA12..6F..N..AGT201909-202201

BLACK,TRIM0#,1#,2#

main58808-12490-C0iMZEA12..6F..N..AGT201909-202309

BLACK,TRIM1#,2#

main58808-12490-C0iMZEA12..6F..D;MZEA12..6F..N..AGT202201-202309

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-02070-C0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main58810-02070-C0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main58810-02070-C0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

UP GRADE PACKAGE,BLACK,TRIM0#,1#,2#

main58810-02070-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main58810-02070-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main58810-02070-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

58813BOX, CONSOLE, UPPER

main58813-12180iMZEA12,ZRE210..6F201909-202309

58815CCARPET, CONSOLE BOX

main58815-02470iZRE210..6F201909-202412

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-02440-C0iMZEA12..D..GEN;MZEA12..(D,N)..AGT201909-202309

BLACK,TRIM1#,2#

main58816-02440-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main58816-02440-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main58816-02440-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main58816-02440-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02450-C0iMZEA12,ZWE211..E..(AGT,GEN);MZEA12,ZRE210,ZWE211..CVT..(D,N)202201-202412

BLACK,TRIM2#

main58817-02450-C0iMZEA12,ZWE211..E..(AGT,GEN);MZEA12,ZRE210,ZWE211..CVT..(D,N)202201-202412

BLACK,TRIM0#

main58817-02450-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

main58817-02450-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main58817-02450-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

58821CPANEL, CONSOLE, UPPER

main58821-12370iZRE210..6F201909-202309

58833ACOVER, CONSOLE, UPPER

main58833-02150-A0iMZEA12,ZWE211..E..BZ201909-202412

FROMAGE,TRIM0#

main58833-02150-B0iMZEA12,ZRE210,ZWE211201909-202102

LT.GRAY,TRIM1#

main58833-02150-C0iMZEA12,ZWE211201909-202412

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-02330-C0iZRE210,ZWE211..D,N;MZEA12..6F..N..GEN;MZEA12,ZWE211..E..GEN;MZEA12..CVT..(D,N)..(BZ,GEN)201909-202309

BLACK,TRIM1#,2#

main58839-02330-C0iMZEA12,ZWE211..E..AGT201909-202201

BLACK,TRIM0#,1#,2#

main58839-02330-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main58839-02330-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main58839-02330-C0iZWE211..E..BZ202412

BLACK,TRIM0#,2#

58860AREGISTER ASSY, CONSOLE BOX

main58860-0A010iZWE211;MZEA12..E,N202309-202412

UP GRADE PACKAGE

main58860-0A010iZRE210..6F..N202309

58863CDUCT, CONSOLE BOX, NO.3

main58863-0A010iZRE210..6F..N202309

main58863-0A010iZWE211;MZEA12,ZRE210..CVT..(E,N)202309-202412

UP GRADE PACKAGE

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02E80-B0iMZEA12..D;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202102

GRAY,TRIM1#

main58905-02E80-C0iMZEA12..D;MZEA12..N..(AGT,GEN);ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202412

BLACK,TRIM2#

main58905-02E90-B0iMZEA12..D..BZ;MZEA12..N..AGT201909-202102

NEUTRAL WARM GRAY,TRIM1#

main58905-02E90-B0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202102

UP GRADE PACKAGE,NEUTRAL WARM GRAY,TRIM1#

main58905-02E90-C0iMZEA12..E;ZWE211..AGT,BZ;ZWE211..E..GEN202102-202412

BLACK,TRIM20

main58905-02E90-C0iMZEA12..E;ZWE211..AGT,BZ;ZWE211..E..GEN201909-202412

BLACK,TRIM2#

main58905-02E90-C0iMZEA12..E;ZWE211..AGT,BZ;ZWE211..E..GEN202102-202412

COLOMBIA SPEC,BLACK,TRIM2#

main58905-02E90-C0iMZEA12..E;ZWE211..AGT,BZ;ZWE211..E..GEN202102-202412

GR SPORT,BLACK,TRIM20

main58905-02E90-C0iMZEA12..E;ZWE211..AGT,BZ;ZWE211..E..GEN201909-202412

UP GRADE PACKAGE,BLACK,TRIM2#

main58905-02E90-C0iMZEA12..CVT..N..AGT202102-202309

UP GRADE PACKAGE,BLACK,TRIM20

main58905-02E90-C0iMZEA12..N..(AGT,BZ)202309-202412

COLOMBIA SPEC,BLACK,TRIM20

main58905-02E90-C0iMZEA12..N..(AGT,BZ)202309-202412

COLOMBIA SPEC&GR SPORT,BLACK,TRIM20

main58905-02E90-C1iMZEA12..N..(AGT,BZ)202102-202412

GR SPORT,BLACK/GR RED,TRIM20

main58905-02E90-C1iMZEA12..N..BZ202102-202412

BLACK/GR RED,TRIM20

main58905-02E90-C1iMZEA12..N..BZ202102-202309

UP GRADE PACKAGE,BLACK/GR RED,TRIM20

main58905-02E90-C1iMZEA12..N..(AGT,BZ)202309-202412

COLOMBIA SPEC,BLACK/GR RED,TRIM20

main58905-02E90-C1iMZEA12..N..(AGT,BZ)202309-202412

COLOMBIA SPEC&GR SPORT,BLACK/GR RED,TRIM20

main58905-02E90-E0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

UP GRADE PACKAGE,ORCHID BROWN,TRIM0#

main58905-02E90-E0iZWE211..BZ;MZEA12..(E,N)..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202412

ORCHID BROWN,TRIM0#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iMZEA12,ZRE210,ZWE211201909-202412

58911GPANEL, BOX, NO.1

main58911-02630-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202201

BLACK,TRIM0#,1#,2#

main58911-02630-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main58911-02630-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM0#

main58911-02630-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main58911-02630-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

58923APANEL, CONSOLE REAR END

main58923-02420-C0iMZEA12..D..AGT;ZWE211..N..(AGT,GEN);MZEA12,ZRE210..(D,N)..GEN201909-202201

BLACK,TRIM0#,1#,2#

main58923-02420-C0iMZEA12..N..AGT;MZEA12,ZWE211..BZ;MZEA12,ZWE211..E..(AGT,GEN)201909-202309

BLACK,TRIM1#,2#

main58923-02420-C0iMZEA12,ZWE211..E..BZ202201-202309

BLACK,TRIM0#

main58923-02420-C0iMZEA12,ZWE211..E..BZ202201-202412

BLACK,TRIM2#

main58923-02680-C0iZWE211..D,N;MZEA12,ZRE210..CVT..N;MZEA12,ZWE211..E..(AGT,GEN)202309-202412

BLACK,TRIM0#

main58923-02680-C0iZWE211..D,N;MZEA12,ZRE210..CVT..N;MZEA12,ZWE211..E..(AGT,GEN)202309-202412

BLACK,TRIM2#

main58923-02680-C0iZWE211..D,N;MZEA12,ZRE210..CVT..N;MZEA12,ZWE211..E..(AGT,GEN)202309-202412

UP GRADE PACKAGE,BLACK,TRIM2#

main58923-02680-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

58924APANEL, CONSOLE REAR END, NO.2

main58924-02240-C0iMZEA12..D..BZ202309-202412

UP GRADE PACKAGE,BLACK,TRIM2#

main58924-02240-C0iMZEA12,ZWE211..E..BZ202309-202412

BLACK,TRIM0#

main58924-02240-C0iMZEA12,ZWE211..E..BZ202309-202412

BLACK,TRIM2#

main58924-02240-C0iMZEA12,ZWE211..E..BZ202412

BLACK,TRIM0#,2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iMZEA12,ZRE210,ZWE211201909-202412

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02260iMZEA12,ZRE210,ZWE211201909-202412

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046709240

main90467-09240

9167380616

main91673-80616

9356014012

main93560-14012

9356054012

main93560-54012

9356855014

main93568-55014

31 parts on this diagram · 1 diagram in section
