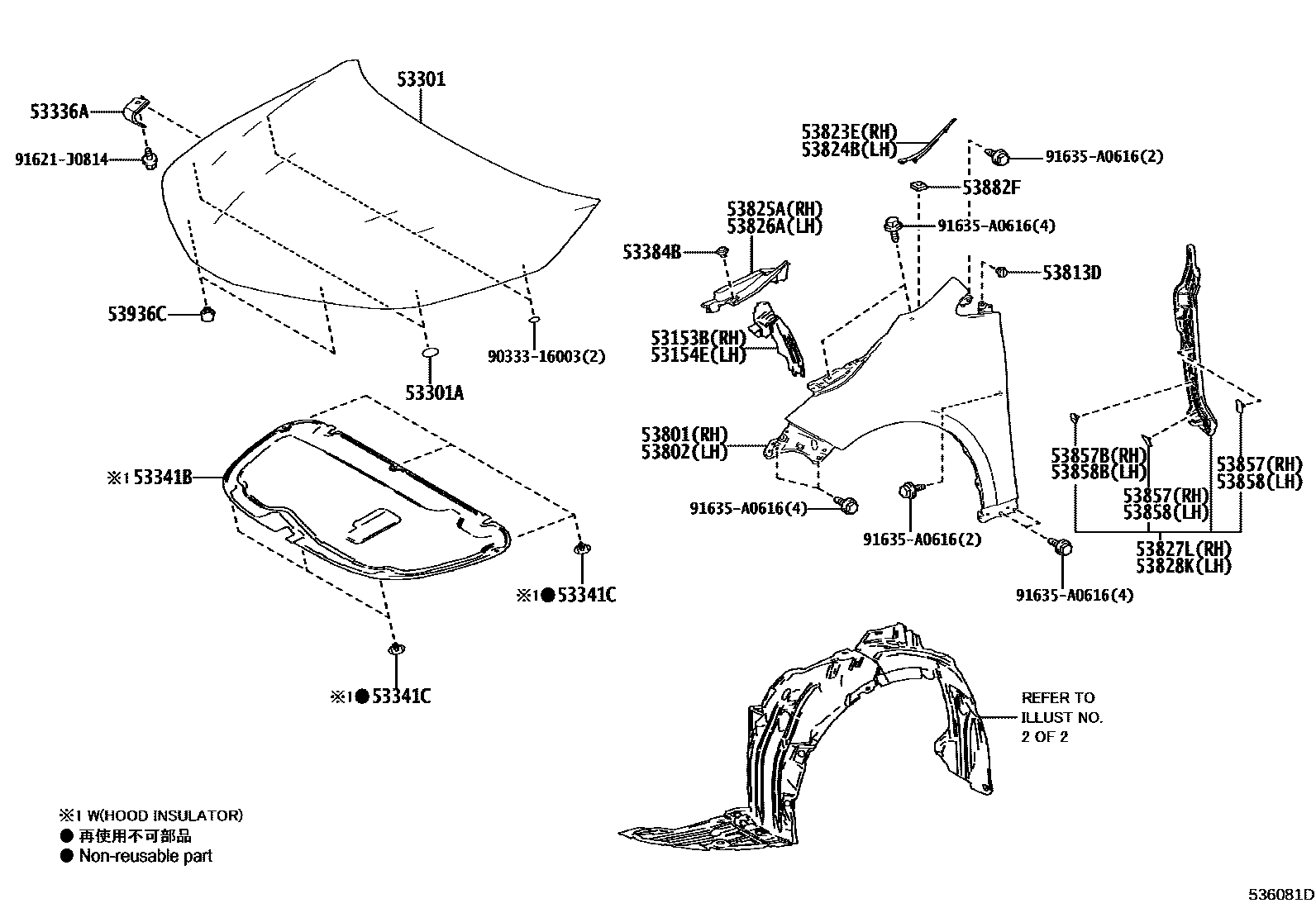

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-02150iMZEA12,ZRE210,ZWE211201909-202412

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02150iMZEA12,ZRE210,ZWE211201909-202412

53301HOOD SUB-ASSY

main53301-02430iMZEA12,ZRE210,ZWE211201909-202309

53301APLUG, HOLE(FOR HOOD)

main90950-06124iMZEA12,ZRE210,ZWE211201909-202412

53336ABRACKET, HOOD STAY

main53336-02080iMZEA12,ZRE210,ZWE211201909-202412

53341BINSULATOR, HOOD

main53341-02440iMZEA12,ZWE211..E..GEN;MZEA12,ZWE211..(E,N)..(AGT,BZ)201909-202412

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMZEA12,ZWE211..E..GEN;MZEA12,ZWE211..(E,N)..(AGT,BZ)201909-202412

53384BCUSHION, HOOD, CENTER

main53384-78010iMZEA12,ZRE210,ZWE211201909-202412

53801FENDER SUB-ASSY, FRONT RH

main53801-02320iMZEA12,ZRE210,ZWE211201909-202412

53802FENDER SUB-ASSY, FRONT LH

main53802-02320iMZEA12,ZRE210,ZWE211201909-202412

53813DEXTENSION, FRONT FENDER

main53813-47040iMZEA12,ZRE210,ZWE211201909-202412

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02240iMZEA12,ZRE210,ZWE211201909-202412

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02240iMZEA12,ZRE210,ZWE211201909-202412

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02250iMZEA12,ZRE210,ZWE211201909-202412

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02250iMZEA12,ZRE210,ZWE211201909-202412

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02300iMZEA12,ZRE210,ZWE211201909-202412

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02300iMZEA12,ZRE210,ZWE211201909-202412

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZEA12,ZRE210,ZWE211201909-202412

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iMZEA12,ZRE210,ZWE211201909-202412

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMZEA12,ZRE210,ZWE211201909-202412

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMZEA12,ZRE210,ZWE211201909-202412

53882FSEAL, FRONT FENDER

main53882-33060iMZEA12,ZRE210,ZWE211201909-202412

53936CCUSHION

main90541-09117iMZEA12,ZRE210,ZWE211201909-202412

9033316003

main90333-16003

91621J0814

main91621-J0814

91635A0616

main91635-A0616

26 parts on this diagram · 2 diagrams in section
