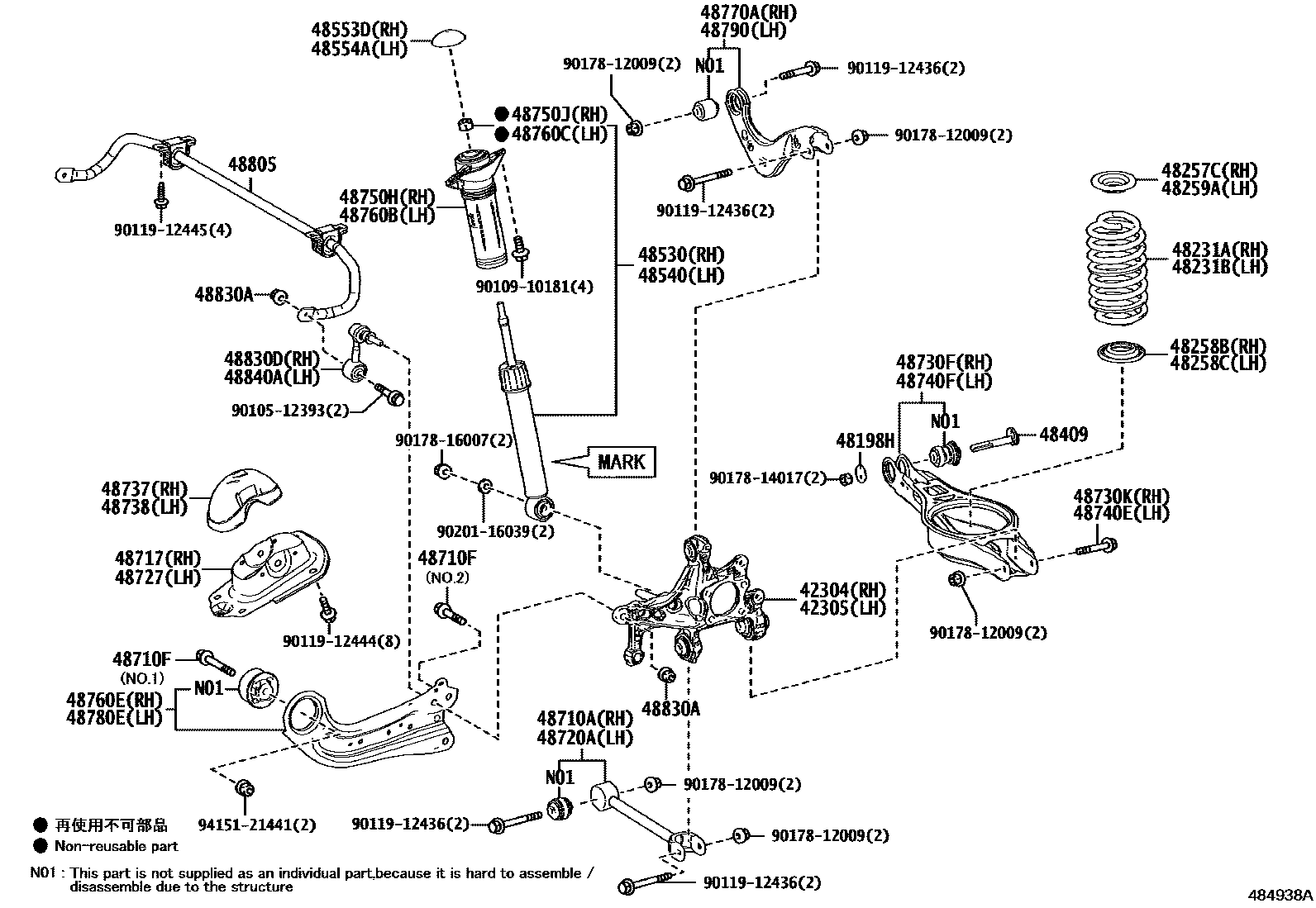

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02330iMZEA12,ZRE210,ZWE211201909-202412

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02330iMZEA12,ZRE210,ZWE211201909-202412

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iMZEA12,ZWE211201909-202412

48231ASPRING, COIL, REAR RH

main48231-02R20iMZEA12..AGT202201-202412

CHILE SPEC

main48231-02R20iMZEA12,ZRE210..AGT,GEN201909-202201

main48231-02R30iMZEA12..E..GEN201909-202309

COLOMBIA SPEC

main48231-02R30iMZEA12..BZ201909-202309

BOLIVIA SPEC

main48231-02R30iMZEA12..BZ201909-202201

ECUADOR SPEC

main48231-02R30iMZEA12,ZRE210..CVT..(BZ,GEN)202309-202412

main48231-02R40iZWE211201909-202412

48231BSPRING, COIL, REAR LH

main48231-02R20iMZEA12..AGT202201-202412

CHILE SPEC

main48231-02R20iMZEA12,ZRE210..AGT,GEN201909-202201

main48231-02R30iMZEA12..E..GEN201909-202309

BOLIVIA SPEC

main48231-02R30iMZEA12..BZ201909-202309

COLOMBIA SPEC

main48231-02R30iMZEA12..BZ201909-202201

ECUADOR SPEC

main48231-02R30iMZEA12,ZRE210..CVT..(BZ,GEN)202309-202412

main48231-02R40iZWE211201909-202412

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02120iMZEA12,ZRE210,ZWE211201909-202412

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-02080iMZEA12,ZRE210,ZWE211201909-202412

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-02080iMZEA12,ZRE210,ZWE211201909-202412

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02120iMZEA12,ZRE210,ZWE211201909-202412

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iMZEA12,ZRE210,ZWE211201909-202412

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z125iZRE210201909-202305

MARK 48530-02R00

sub48530-8Z297

main48530-8Z126iMZEA12..N..GEN201909-202307

MARK 48530-02R10,CHILE SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,COLOMBIA SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,BOLIVIA SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,ECUADOR SPEC

sub48530-8Z298

main48530-8Z127iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)201909-202307

MARK 48530-02R20

sub48530-8Z299

main48530-8Z297iZRE210202305-202412

MARK 48530-02R01

main48530-8Z298iMZEA12,ZWE211..D;MZEA12,ZWE211..N..AGT202307-202412

MARK 48530-02R11,ECUADOR SPEC

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11,CHILE SPEC

main48530-8Z298iMZEA12..N..GEN202307-202308

MARK 48530-02R11,COLOMBIA SPEC

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11,BOLIVIA SPEC

main48530-8Z298iMZEA12,ZWE211..D202412

MARK 48530-02R11,URUGUAY SPEC

main48530-8Z299iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)202307-202412

MARK 48530-02R21

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z125iZRE210201909-202305

MARK 48530-02R00

sub48530-8Z297

main48530-8Z126iMZEA12..CVT..N..GEN201909-202307

MARK 48530-02R10,COLOMBIA SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,CHILE SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,BOLIVIA SPEC

sub48530-8Z298

main48530-8Z126iMZEA12..N..AGT;MZEA12,ZWE211..D;ZWE211..N..(AGT,GEN)201909-202307

MARK 48530-02R10,ECUADOR SPEC

sub48530-8Z298

main48530-8Z127iMZEA12..E..AGT;ZWE211..(E,N)..BZ;ZWE211..E..(AGT,GEN);MZEA12..(E,N)..(BZ,GEN)201909-202307

MARK 48530-02R20

sub48530-8Z299

main48530-8Z297iZRE210202305-202412

MARK 48530-02R01

main48530-8Z298iMZEA12,ZWE211..D;MZEA12,ZWE211..N..AGT202307-202412

MARK 48530-02R11,ECUADOR SPEC

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11,CHILE SPEC

main48530-8Z298iMZEA12..N..GEN202307-202308

MARK 48530-02R11,COLOMBIA SPEC

main48530-8Z298iMZEA12..N..GEN202307-202412

MARK 48530-02R11,BOLIVIA SPEC

main48530-8Z298iMZEA12,ZWE211..D202412

MARK 48530-02R11,URUGUAY SPEC

main48530-8Z299iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)202307-202412

MARK 48530-02R21

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-02020iMZEA12,ZRE210,ZWE211..CVT201909-202412

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-02020iMZEA12,ZRE210,ZWE211201909-202412

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-02110iMZEA12,ZRE210,ZWE211201909-202412

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iMZEA12,ZRE210,ZWE211201909-202412

NO.1:REFER ILLUST.

main90105-14197iMZEA12,ZWE211201909-202412

NO.2:REFER ILLUST.

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-02100iZRE210..6F201909-202412

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-02110iMZEA12,ZRE210,ZWE211..CVT201909-202412

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-02060iMZEA12,ZRE210,ZWE211201909-202412

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-02100iMZEA12,ZRE210,ZWE211201909-202412

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMZEA12,ZRE210,ZWE211..CVT201909-202412

48737COVER, REAR SUSPENSION ARM, RH

main48753-02050iMZEA12,ZRE210,ZWE211..CVT201909-202412

48738COVER, REAR SUSPENSION ARM, LH

main48753-02060iMZEA12,ZRE210,ZWE211..CVT201909-202412

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMZEA12,ZWE211201909-202412

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-02100iMZEA12,ZRE210,ZWE211201909-202412

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02140iMZEA12,ZRE210,ZWE211201909-202412

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iMZEA12,ZRE210,ZWE211201909-202412

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02140iMZEA12,ZRE210,ZWE211201909-202412

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iMZEA12,ZRE210,ZWE211..CVT201909-202412

48760EARM ASSY, TRAILING, REAR RH

main48760-02050iMZEA12,ZRE210,ZWE211201909-202412

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-02030iMZEA12,ZRE210,ZWE211201909-202412

48780EARM ASSY, TRAILING, REAR LH

main48780-02100iMZEA12,ZRE210,ZWE211201909-202412

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-02030iMZEA12,ZRE210,ZWE211201909-202412

48805BAR SUB-ASSY, REAR STABILIZER

main48805-02090iMZEA12,ZWE211..N..GEN201909-202412

CHILE SPEC

main48805-02090iMZEA12..N..AGT;MZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202309

COLOMBIA SPEC

main48805-02090iMZEA12..N..AGT;MZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202412

BOLIVIA SPEC

main48805-02090iMZEA12..N..AGT;MZEA12,ZWE211..D;ZRE210,ZWE211..(D,N)..(AGT,GEN)201909-202412

ECUADOR SPEC

main48805-02090iZRE210..6F202309

main48805-02090iMZEA12,ZWE211..D202412

URUGUAY SPEC

main48805-02100iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)201909-202412

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241iMZEA12,ZWE211201909-202412

48830DLINK ASSY, REAR STABILIZER, RH

main48830-02030iZRE210..6F201909-202412

48840ALINK ASSY, REAR STABILIZER, LH

main48830-02030iMZEA12,ZRE210,ZWE211201909-202412

9010512393

main90105-12393

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

9415121441

main94151-21441

47 parts on this diagram · 1 diagram in section
