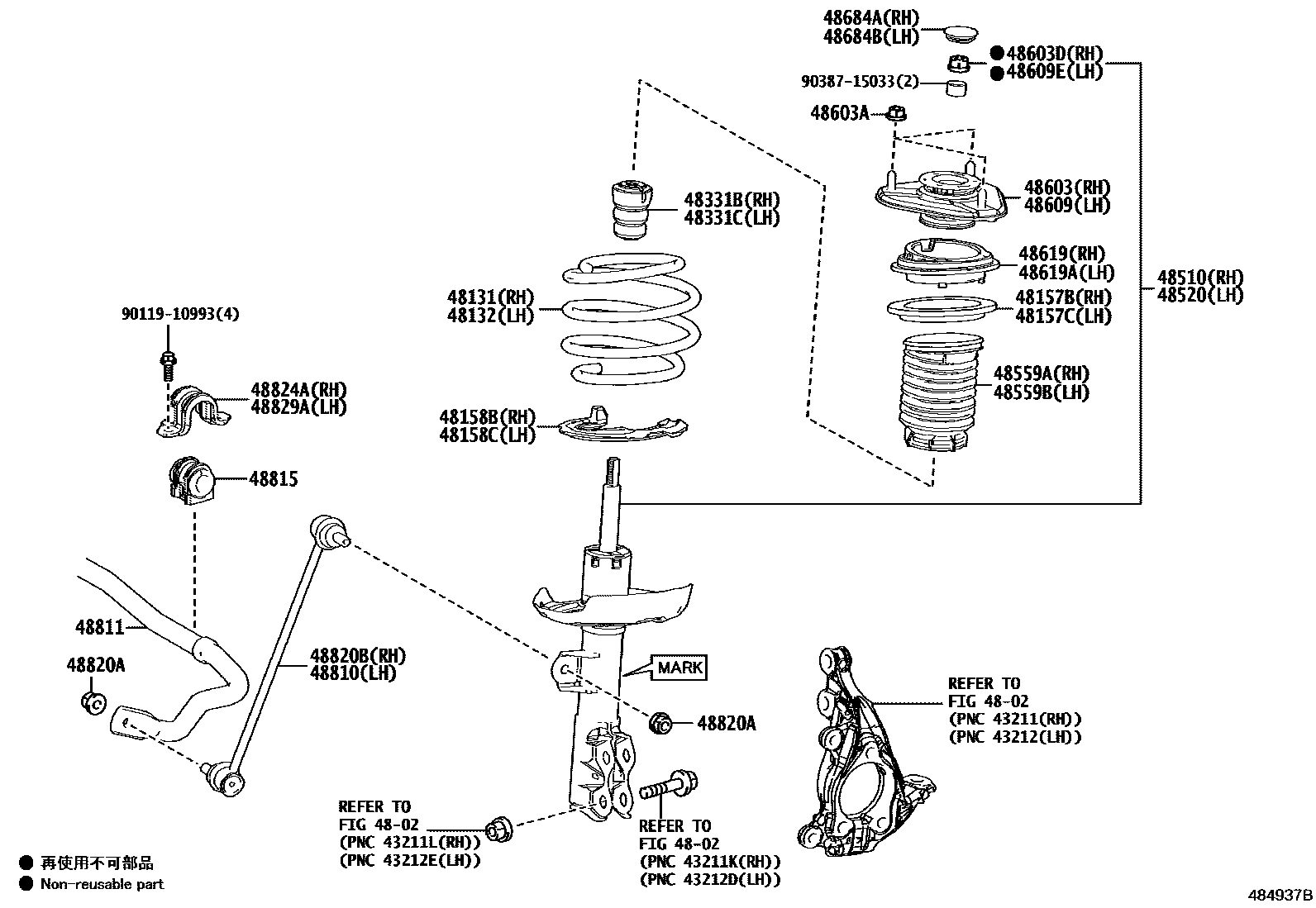

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0Z670iMZEA12..(D,N)..GEN202412

CHILE SPEC

main48131-0Z680iMZEA12..CVT..GEN201909-202201

ECUADOR SPEC

main48131-0Z690iMZEA12..6F..AGT202201-202309

CHILE SPEC

main48131-0ZC10iZRE210..6F202309

48132SPRING, FRONT COIL, LH

main48131-0Z670iMZEA12..CVT..(AGT,GEN)201909-202201

main48131-0Z680iMZEA12..CVT..GEN201909-202201

ECUADOR SPEC

main48131-0Z690iMZEA12..6F..GEN202201-202309

CHILE SPEC

main48131-0ZC10iZRE210..6F202309

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02380iMZEA12,ZRE210,ZWE211201909-202201

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02380iMZEA12,ZWE211202412

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02270iMZEA12,ZWE211202412

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02270iMZEA12,ZRE210,ZWE211202201-202309

48331BBUMPER, FRONT SPRING, RH

main48331-02190iMZEA12..(D,N)..GEN202309-202412

CHILE SPEC

main48331-02200iMZEA12..BZ;ZRE210,ZWE211;MZEA12..(D,N)..GEN202201-202309

BOLIVIA SPEC

48331CBUMPER, FRONT SPRING, LH

main48331-02190iMZEA12,ZRE210..AGT,GEN201909-202201

main48331-02200iMZEA12..E..GEN202201-202309

BOLIVIA SPEC

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z422iZRE210..6F202309

MARK 48510-02S50

main48510-8Z423iMZEA12..N..GEN201909-202201

MARK 48510-02S60

main48510-8Z424iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)202201-202309

MARK 48510-02S70

main48510-8Z487iMZEA12..N..AGT202412

MARK 48510-02S80,URUGUAY SPEC&GR SPORT

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z276iZRE210..6F202309

MARK 48520-02S50

main48520-8Z277iMZEA12..N..GEN201909-202201

MARK 48520-02S60,BOLIVIA SPEC

main48520-8Z278iMZEA12,ZWE211..E..AGT;MZEA12,ZWE211..(E,N)..(BZ,GEN)202201-202309

MARK 48520-02S70

main48520-8Z331iMZEA12..N..GEN202309-202412

MARK 48520-02S80,CHILE SPEC&GR SPORT

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-F4020iMZEA12,ZRE210,ZWE211202201-202309

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-F4020iMZEA12,ZRE210,ZWE211202201-202309

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-F4020iMZEA12,ZRE210,ZWE211201909-202201

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029×6iZRE210..6F202309

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iZRE210..6F202309

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-F4020iZRE210..6F202309

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iMZEA12,ZRE210,ZWE211202201-202309

48619BEARING, STRUT MOUNTING, RH

main48619-F4010iZRE210..6F202309

48619ABEARING, STRUT MOUNTING, LH

main48619-F4010iMZEA12,ZRE210,ZWE211202201-202309

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iMZEA12,ZRE210,ZWE211202201-202309

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iMZEA12,ZRE210,ZWE211202201-202309

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02130iMZEA12,ZRE210,ZWE211202201-202309

48811BAR, STABILIZER, FRONT

main48811-02470iMZEA12..N..GEN201909-202201

CHILE SPEC

main48811-02480iMZEA12..E..AGT;ZWE211..(E,N)..BZ;ZWE211..E..(AGT,GEN);MZEA12..(E,N)..(BZ,GEN)201909-202201

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02460×2iMZEA12..N..GEN201909-202201

CHILE SPEC

main48815-02470×2iMZEA12..N..AGT202412

CHILE SPEC&GR SPORT

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iMZEA12,ZRE210,ZWE211202201-202309

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02130iMZEA12,ZRE210,ZWE211202201-202309

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-47020iMZEA12,ZWE211202412

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-47020iMZEA12,ZRE210,ZWE211201909-202201

9011910993

main90119-10993

9038715033

main90387-15033

31 parts on this diagram · 1 diagram in section
