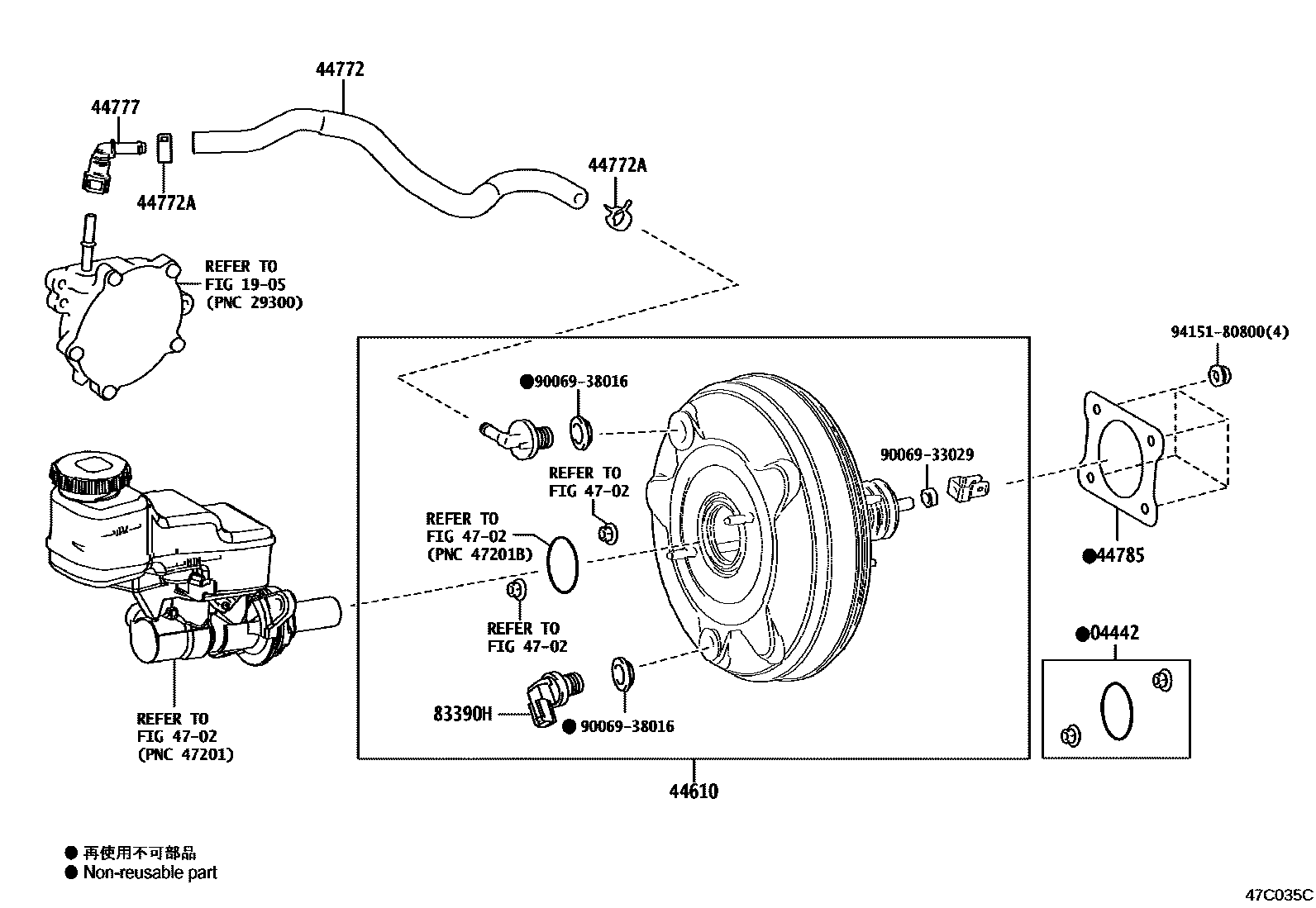

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04442FITTING KIT, BRAKE BOOSTER

main04442-0D030iMZEA12,ZRE210202201-202205

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-09G60iMZEA12,ZRE210201909-202201

main44610-09J60iZRE210..6F202309

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12780iMZEA12202412

main44772-12860iZRE210..6F202309

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iZRE210..6F202309

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA12201909-202201

44785GASKET, BRAKE BOOSTER

main44785-12040iMZEA12,ZRE210201909-202201

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA12,ZRE210201909-202201

9006933029

main90069-33029

9006938016

main90069-38016

9415180800

main94151-80800

12 parts on this diagram · 4 diagrams in section
